Carlo Gavazzi

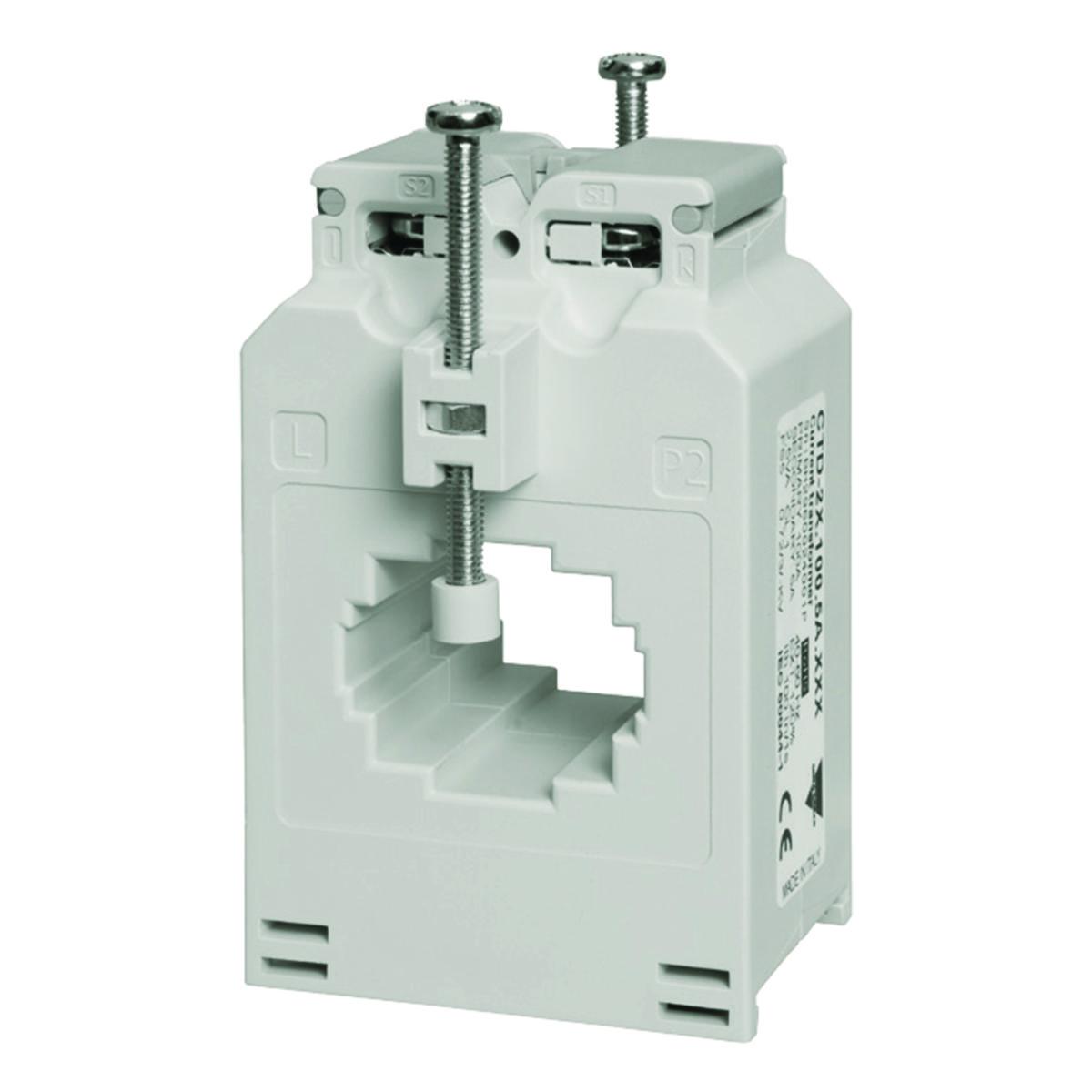

Current transformer CTD2
CURRENT TRANSFORMER 6
Article number: Suppl. article no:
4272512
CTD2X1005AXXX
to see price and stock
CTDs are small compact current transformers for transforming 1-phase current from 50 to 300A primary to 5A secondary. Accuracy is according to Class 0.5. They are adapted for measurement on cable and rail, see below for measurements. Mounting with screw or on DIN rail.
- Article number: 4272512
- Suppl. article no: CTD2X1005AXXX
- Ean no: 8030956039719
- Material class QF4010
Technical data
- Type: CTD2X1005AXXX
- Rated primary current: 100 A
- Rated secondary apparent power: 2.5 VA
- Rated secondary current: 5 A
- Opening diameter: 24 mm
- Number of primary inputs: 2
- With contact protection: Yes
- With copper rail: No
- Model: Through-feed current converter
- Snap mounting: Yes
- Overcurrent limiting factor: FS 5
- REACH Date: 2024-01-29
- REACH Information obligation: No
