TE Connectivity/Raychem

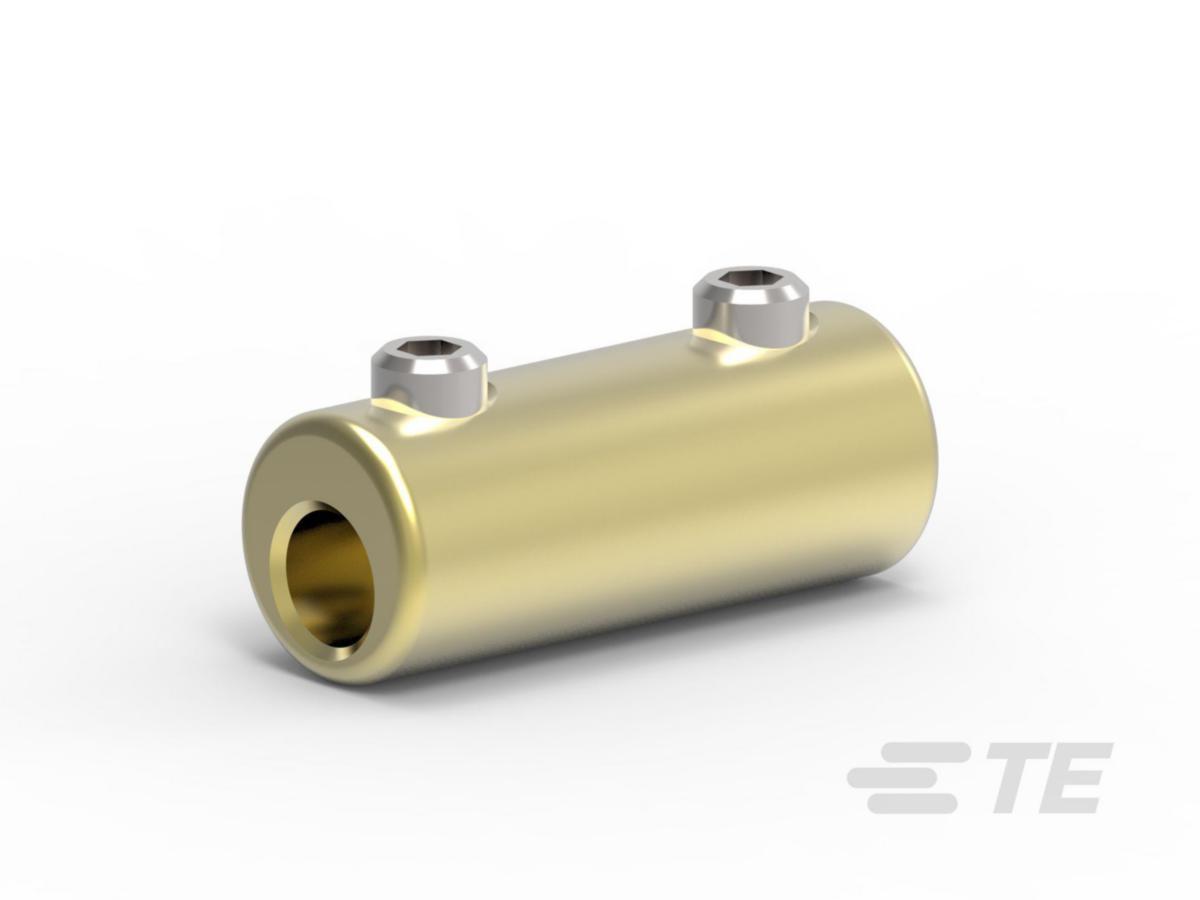

Screw sleeve with screw technology, 1kV
MECHANICAL CONNECTOR
Article number: Suppl. article no:
0836950
CU3672-000
to see price and stock
Connecting material with screw technology, 1kV.
- Article number: 0836950
- Suppl. article no: CU3672-000
- Ean no: 4042368981467
- Replaces art.nbr: 0836901
- Material class QB841A
Technical data
- Packagin Size: 1 ST/200 ST/200 ST
- Type: BSLB-4/16
- Nominal cross section aluminium, RE: 4-16 mm²
- Nominal cross section aluminium, RM: 4-16 mm²
- Nominal cross section copper, RE: 4-16 mm²
- Nominal cross section copper, RM: 4-16 mm²
- Voltage level: Other
- Material conductor: Copper
- Number of screws: 2
- Surface protection: Tinned
- With insulation: No
- With soldering hole: No
- Degree of protection (IP): IP00
- Oil stop/centre bar: Yes
