3M
Clamp 314
ELECTRICAL IDC 314-POUCH
Article number: Suppl. article no:
0893054
7100166936
to see price and stock

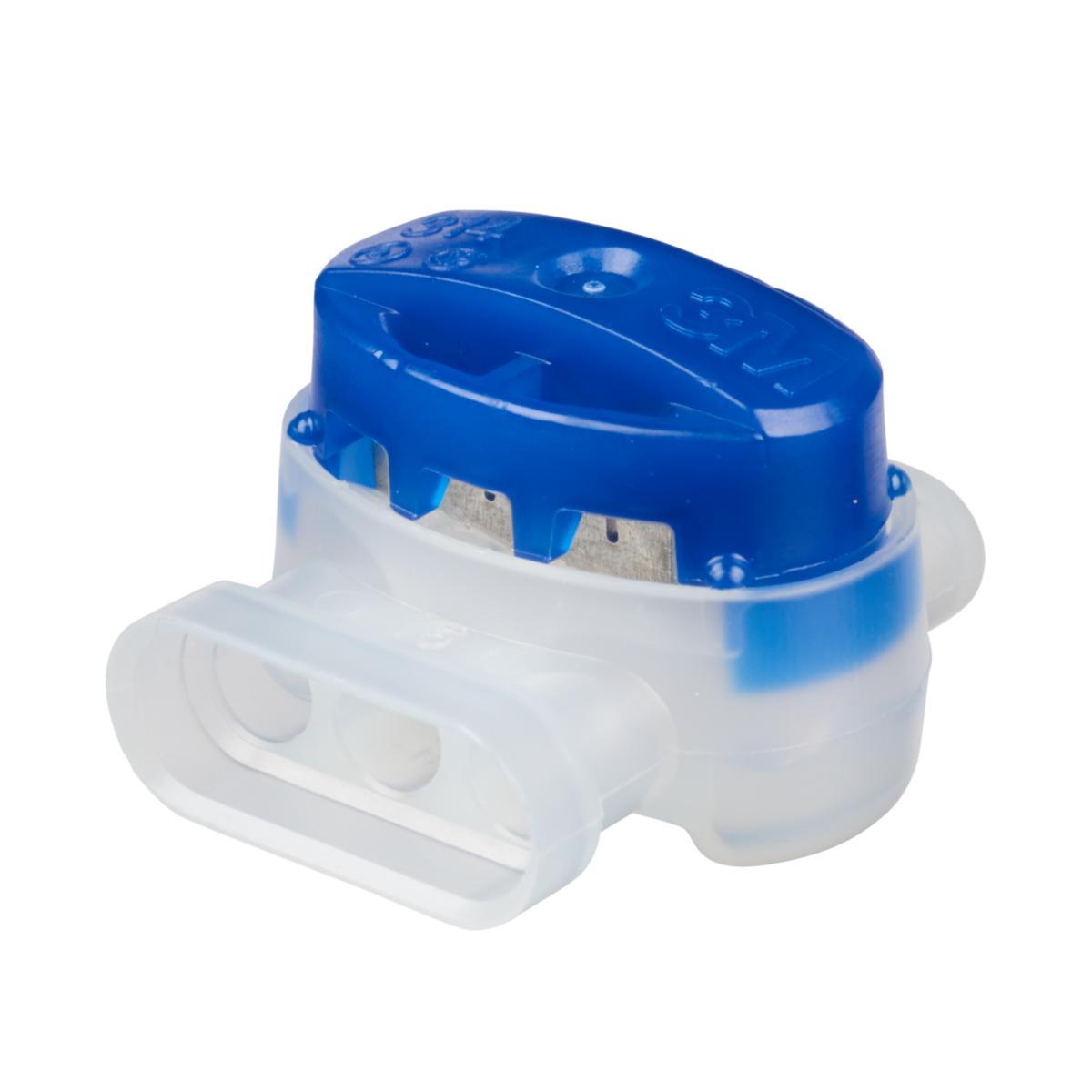

Scotchlok 314 is a moisture-protected clamp that can be used with up to 600 V and takes up 0.5-1.5 mm² or 3.9 mm in diameter on the wire insulation.
Two-three non-stripped wires are inserted into the clamp and the clamp is squeezed onto the blue “button" using pliers, and the wires are connected.
In cartons of 50.
Two-three non-stripped wires are inserted into the clamp and the clamp is squeezed onto the blue “button" using pliers, and the wires are connected.
In cartons of 50.
- Article number: 0893054
- Suppl. article no: 7100166936
- Ean no: 054007092308
- Material class QB8100
Technical data
- Packagin Size: 1 FRP/10 FRP/10 FRP
- Type: 314
- Max. number of cores: 3
- Colour insulation: Blue
- Nominal cross section: 0.5-1.5 mm²
- Max. outer diameter: 6.9 mm
- Interrupt free shifting: No
- Grease filling against corrosion: Yes
- Material insulation: Other
- Temperature: 105 °C
- REACH Date: 2021-07-08
- REACH Information obligation: No
