Elpress

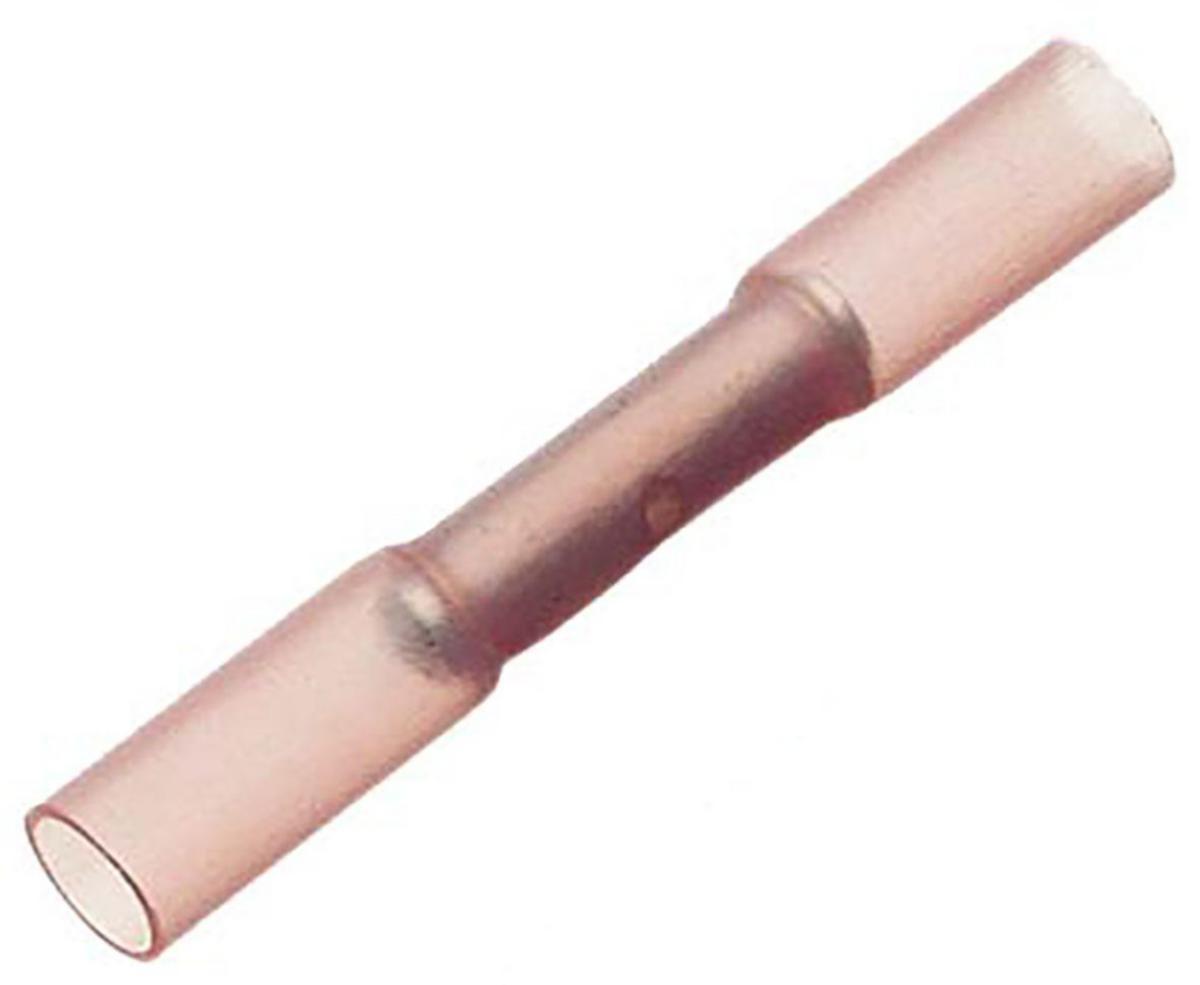

Splice sleeves SKW with hot crimping insulator
THROUGH CONNECTOR HEAT HRINK
Article number: Suppl. article no:
0822522
7288-228500
to see price and stock
Made of tinned copper. Insulation of halogen-free PA with internal adhesive coating.
After contact pressing and heating with heat gun, a liquid-proof connection is obtained that is glued to the cable insulation and the splice sleeve.
After contact pressing and heating with heat gun, a liquid-proof connection is obtained that is glued to the cable insulation and the splice sleeve.
- Article number: 0822522
- Suppl. article no: 7288-228500
- Ean no: 7393487004771
- Material class QB7800
Technical data
- Packagin Size: 25 ST
- Type: A1535SKW
- Nominal cross section: 0.5-1.5 mm²
- Model: Standard version
- Material: Copper
- Surface protection: Tinned
- Sleeve form: Short
- Colour insulation: Red
- For pull protected connections: No
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: No
- Suitable for round conductors: Yes
- Oil stop/centre bar: No
- REACH Date: 2021-06-30
- REACH Information obligation: No
