Elpress

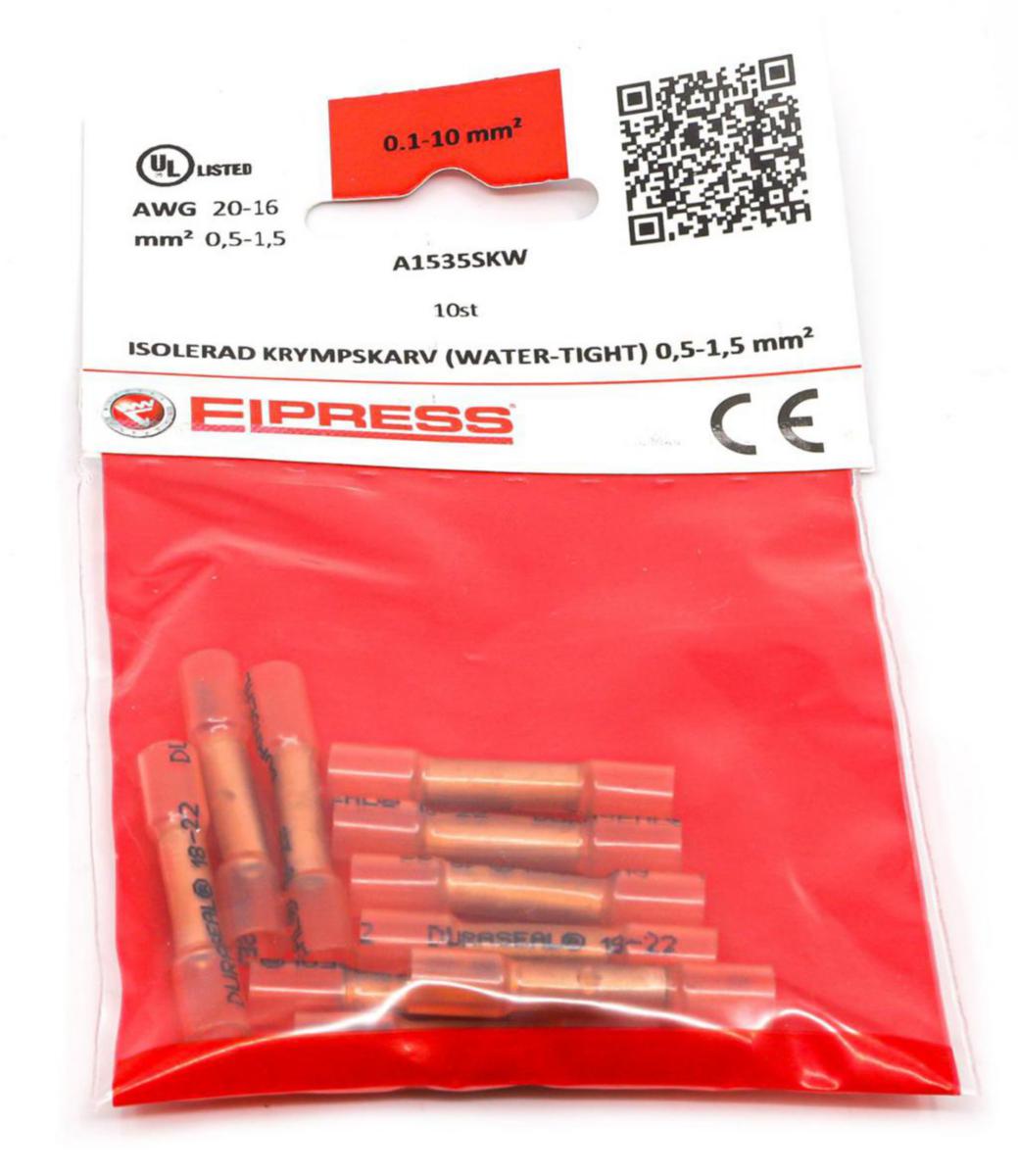

Splice sleeves SKW with heat shrink insulation, consumer FP
CONNECTOR. A1535SKW A1535SKW-CP
Article number: Suppl. article no:
0812438
7288-228503
to see price and stock
Of tinned copper. Insulation of halogen-free PA with internal adhesive coating. After contact pressing and heating with an air gun, a liquid-tight connection is obtained which is glued to the cable insulation and the joint sleeve.
- Article number: 0812438
- Suppl. article no: 7288-228503
- Ean no: 7393487085602
- Material class QB780B
Technical data
- Packagin Size: 1 Pack/10 Pack/10 Pack
- Type: A1535SKW-CP
- Nominal cross section: 0.5-1.5 mm²
- Model: Standard version
- Material: Copper
- Surface protection: Tinned
- Sleeve form: Short
- Colour insulation: Red
- For pull protected connections: No
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: No
- Suitable for round conductors: Yes
- Oil stop/centre bar: No
- REACH Date: 2021-06-30
- REACH Information obligation: No
