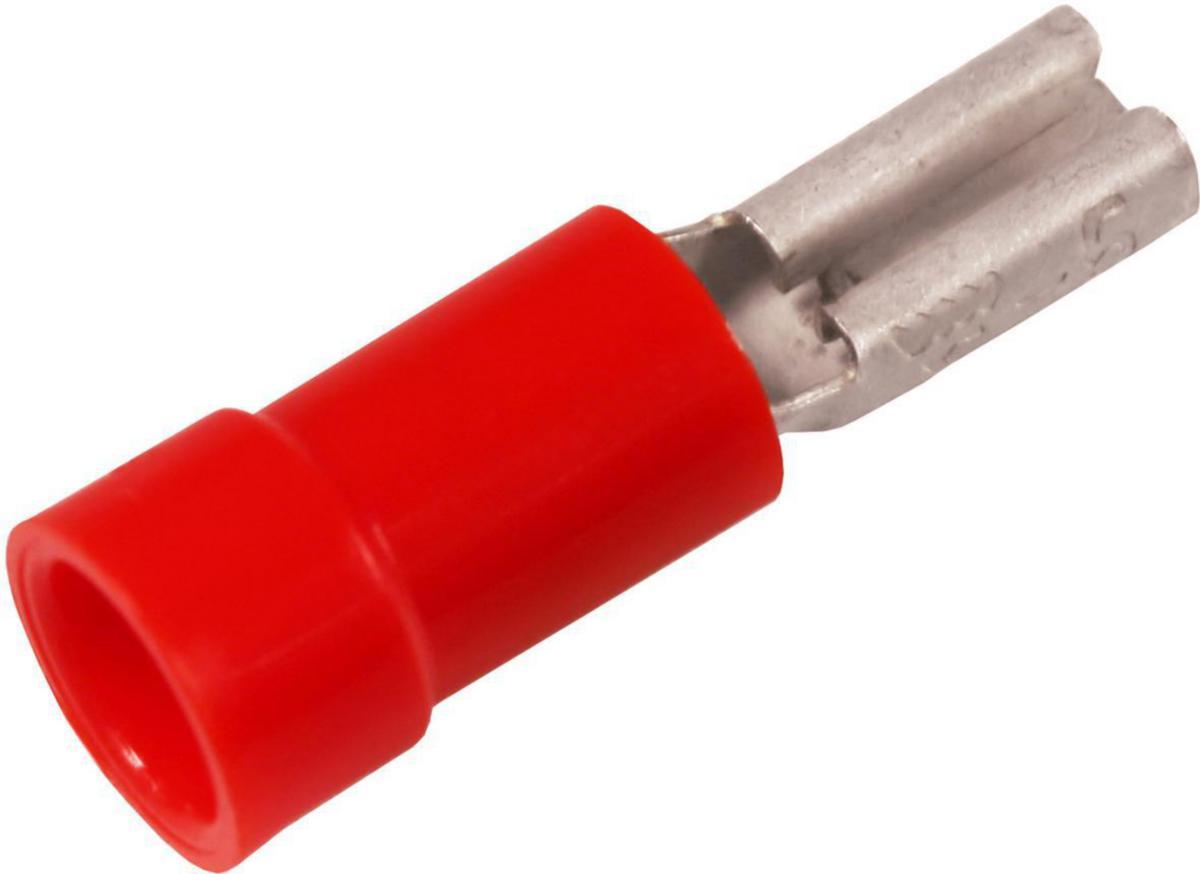

Flat pin sleeves, rolled model - RECEPTACLE A1503FLS8

Elpress

Flat pin sleeves, rolled model

RECEPTACLE A1503FLS8

Article number:

0822307

Suppl. article no:

7463-400200

‌
‌
‌

‌
‌

to see price and stock

Flat pin sleeves, rolled model, of brass. Insulation of PC with “easy-entry".

Article number:
0822307
Copy to clipboard
Suppl. article no:
7463-400200
Copy to clipboard
Ean no:
7393487004917
Copy to clipboard
Material class
QB780B
Copy to clipboard

Technical data

Packagin Size: 100 ST
Type: A1503FLS8
Model: Bushing
Nominal cross section: 0.5-1.5 mm²
Colour insulation: Red
AWG-range: 16-20
Plug dimensions: Flat 2.8x0.8 mm
Insulation: Partially insulated
Material: Brass
Material insulation: Polycarbonate (PC)
Surface protection: Tinned
With cam clamp: No
With tap spreader: No
Halogen free: Yes
REACH Date: 2021-06-30
REACH Information obligation: No
