Elpress

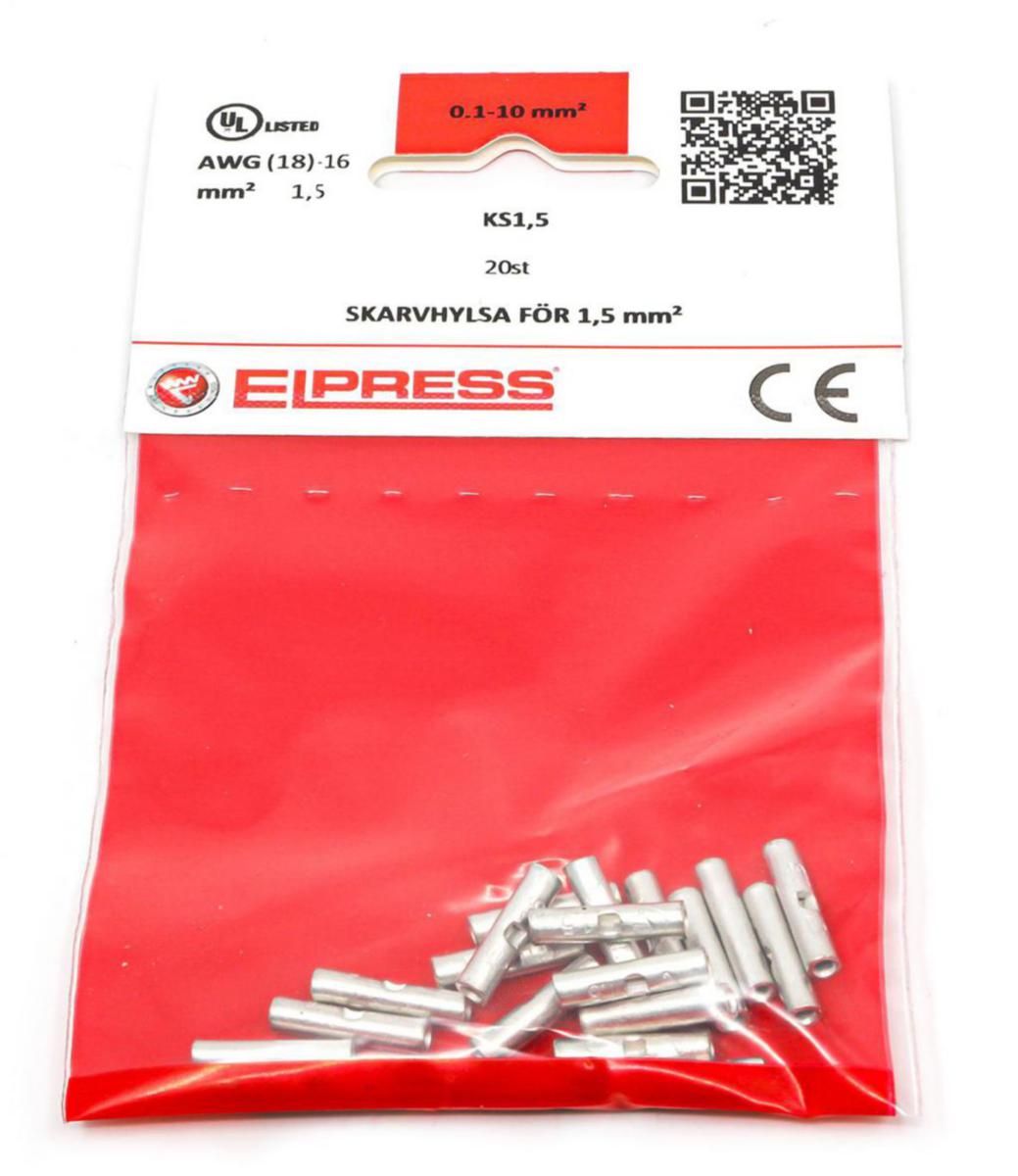

Splice sleeve KS, consumer FP
CU TUBE CONNECTOR KS1.5-CP
Artikelnummer: Lev. artikelnr:
0812470
7303-000303
för att se saldo och pris
Splice sleeve for multi-wire and low-wire copper conductor (according to IEC 60228). Made with an inspection hold and internal cable stop. (99.95% Cu / diluted (Cu / Sn)) [UL APPROVED].
- Article number: 0812470
- Suppl. article no: 7303-000303
- Ean no: 7393487085923
- Material class QB790B
Teknisk data
- Packagin Size: 1 FRP/10 FRP/10 FRP
- Type: KS1,5-CP
- Nominal cross section: 1.5 mm²
- AWG-range: 16-18
- Model: UL model
- Material: Copper
- Surface protection: Tinned
- Sleeve form: Short
- Insulation: None
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- REACH Date: 2021-06-30
- REACH Information obligation: No
