Elpress
Splice sleeves KSF

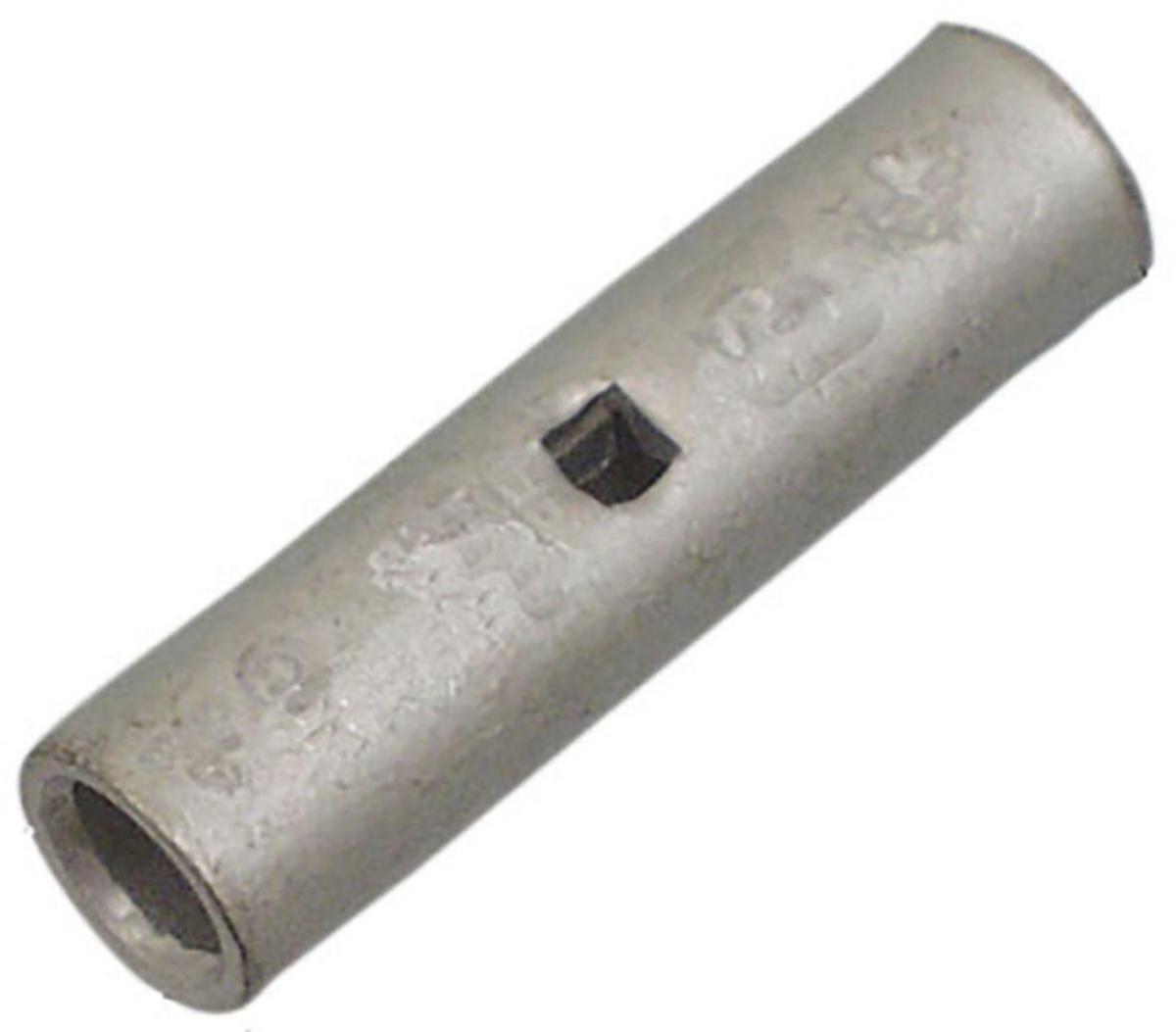

CU CONNECTOR KSF25
Article number: Suppl. article no:
0825216
7303-000900
to see price and stock
Tinned extension sleeves with inspection holes and cable stop for stranded and multi-wire leads.
Recommended tools:
Size-Tool system
KSF16 – KSF95 V600
KSF16 – KSF400 V1300
KSF120 – KSF400 V250
Recommended tools:
Size-Tool system
KSF16 – KSF95 V600
KSF16 – KSF400 V1300
KSF120 – KSF400 V250
- Article number: 0825216
- Suppl. article no: 7303-000900
- Ean no: 7393487007901
- Material class QB7900
Technical data
- Packagin Size: 1 ST/100 ST
- Type: KSF 25
- Nominal cross section: 25 mm²
- AWG-range: 4
- Model: UL model
- Material: Copper
- Surface protection: Tinned
- Sleeve form: Short
- Insulation: None
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- REACH Date: 2021-06-30
- REACH Information obligation: No
