Elpress
Cu-cable lug 35mm² M10 x 2
TERMINAL 2-HOLE 35-10X2
Article number: Suppl. article no:
0812607
7301-477200
to see price and stock

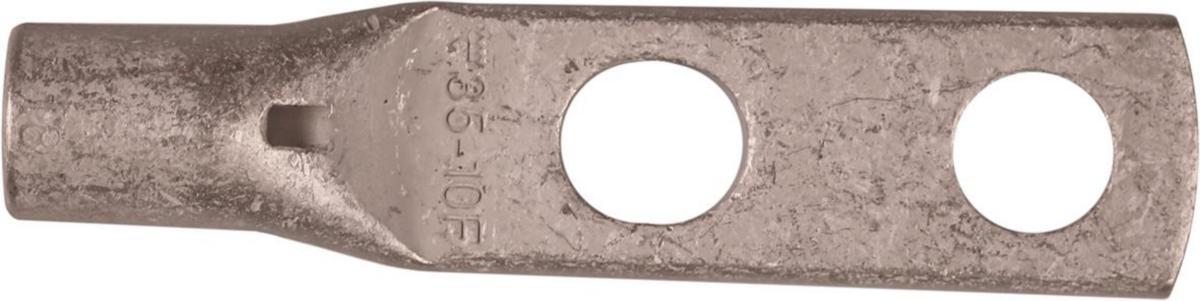

KRF35-10X2-24-26 is a 2-hole tubular cable lug for stranded and stranded 35 mm² copper conductors (according to IEC 60228) with two M10 holes in the plate. KRF35-10X2-24-26 is UL approved. Material; 99.95% Cu / Tinned (Cu/Sn). Recommended tool; V600, V1300.
- Article number: 0812607
- Suppl. article no: 7301-477200
- Ean no: 7393487022041
- Material class QB790B
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: KRF35-10X2-24-26
- Nominal cross section: 35 mm²
- Material: Copper
- With sight-hole: Yes
- Connecting angle: 180° (horizontal)
- Number of mounting holes: 2
- Bolt dimension (metric): 10
- Flange shape: Ring shape
- Slender flange model: No
- Conductor category: Several
- Insulated: No
- Surface protection: Tinned
- AWG size: 1
- REACH Date: 2021-08-19
- REACH Information obligation: No
