AhlsellProductsElectricMains power supply equipment 06-0907 Wiring cabinets and accessoriesShrink tubing
TE Connectivity/Raychem

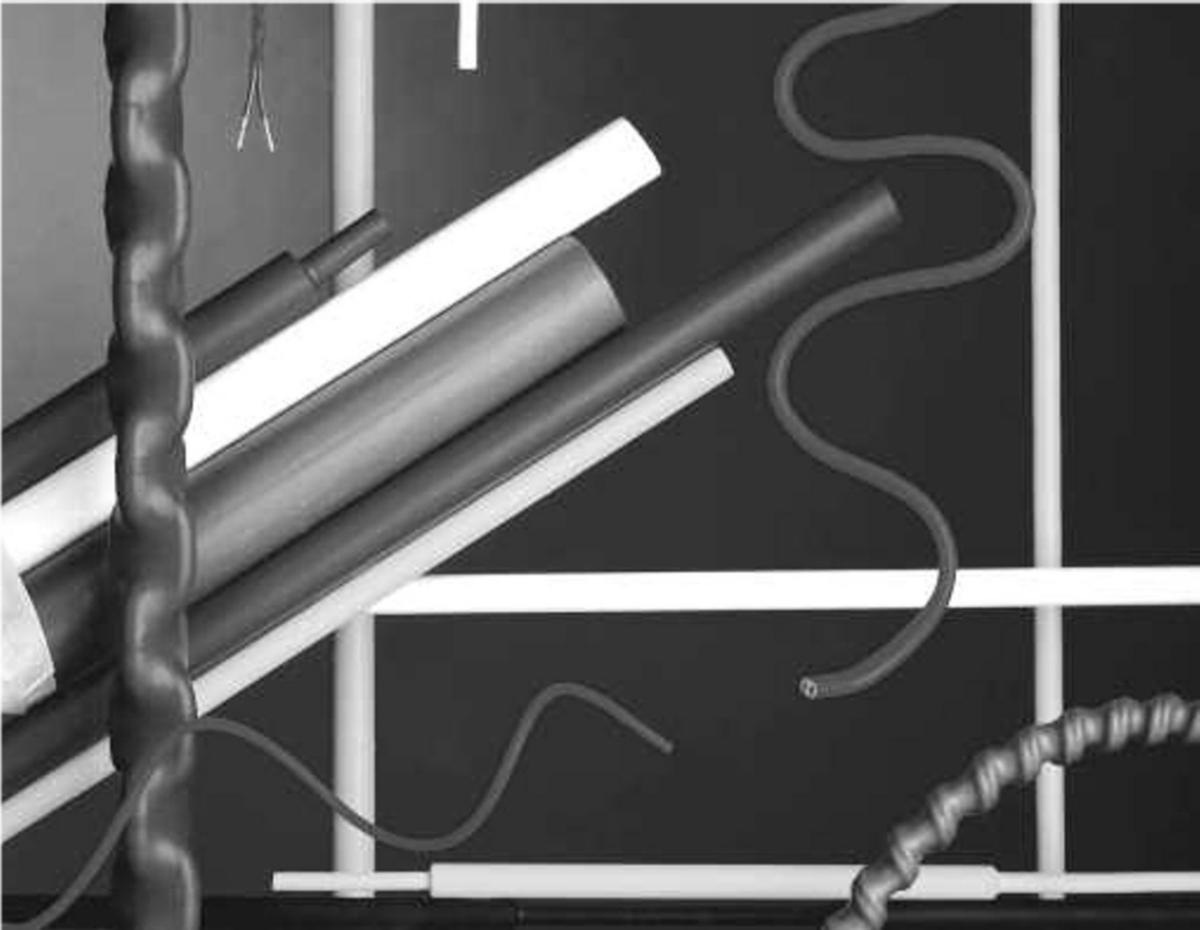

Heat-shrink tube CGPT
HEAT SHRINK TUBE THIN BLACK
Article number: Suppl. article no:
0776108
E22582-000
to see price and stock
Characteristics:Thin-walled shrink tubing without adhesive. Shrinkage ratio 2:1. Low shrinkage temperature 120°C. Temperature range: -40°C to + 135 °C. Standard colour: black.
- Article number: 0776108
- Suppl. article no: E22582-000
- Ean no: 4042368306673
- Material class QB931B
Technical data
- Packagin Size: 1 M/300 M
- Type: CGPT-12.7/6.4
- Inner diameter before heat-shrink: 12.7 mm
- Inner diameter after heat-shrink: 6.4 mm
- Colour: Black
- Shrink rate: 2:1
- Wall thickness after shrinking: 0.65 mm
- Length: 1 m
- UL approval: Yes
- Type: Heat-shrink
- Halogen free: Yes
- Printable: Yes
- Model: Thin-walled
- Material: Crosslinked polyolefin (XLPO)
- With inner glue: No
- Operating temperature: -55-135 °C
