TE Connectivity/Raychem

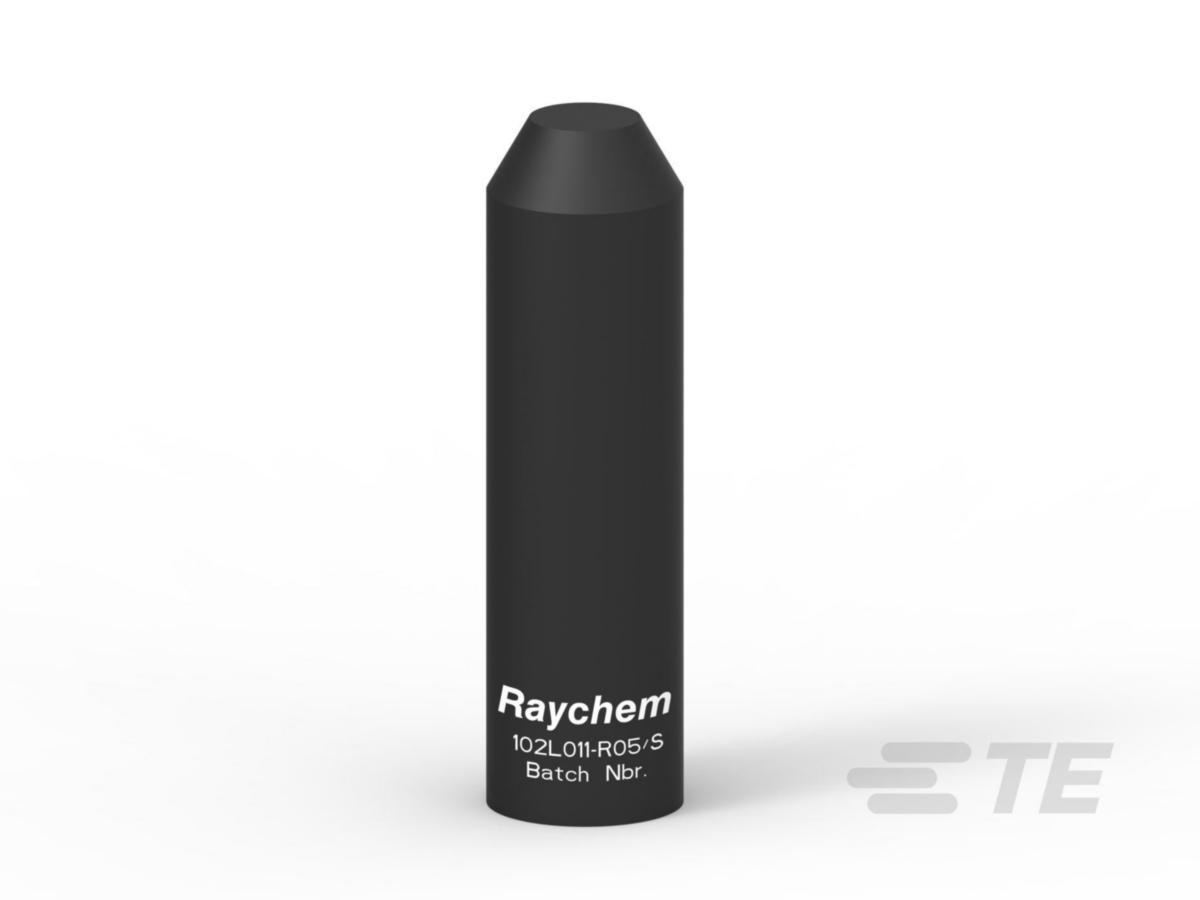

End cap 102L
END CAP
Article number: Suppl. article no:
0776402
381987N001
to see price and stock
Use:For sealing and protection of cable ends.
Standard:Raychem PPS 3011 and 3012.
Design:Made of polyolefin, with medium-thickness wall. The cap is internally coated with adhesive that melts and seals against the cable during shrinking. For paper cables, the caps can handle up to 0.05 mPa internal pressure over the temperature range -30°C to +70°C. For plastic cables, -40°C to +120°C.
Standard:Raychem PPS 3011 and 3012.
Design:Made of polyolefin, with medium-thickness wall. The cap is internally coated with adhesive that melts and seals against the cable during shrinking. For paper cables, the caps can handle up to 0.05 mPa internal pressure over the temperature range -30°C to +70°C. For plastic cables, -40°C to +120°C.
- Article number: 0776402
- Suppl. article no: 381987N001
- Ean no: 4042368552476
- Material class QB931B
Technical data
- Packagin Size: 1 ST/100 ST/200 ST/1000 ST
- Type: Heat-shrink
- Operating temperature: -40-100 °C
- Model: Medium-walled
- Shrink rate: 2:1
- With inner glue: Yes
- Inner diameter before heat-shrink: 10 mm
- Inner diameter after heat-shrink: 4 mm
- Total length after shrink: 38 mm
- Wall thickness after shrinking: 2.8 mm
- Colour: Black
- Printable: Yes
- Material: Crosslinked polyolefin (XLPO)
- Halogen free: Yes
- UL approval: No
- Type: 102L 011
