AhlsellProductsElectricMains power supply equipment 06-0907 Wiring cabinets and accessoriesCable end24 kV
TE Connectivity/Raychem

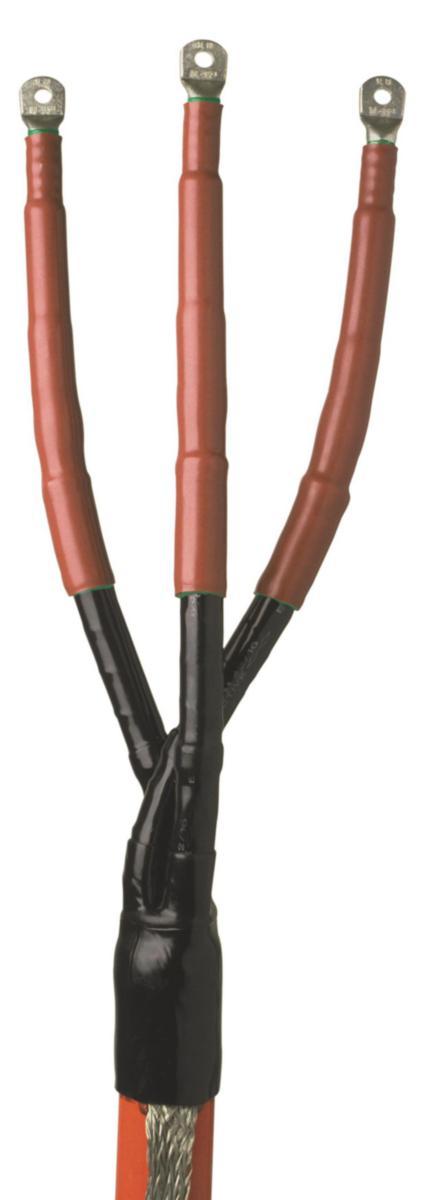

Cable end IXSU-F, 24kV, including screw cable connectors.
INDOOR TERMINATION 24KV
Article number: Suppl. article no:
0706718
CP1779-000
to see price and stock
uses: For connection in spaces where a shielded 1-wire design is required. For compact switchgear, RICS or RCAB should be ordered separately.
Standard: CENELEC HD 629.
Design: The terminations consist of creep resistant hoses prefabricated in one piece with internal field control mass that also serves as a moisture seal.
Also included: copper netting, phase protection hoses, and a branch cover to convert a 3-lead cable to a shielded 1-lead design.
Set contents: The material permits a slack length of 2 metres and the branch can be laid in the ground.
Standard: CENELEC HD 629.
Design: The terminations consist of creep resistant hoses prefabricated in one piece with internal field control mass that also serves as a moisture seal.
Also included: copper netting, phase protection hoses, and a branch cover to convert a 3-lead cable to a shielded 1-lead design.
Set contents: The material permits a slack length of 2 metres and the branch can be laid in the ground.
- Article number: 0706718
- Suppl. article no: CP1779-000
- Ean no: 4042368837313
- Material class QB540A
Technical data
- Nominal cross section: 95-240 mm²
- Number of cores: 3
- Rated voltage U0/U (Um): 12.7/22 (24) kV
- Suitable for outdoor use: No
- Suitable for indoor use: Yes
- Slack length: 2000 mm
- Cable lug included: Yes
- Shape of cable lug: Screw connection
- Insulating material: Plastic
- Type of cable termination: Heat-shrink
- With protective conductor: No
