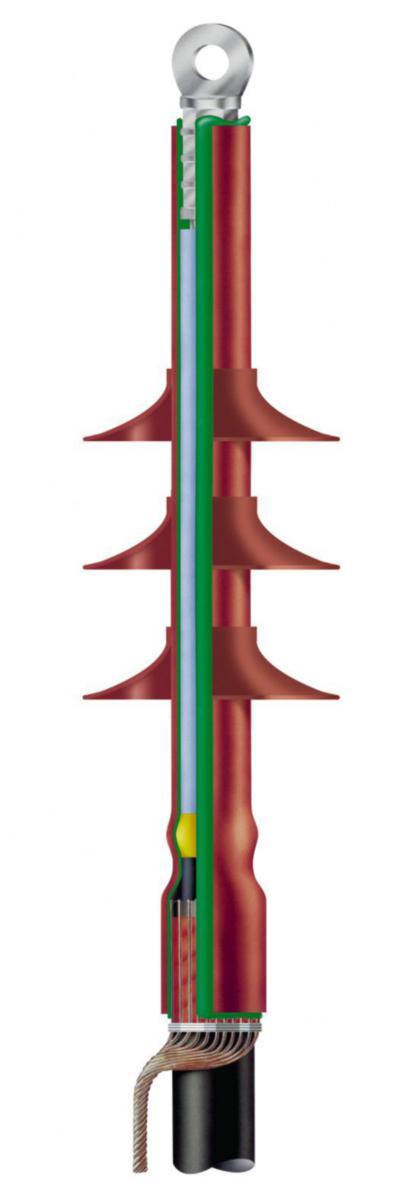

Cable end 24kV, OXSU-F 1-wire
OUTDOOR TERMINATION 24KV
Article number: Suppl. article no:
0706314
332696-000
to see price and stock
Use:OXSU-F for outdoor use. 1-wire.
Standard:CENELEC HD 629.
Design:The terminations are pre-fabricated in one piece. Inside the creep resistant heat-shrink tubing, there is a green layer of field control pulp that also serves as a moisture seal. The field control is zinc-oxide; in working mode, it senses the electrical field, while in idle mode, it insulates.
Set contents:The sets contain material for 3 (three) 1-lead terminations.
With screw cable connectors
Standard:CENELEC HD 629.
Design:The terminations are pre-fabricated in one piece. Inside the creep resistant heat-shrink tubing, there is a green layer of field control pulp that also serves as a moisture seal. The field control is zinc-oxide; in working mode, it senses the electrical field, while in idle mode, it insulates.
Set contents:The sets contain material for 3 (three) 1-lead terminations.
With screw cable connectors
- Article number: 0706314
- Suppl. article no: 332696-000
- Ean no: 4042368533659
- Material class QB540A
- This is an alternative to item 0706478
Technical data
- Packagin Size: 1 ST/5 ST
- Type: OXSU-F5131-M
- Nominal cross section: 95-240 mm²
- Number of cores: 1
- Rated voltage U0/U (Um): 12.7/22 (24) kV
- Suitable for outdoor use: Yes
- Suitable for indoor use: No
- Cable lug included: Yes
- Shape of cable lug: Screw connection
- Insulating material: Plastic
- Type of cable termination: Heat-shrink
- With protective conductor: No
