AhlsellProductsElectricMains power supply equipment 06-0907 Wiring cabinets and accessoriesCable end
Ensto

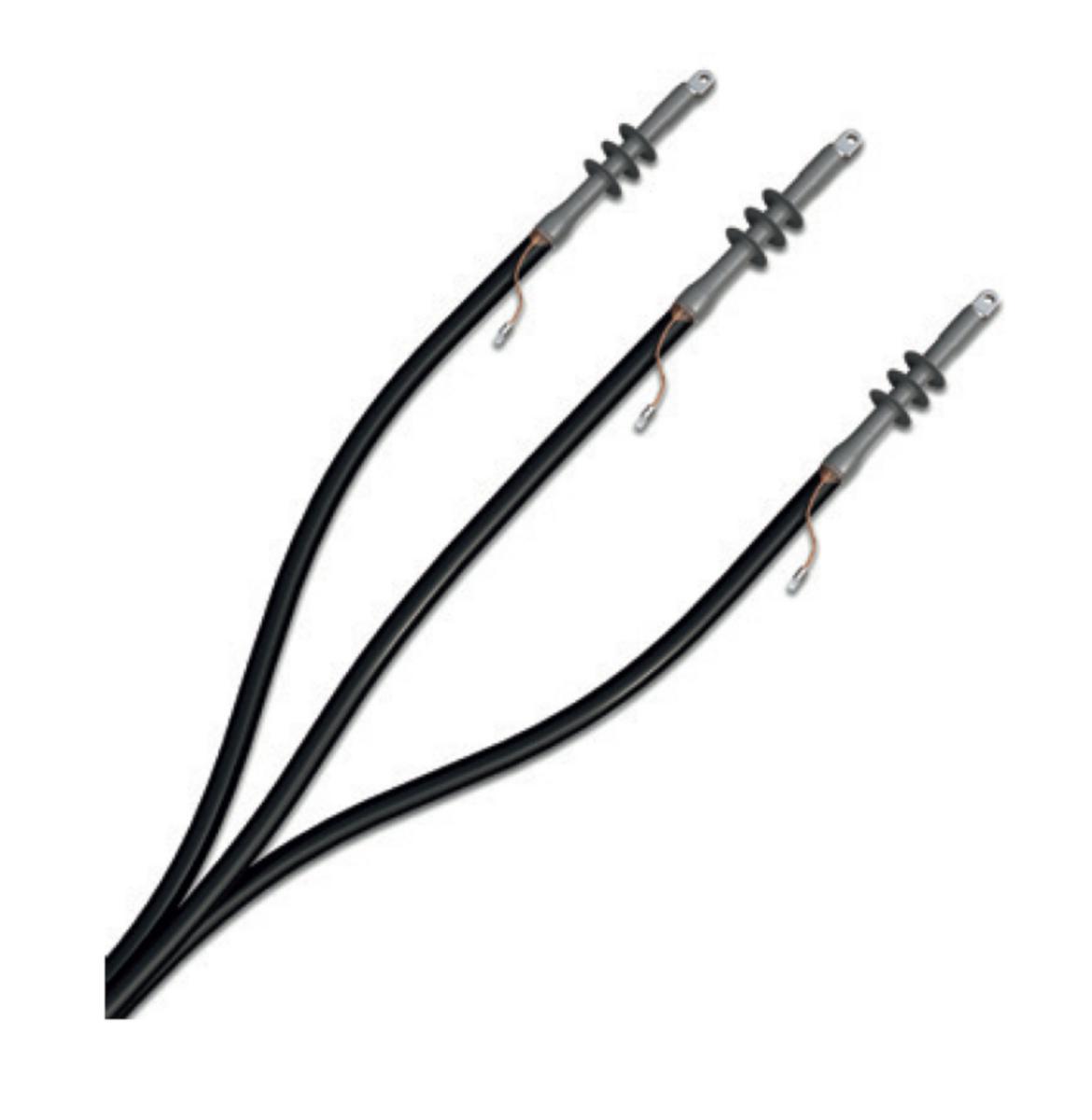

CIT1 indoor termination for PEX insulated 1-lead cable
INDOOR TERMINATION
Article number: Suppl. article no:
0707006
CIT1.2403L
to see price and stock
Cable terminals, indoors, designed for all PEX and plastic insulated 1-wire cables max 24 kV- the kit is for 3 phases.
- Article number: 0707006
- Suppl. article no: CIT1.2403L
- Ean no: 6438100300524
- Material class QB641A
Technical data
- Packagin Size: 1 FRP/9 FRP/63 FRP
- Type: CIT1.2403L
- Design: Flanges/phase: 3 x
- Nominal cross section: 70-240 mm²
- Number of cores: 3
- Rated voltage U0/U (Um): 12.7/22 (24) kV
- Suitable for outdoor use: No
- Suitable for indoor use: Yes
- Cable lug included: Yes
- Shape of cable lug: Screw connection
- Type of cable termination: Cold-shrink
- REACH Date: 2021-12-10
- REACH Information obligation: No
