Ensto

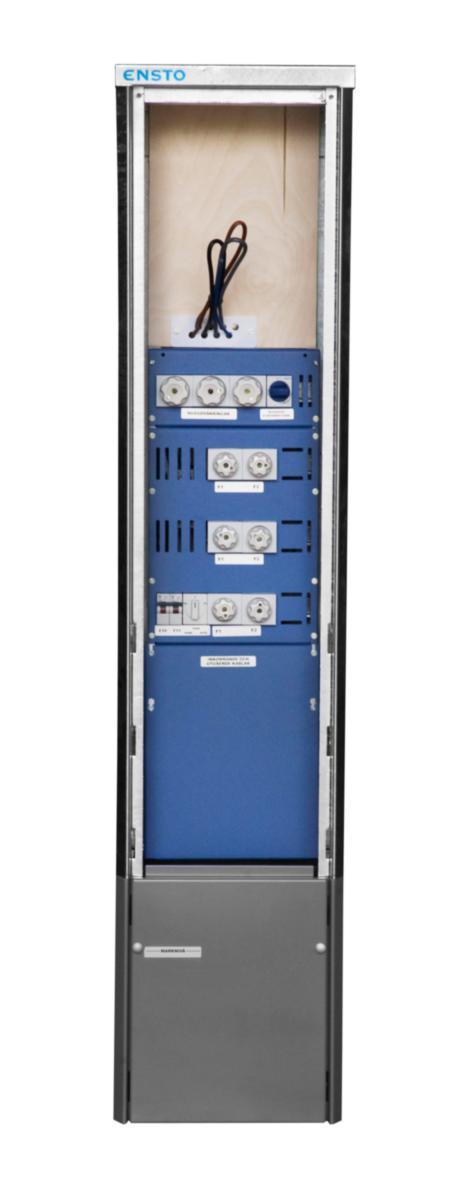

Street lighting cabinet E-GBK
STREET LIGHT CABINET
Article number: Suppl. article no:
0738321
E-GBK63.02
to see price and stock
Cabinet with meter unit, controlled via an external light relay or with external power supply via an auxiliary relay.
Incoming terminal: Al/Cu 2.5-50 mm².
Output terminal block: Cu 1.5-16 mm².
Enclosure class: IP34D.
Incoming terminal: Al/Cu 2.5-50 mm².
Output terminal block: Cu 1.5-16 mm².
Enclosure class: IP34D.
- Article number: 0738321
- Suppl. article no: E-GBK63.02
- Ean no: 6418677433696
- Material class QB751A
Technical data
- Packagin Size: 1 ST/6 ST
- Type: E-GBK 63.02
- Width: 330 mm
- Height: 1250 mm
- Deep: 240 mm
- Weight: 47 kg
- Output: 2xDII
- Incoming: 63 A
