Kabeldon

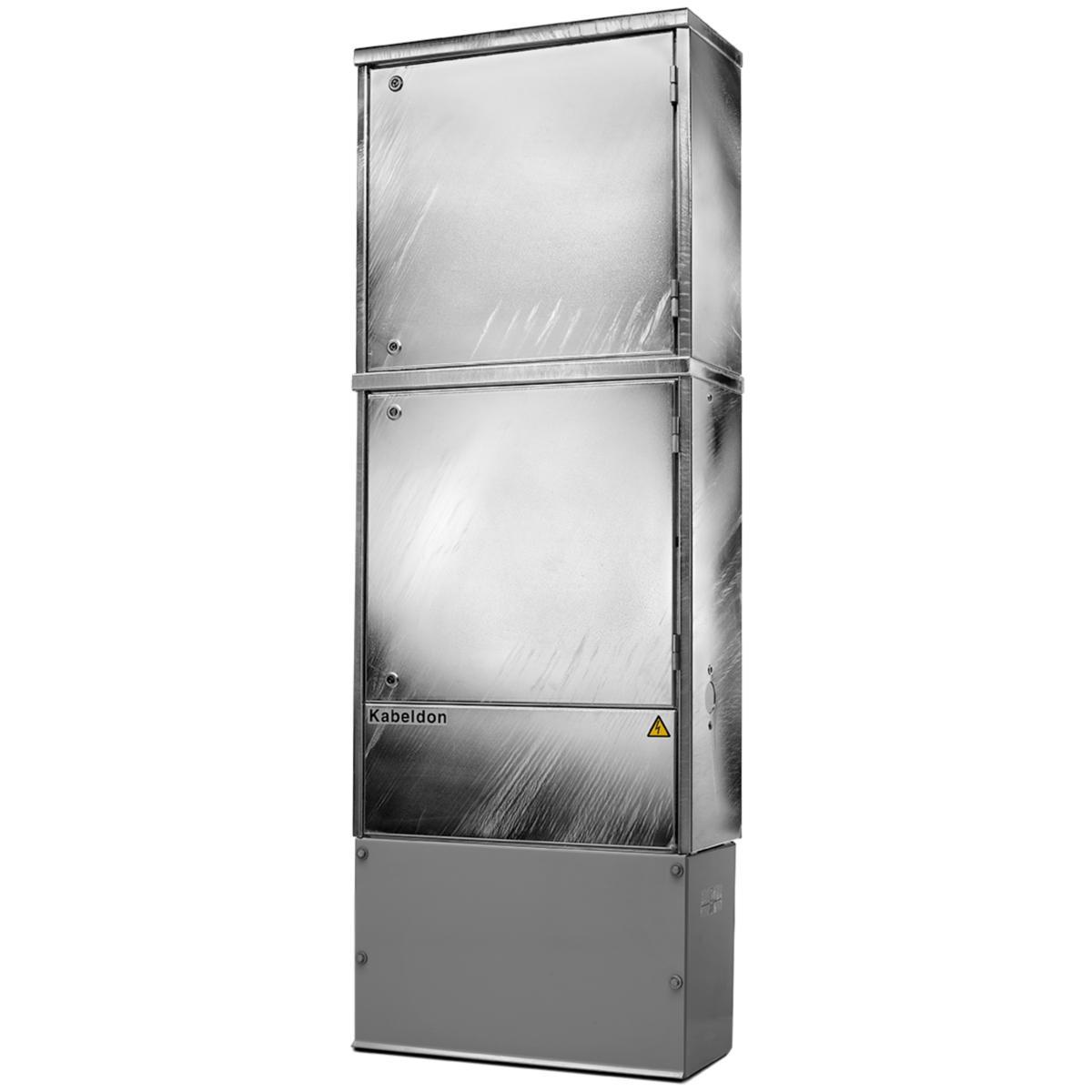

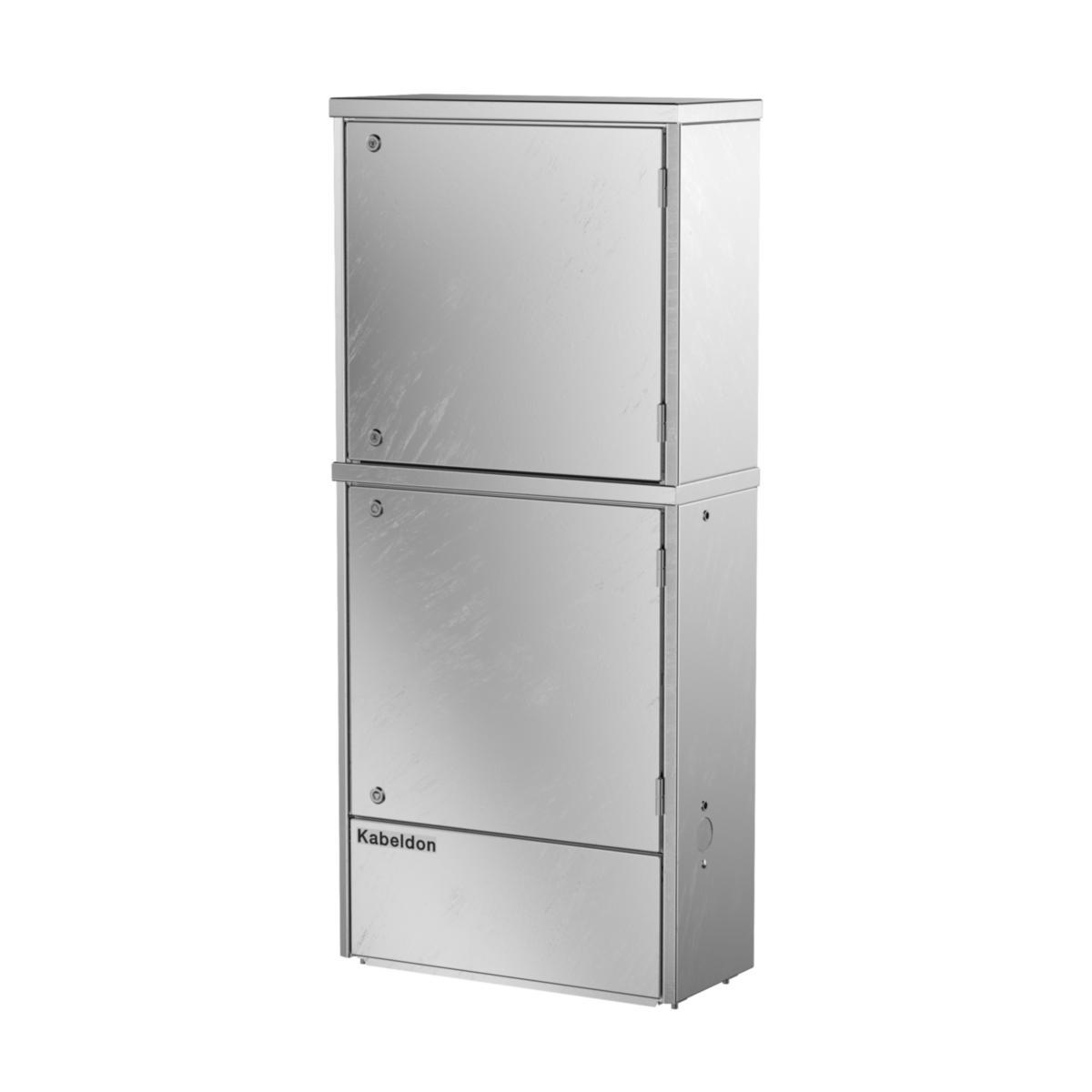

Enclosure SDCM, Cabinet without track system
METERING SERVIS CABINET SDCM 048
Article number: Suppl. article no:
0732281
6330.0443.0
to see price and stock

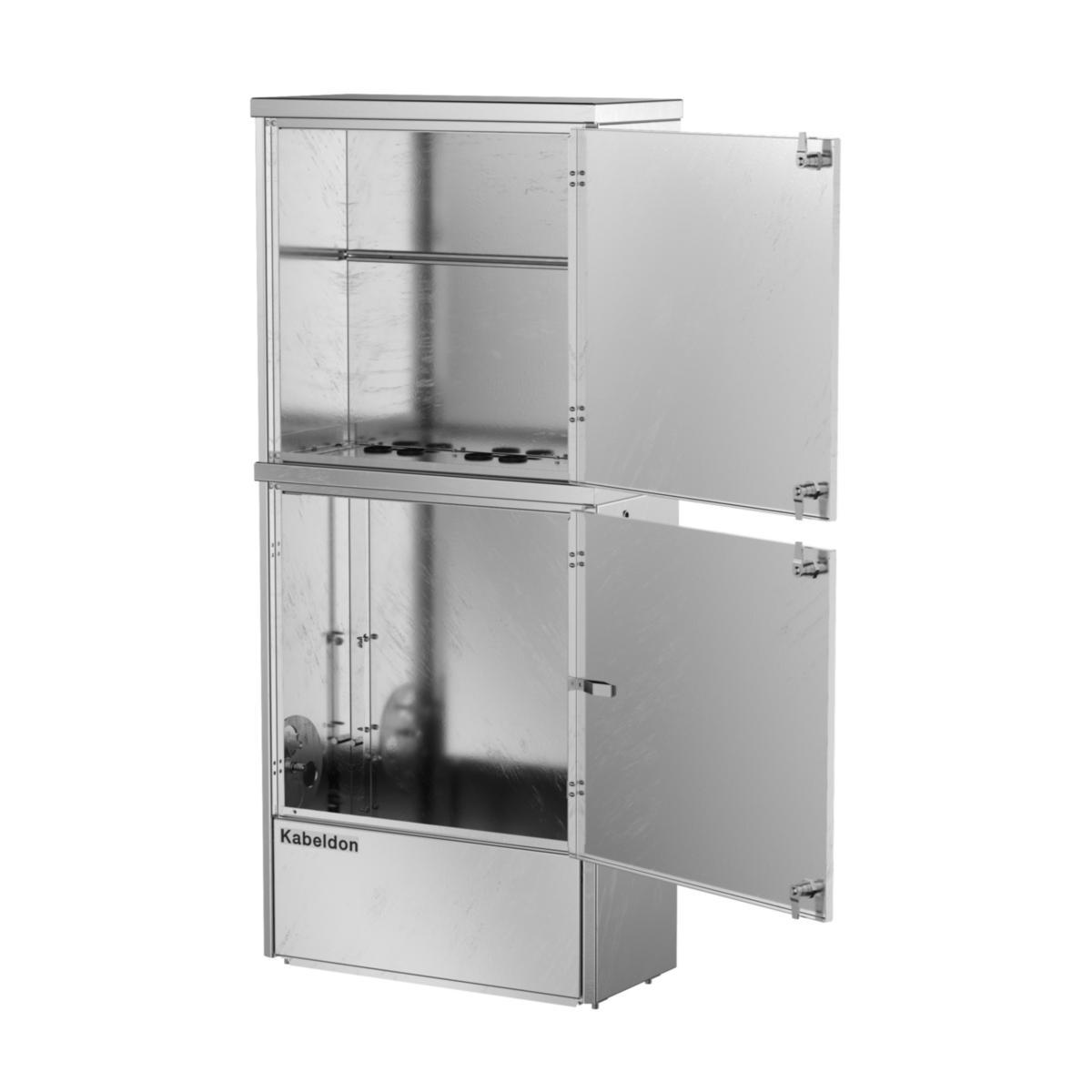

SDCM are equipped with a separate, lockable upper portion. This upper portion can be used as space for a kWh meter, or can be equipped with a mounting plate for various purposes. The SDCM series is suitable for construction of electrical distribution facilities such as service centres, power distribution within industry, temporary electrical service boxes, etc., where the equipment needs to be integrated with kWh measurement.
- Article number: 0732281
- Suppl. article no: 6330.0443.0
- Ean no: 7331980003297
- Material class QB6900
Technical data
- Packagin Size: 1 ST/3 ST
- Type: SDCM 048
- Number of doors: 1
- Number of locks: 1
- Width: 682 mm
- Depth: 312 mm
- Height: 1522 mm
- Couplable: Yes
- Suitable for outdoor set-up: Yes
- Floor standing wall model: No
- Material: Steel
- Surface finishing: Galvanised
- With rear door: No
- With glazed door: No
- With mounting plate: No
- With ventilation door: No
- Degree of protection (IP): IP34
- Pole fastening: No
- Pitched roof: No
- Suitable for wall mounting: Yes
- REACH Date: 2020-01-16
- REACH Information obligation: No
