Kabeldon

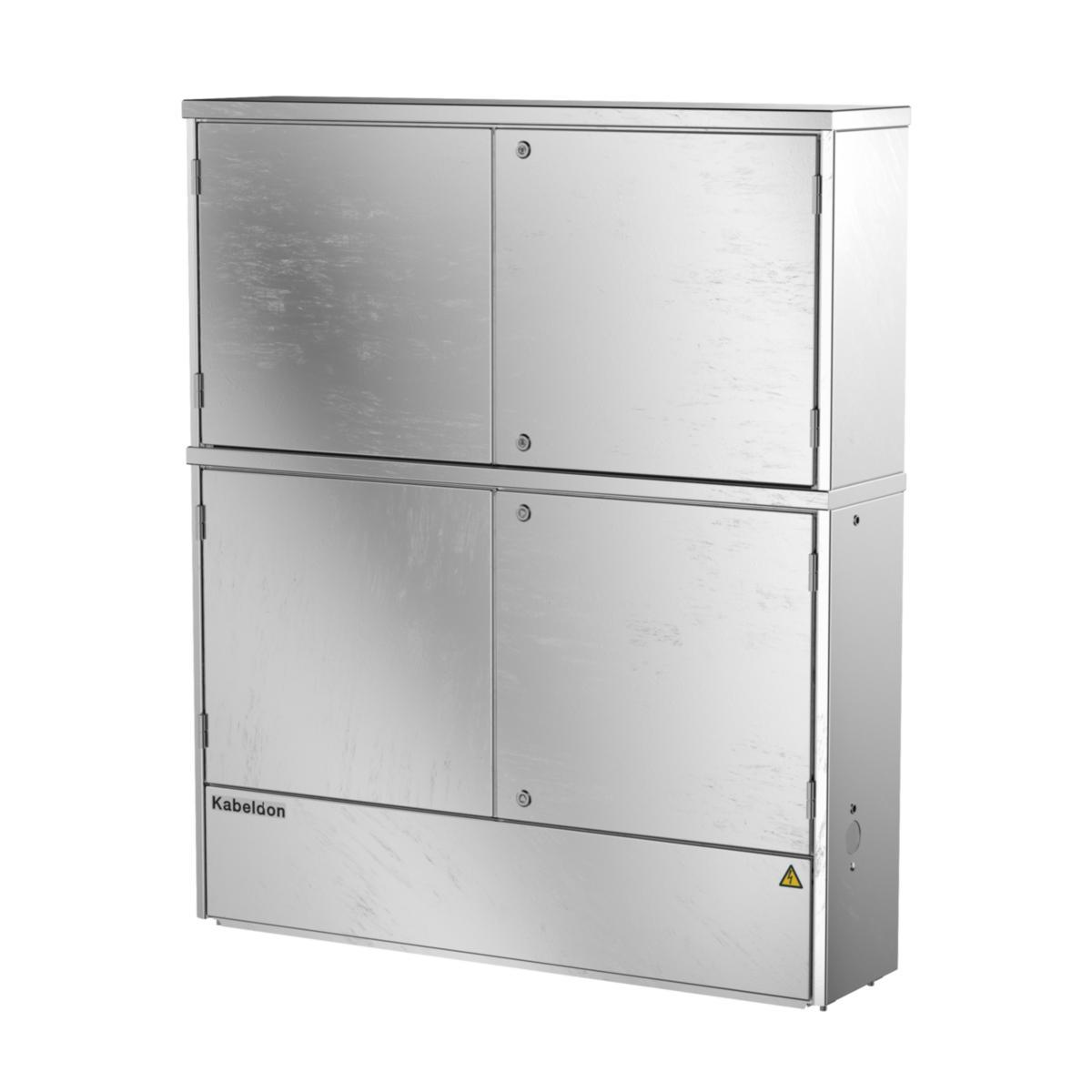

Enclosure SDCM, Cabinet with track system, 630A
METERING SERVIS CABINET SDCM 698
Article number: Suppl. article no:
0732272
6330.0438.0
to see price and stock

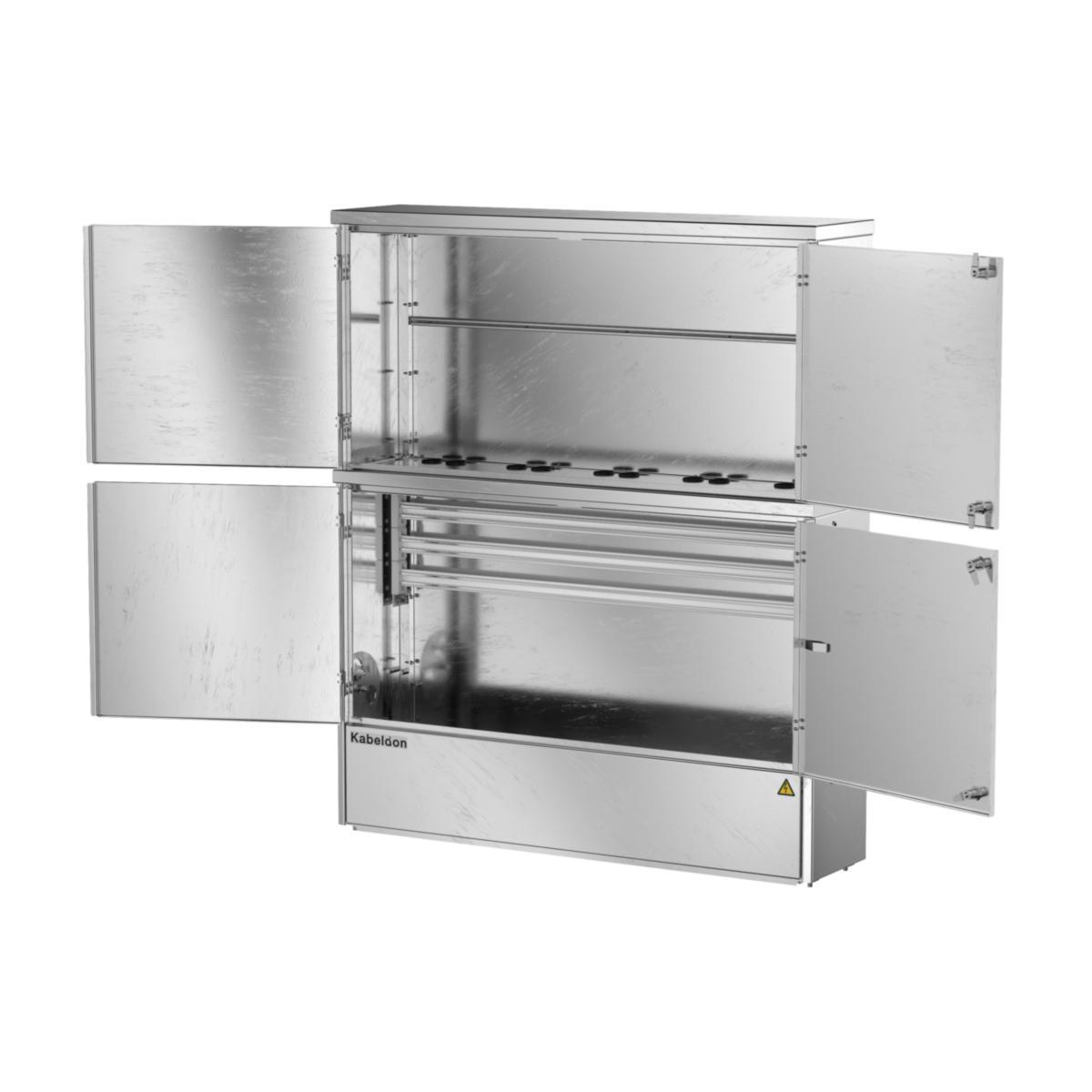

SDCM are equipped with a separate, lockable upper portion. This upper portion can be used as space for a kWh meter, or can be equipped with a mounting plate for various purposes. The SDCM series is suitable for construction of electrical distribution facilities such as service centres, power distribution within industry, temporary electrical service boxes, etc., where the equipment needs to be integrated with kWh measurement.
- Article number: 0732272
- Suppl. article no: 6330.0438.0
- Ean no: 7331980003273
- Material class QB6900
Technical data
- Packagin Size: 1 ST/3 ST/3 ST
- Type: SDCM 698
- Nominal voltage: 400 V
- Nominal current: 630 A
- Colour: Other
- Width: 1310 mm
- Height: 1523 mm
- Depth: 312 mm
- Mounting: Pedestal (in-ground mounting)
- Equipped with busbar: Yes
- Material: Steel
- Surface protection: Galvanised
- Degree of protection (IP) cabinet: IP34
- Number of poles: 4
- Degree of protection (IP) busbar: IP20
- Equipped with connectors: No
- With earthing: No
- With stand (base): No
- With floor plate: No
- With mounting plate: No
- REACH Date: 2020-01-16
- REACH Information obligation: No
