ABB
Cable cabinet NC850

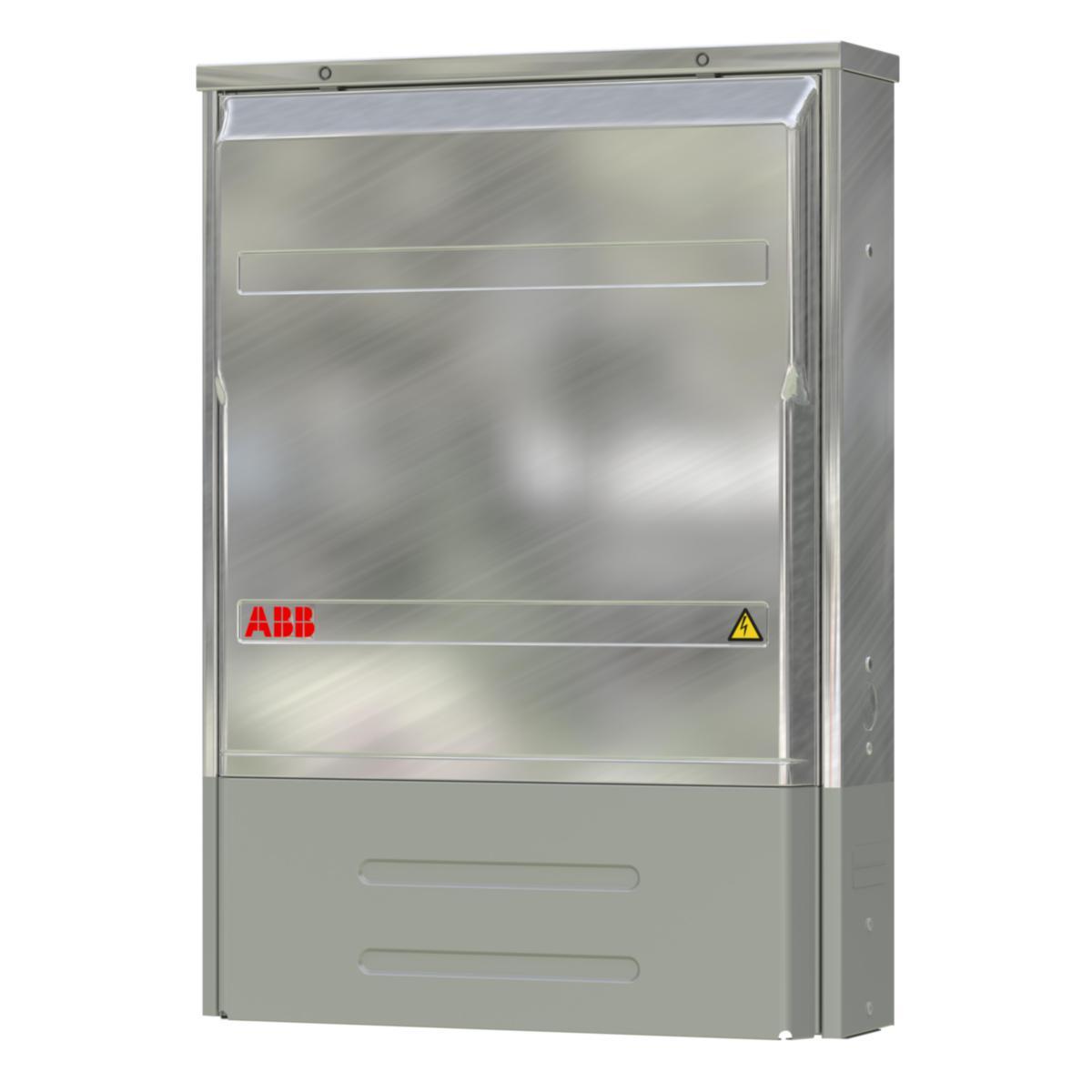

CABLE DISTRIBUTION CABINET NC850-G-SE-Z6
Article number: Suppl. article no:
0731195
2CGD000585A3312
to see price and stock
Integrated ground foundation prepared for the installation of the bottom plate and for the attachment of the VP pipe for the installation of the heating cable. Adjustable legs in both height and angle. The ends are equipped with rivet nuts for attaching e.g. marker bar and accessory cabinet. Holder for cable cabinet card. Embossing on the lid adapted for marking Tested according to SS-EN 61439-5 and meets the requirements for arctic climate SE lock (EBR lock), CDC-LSE.
Supplied without key. Matching key 1646810.
Supplied without key. Matching key 1646810.
- Article number: 0731195
- Suppl. article no: 2CGD000585A3312
- Ean no: 7331980000906
- Material class QB7201
Technical data
- Packagin Size: 1 ST/4 ST/4 ST
- Type: NC850-G-SE-Z6
- Nominal voltage: 400 V
- Nominal current: 630 A
- Colour: Other
- Width: 850 mm
- Height: 1200 mm
- Depth: 260 mm
- Mounting: Pedestal (in-ground mounting)
- Equipped with busbar: Yes
- Material: Steel
- Surface protection: Galvanised
- Degree of protection (IP) cabinet: IP34
- Number of poles: 4
- Equipped with connectors: No
- With earthing: No
- With stand (base): Yes
- With floor plate: No
- With mounting plate: No
- REACH Date: 2020-01-16
- REACH Information obligation: No
