3M™

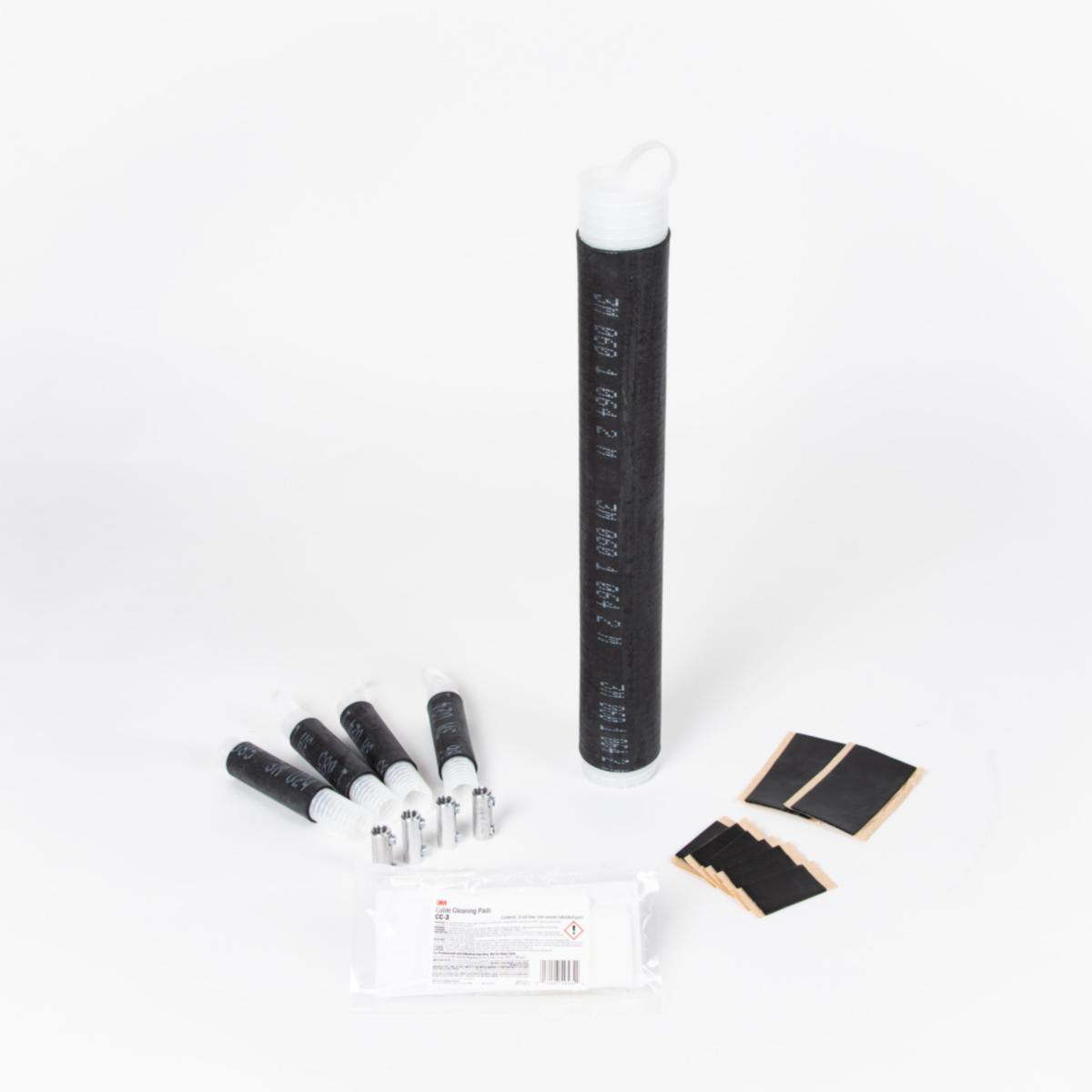

Cold shrink kit EPDM 1kV, 4-conductor

3M™ Cold Shrink EPDM Insulatio EPDM, 91-AC 35-4 MC
Article number:
0714342
Suppl. article no:
7100136625





 to see price and stock
3M™ Cold Shrink Tubing are tubular sleeves with sealing mastic at each end. Once the insulation tubing is placed over a joint, simply pull on one end to unwind the core. Then the ends of the hose shrink together and form a water-resistant seal. Dimensioning of the core, the hose and the sealing mastic gives a wider area of use without the sealing and insulating properties of the EPDM rubber hose being impaired. The specially designed material's memory mechanism provides a permanent and lasting seal and insulation.
  • Article number:
    0714342
  • Suppl. article no:
    7100136625
  • Material class
    QB6240
Technical data
  • Packagin Size: 1 PCS/90 PCS
  • Number of conductors: 4
  • Nominal cross section conductor: 6-35 mm²
  • Rated voltage U0/U (Um): 0.6/1 (1.2) kV
  • Model: Cold-shrink
  • Connection accessories included: Screw connector with shear-off head
  • For connection of paper- with plastic insulated cables: No
  • Insulating material: Plastic
  • REACH Date: 2021-07-08
  • REACH Information obligation: No
