Kabeldon

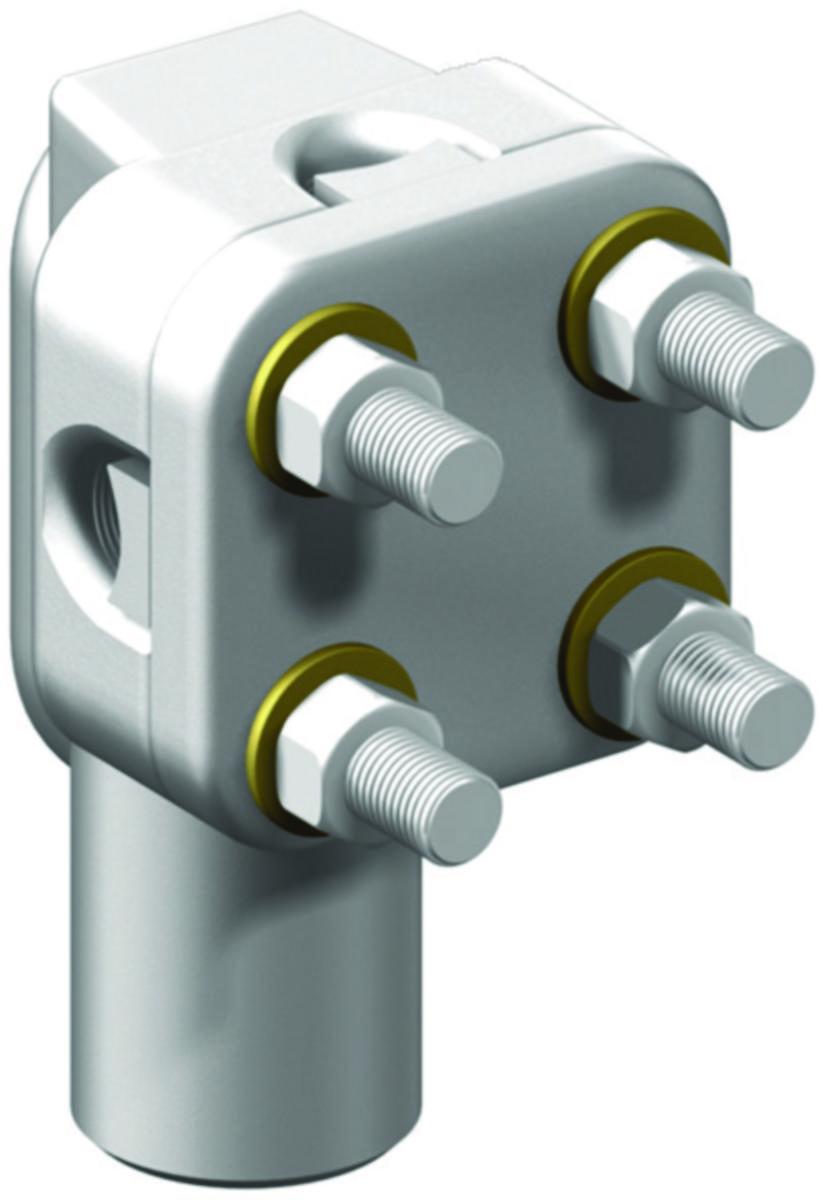

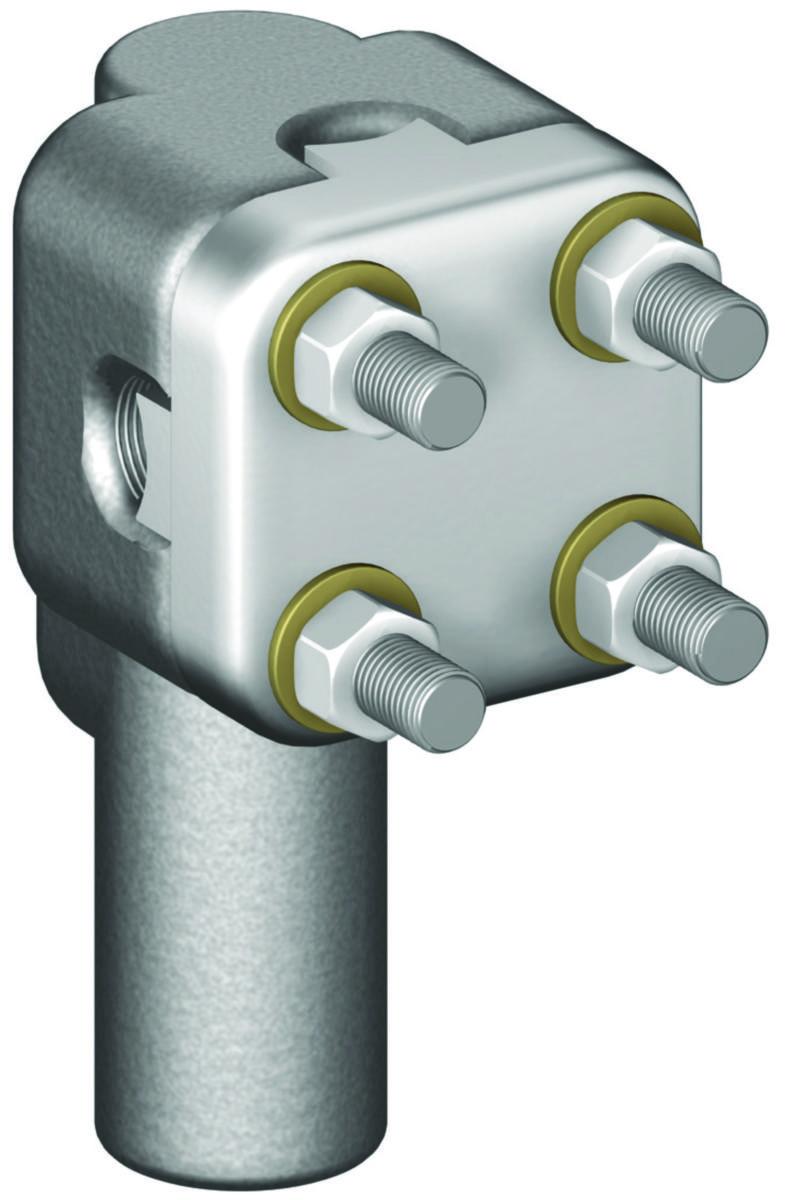

Overhead line terminal FK

AERIAL CLAMP
Article number:
0702962
Suppl. article no:
6219.0002.0





 to see price and stock
Use:When connecting cable with Cu lead, the greased cupalbleck must be laid around the lead before it is installed in the clamp. The connection to the cable’s leads is done with 3 Allen contact screws that are tightened with a torque spanner.
  • Article number:
    0702962
  • Suppl. article no:
    6219.0002.0
  • Ean no:
    7350114431614
  • Material class
    QB590A
Technical data
  • Packagin Size: 1 ST/50 ST
  • Type: FK 120
  • Area: 31-99 mm²
  • Cable diameter Al: 13 mm
  • Weight: 0.5 kg
  • Al/Cu: 50-120 mm²
