Nexans
CU-wire use as earthing line

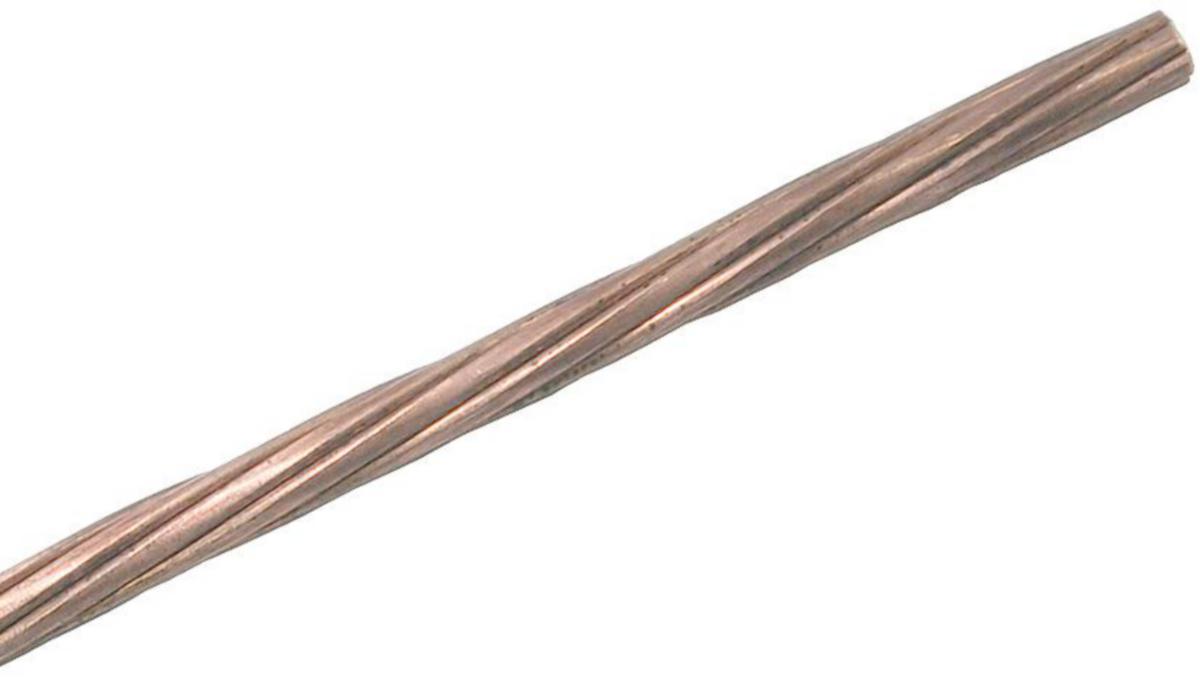

CU-WIRE 70 M2 ANNEALED
Article number:
0622270
to see price and stock
The grounding cable meets standard IEC 60228 and standards regarding construction, resistance and size. The wire is slightly softer than the hard cable and is therefore suitable for usage as ground cables in the distribution network.
- Article number: 0622270
- Material class QB3200
Technical data
- Conductor cross section: 70 mm²
- Diameter conductor: 9.8 mm
- Conductor material: Copper
- Surface protection: Other
- Sheathing material: None
- Characteristic conductor material: Half hard
- Number of strands: 19
- High-voltage-proof insulated model: No
- Suitable for EX-applications: No
- Weight: 0.5 kg
