TE Connectivity/Raychem

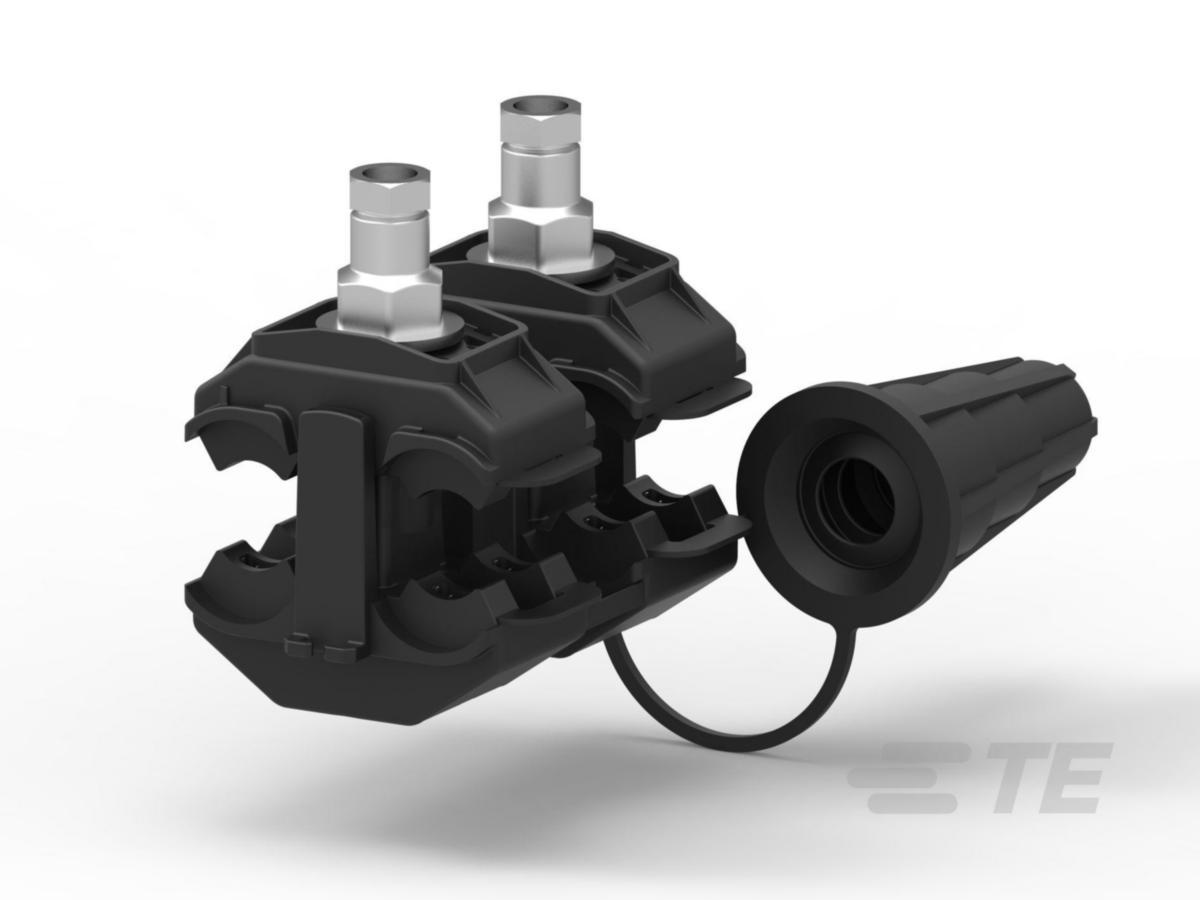

Branch terminal P3X
INSULATION PIERCING CONNECTOR P3X95
Article number: Suppl. article no:
0654865
1574150-3
to see price and stock
Make: Simel
As branching clamp for suspended spiral line.
Branching can be done without removing insulation from the main line, even while the main line is energised.
As branching clamp for suspended spiral line.
Branching can be done without removing insulation from the main line, even while the main line is energised.
- Article number: 0654865
- Suppl. article no: 1574150-3
- Ean no: 4042368035184
- Material class QB410A
Technical data
- Packagin Size: 1 ST/50 ST
- Type: P3X-95
- Nominal cross section aluminium, RM: 25-95 mm²
- Nominal cross section copper, RM: 25-95 mm²
- Voltage level: Other
- Material conductor: Aluminium/copper
- Number of screws: 1
- Surface protection: Tinned
- With insulation: Yes
- With soldering hole: No
- Degree of protection (IP): Other
- Nominal current: 350 A
- Oil stop/centre bar: No
- REACH Date: 2021-01-19
- REACH Information obligation: No
- Branch: Al/Cu 25-95, BLX/BLL 99
- Main conductor: Al/Cu 25-95
