Ensto

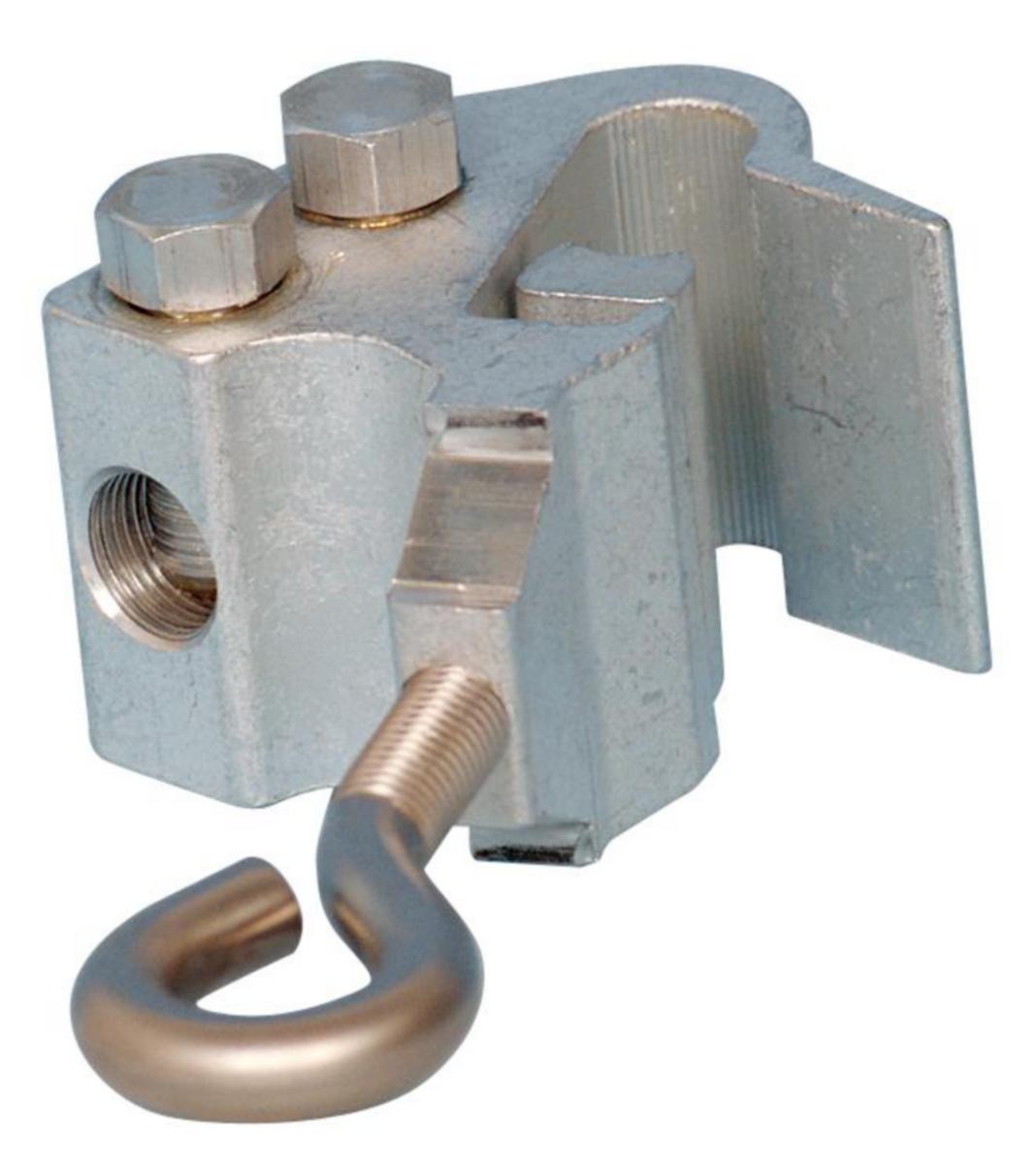

Branch terminal SL30
LIVE LINE CONNECTOR SL30
Article number: Suppl. article no:
0650609
SL30
to see price and stock
For BLL/BLX lines and polished lines for connecting branches. The clamp is installed on bracket PSS923 or PSS924. The clamp is made of corrosion-resistant aluminium, and the bolts are stainless steel. For copper branches, the PSS830 collar must be used.
- Article number: 0650609
- Suppl. article no: SL30
- Ean no: 6418677403705
- Material class QB410A
Technical data
- Packagin Size: 1 ST/24 ST
- Type: SL30
- Nominal cross section main conductor, SE: 25-150 mm²
- Nominal cross section main conductor, SM: 25-150 mm²
- Nominal cross section branch conductor, SE/RE: 25-150 mm²
- Nominal cross section branch conductor, SM/RM: 25-150 mm²
- Material main conductor: Aluminium
- Material branch conductor: Aluminium
- Terminal insulated: No
- Clamping channel opening main conductor: Both sides open
- Clamping channel opening branch conductor: Both sides open
- Surface protection: Bare
- Type of connection: Screwed connection
- REACH Date: 2021-12-10
- REACH Information obligation: No
- Branch: 25-150
- Main conductor: 25-150 mm²
- Information: Connection wire diameter from 25 to 150 mm².
