Elrond
Potential equalising line
STEEL WIRE 8MM, 50M, GALV
Article number: Suppl. article no:
0680546
100 008-50M
to see price and stock

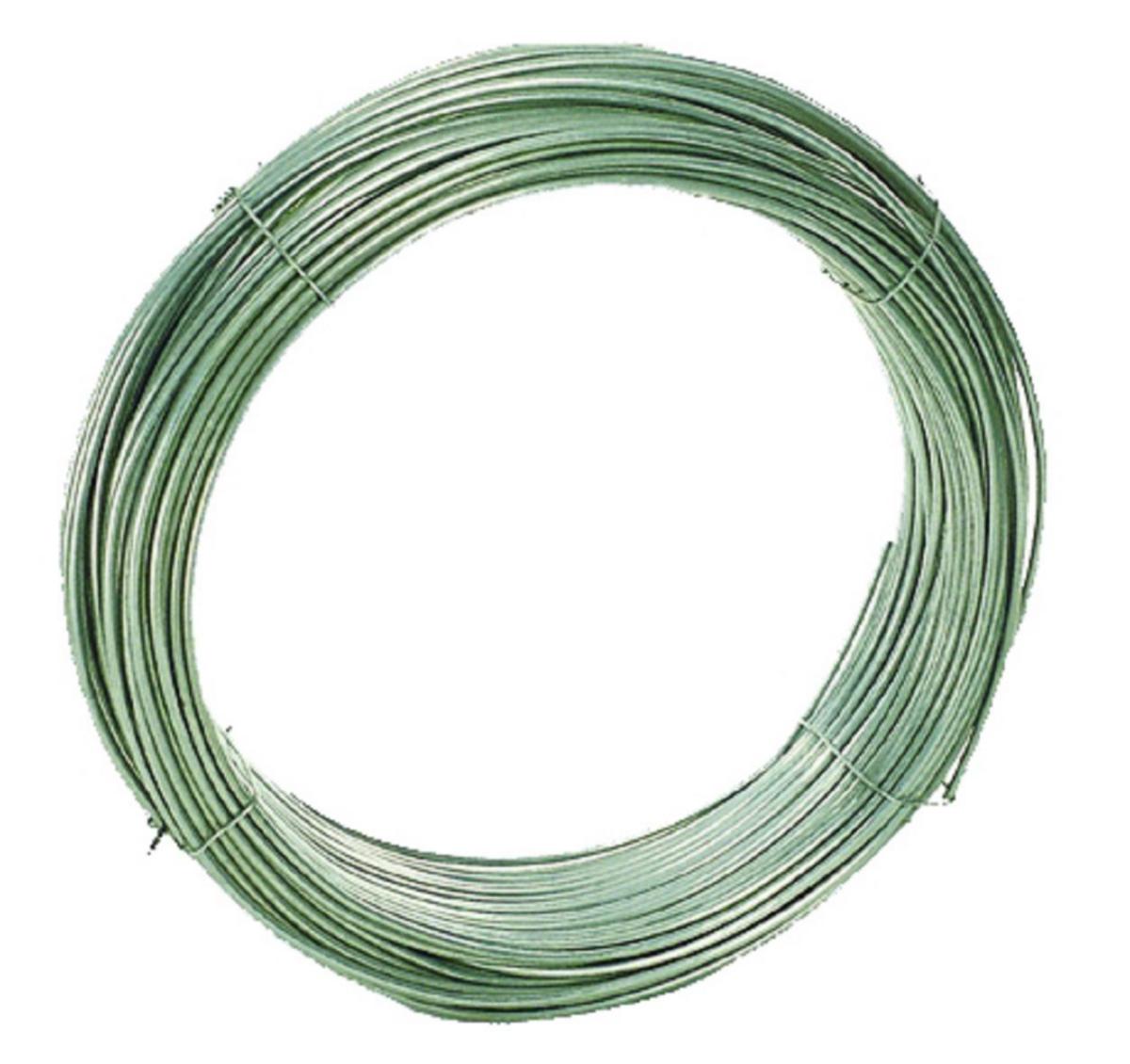

For ring earthing or connection to earthing. Comes in a roll as shown below. For ground or reinforcement.
- Article number: 0680546
- Suppl. article no: 100 008-50M
- Material class QQ660B
Technical data
- Packagin Size: 1 PCS/15 PCS
- Type: 100 008-50M
- Diameter conductor: 8 mm
- Conductor cross section: 50 mm²
- Length: 50 m
- Conductor category: Class 1 = solid
- Conductor material: Steel
- Surface protection: Hot-dip galvanised
- Material quality conductor: Other
- Sheathing material: None
- Characteristic conductor material: Hard
- Number of strands: 1
- High-voltage-proof insulated model: No
- Suitable for EX-applications: No
- Weight: 40 kg/100m
- Outer diameter incl. sheath/cover: 8 mm
- REACH Date: 2021-12-14
- REACH Information obligation: No
