Dehn

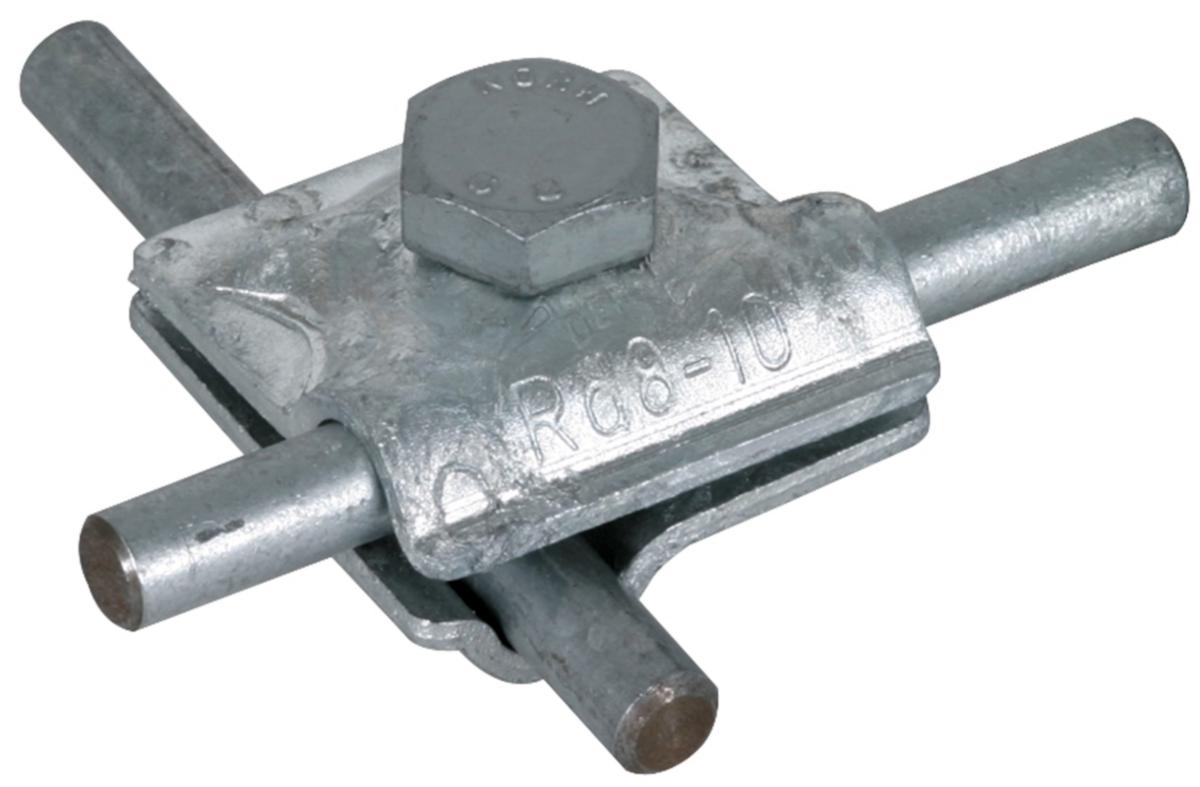

Multi clamp RD 8-10 mm hot-dip galvanized
MV clamp St/tZn f. Rd 8-10mm
Article number: Suppl. article no:
0681838
390050
to see price and stock
Multi-clamp for attaching round conductors 8-10mmØ in reinforcement 8-10mmØ. Also used to splice and cross round conductors 8-10mmØ and to attach contact plate E 0681852 to round conductors. Screws M10x30 mm.
- Article number: 0681838
- Suppl. article no: 390050
- Material class QQ7080
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type of connector: T-/cross-/parallel connector
- Type of fastening screws: Hexagon screw
- Material: Steel
- Surface protection: Hot-dip galvanised
- Diameter round conductor 1: 8-10 mm
- Diameter round conductor 2: 8-10 mm
- Lightning current load-bearing capacity (10/350 µs): 100 kA
- REACH Date: 2023-01-17
- REACH Information obligation: No
