Elrond
Potential equalising rails

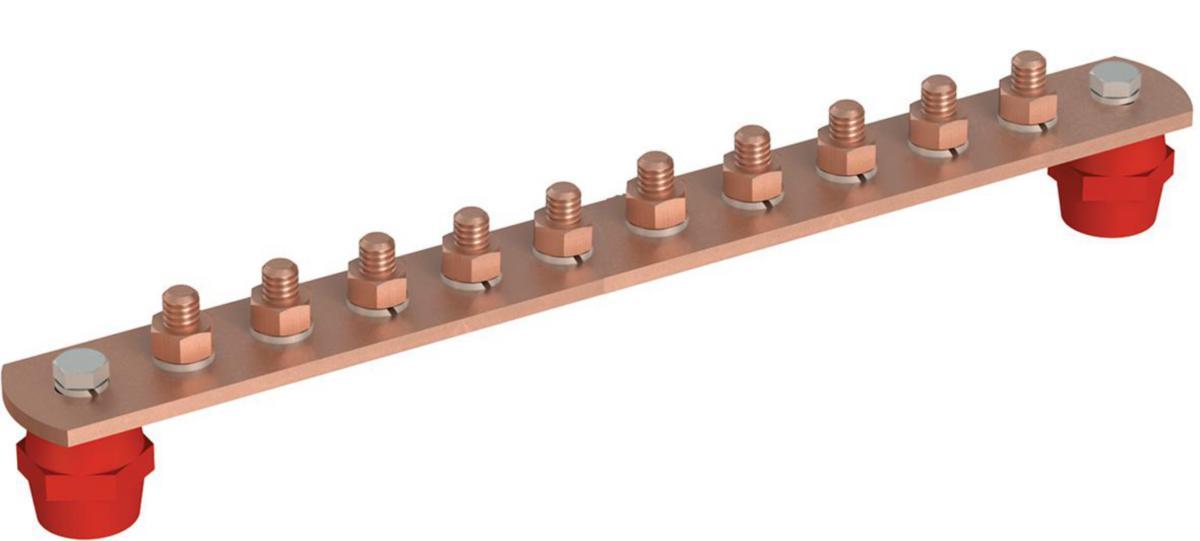

EQUIP. BONDING BAR 10 CU
Article number: Suppl. article no:
0683673
910139
to see price and stock
A potential equalisation busbar is used for collecting all earthed wires, incl. intermediate metal sheeting from VA etc. in order to avoid great potential differences which may occur. POT1 has many different connection options, which makes it practical in almost all applications.
Other busbars have stronger bolt connections (M10x25 incl. nuts, snap ring and insulators) for somewhat greater applications.
Other busbars have stronger bolt connections (M10x25 incl. nuts, snap ring and insulators) for somewhat greater applications.
- Article number: 0683673
- Suppl. article no: 910139
- Material class QQ660B
Technical data
- Type: 910 139
- Insulator: Yes
- Number of connections round conductor total: 10
- Width: 40 mm
- Height: 5 mm
- Length: 370 mm
- Material of contact rail: Copper
- Material of clamp: Stainless steel 304 (V2A)
- REACH Date: 2023-01-01
- REACH Information obligation: No
- Dimensions: 370x40x5
