Potential equalising rail MP-Bolagen
EQUIPOTENTIAL BONDING RAIL,
Article number: Suppl. article no:
0681902
841E
to see price and stock

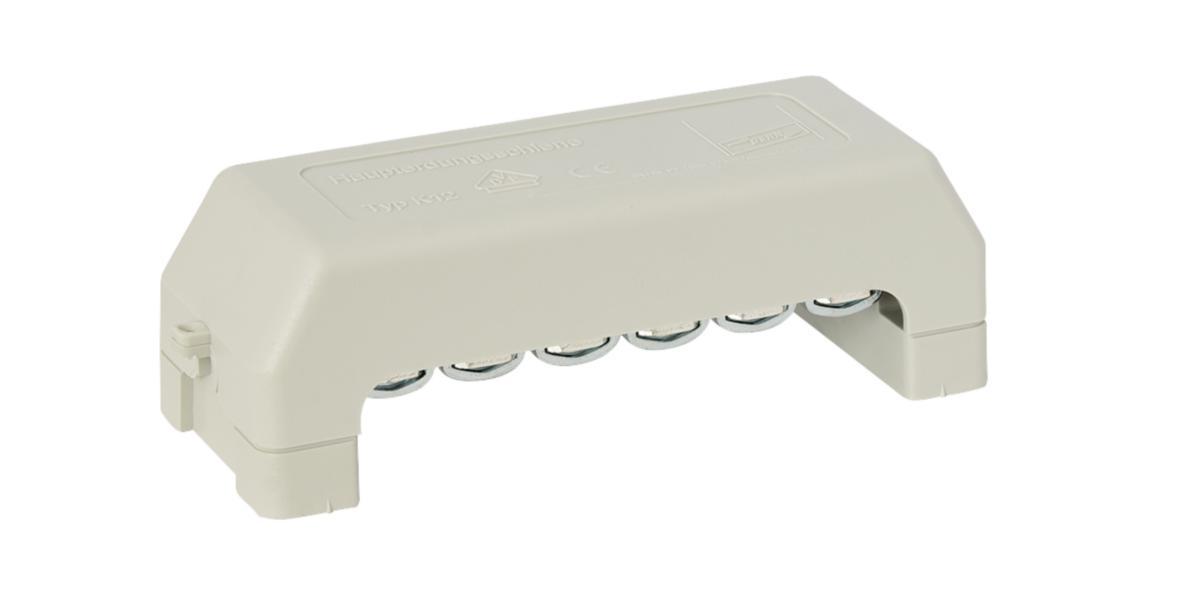

Potential equalisation rail with sealable plastic hood.
On the cam-shaped contact rail, nine loose branch connection blocks are used to connect round wires with an area of 2,5mm-95mm. In addition, with the double terminal block, a steel strap of 4x30mm can be connected
On the cam-shaped contact rail, nine loose branch connection blocks are used to connect round wires with an area of 2,5mm-95mm. In addition, with the double terminal block, a steel strap of 4x30mm can be connected
- Article number: 0681902
- Suppl. article no: 841E
- Ean no: 7394333181363
- Material class QQ719B
Technical data
- Packagin Size: 1 ST/40 ST/200 ST
- Type: MP-841E
- Model: With covering cap
- Insulator: Yes
- Number of connections round conductor total: 10

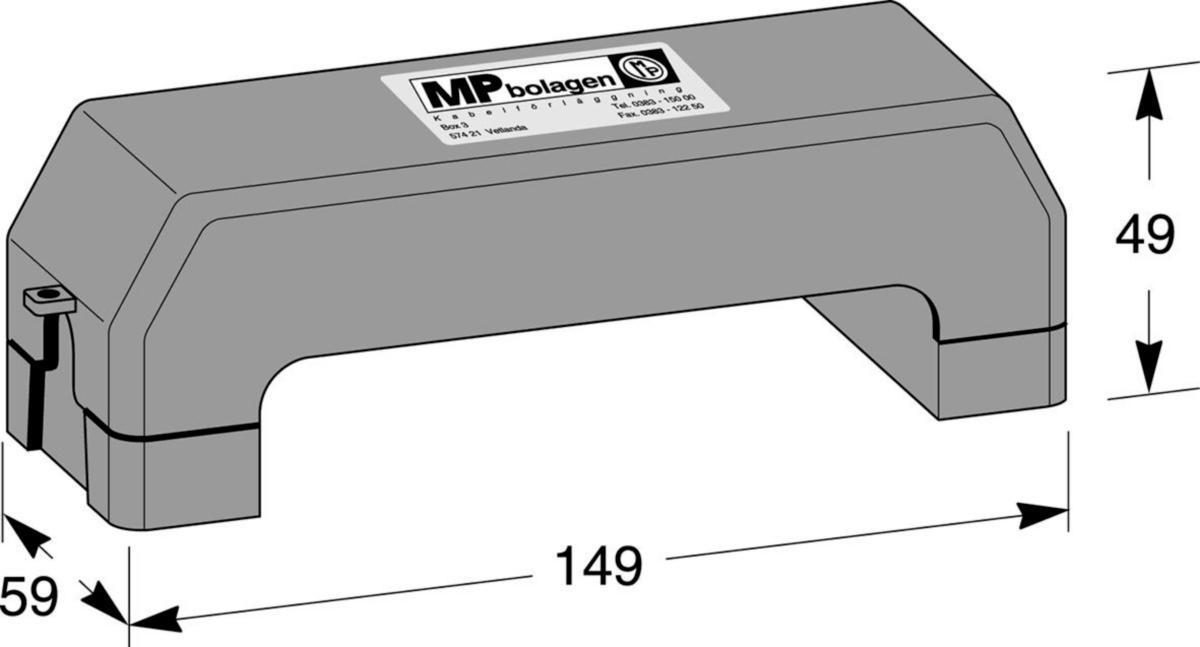

- Width: 59 mm
- Height: 49 mm
- Length: 149
- Material of contact rail: Copper
- Number of connections flat conductor 30 mm: 1
- Material of clamp: Steel
- Surface of the clamp: Galvanic/electrolytic zinc plated
- Construction type: Surface mounting fix
- Surface of the contact rail: Galvanic tinned
- Number of connections conductor to 95 mm² fixed: 10
- Corrosiveness class: C1
- REACH Date: 2021-06-17
- REACH Information obligation: No
