Dehn

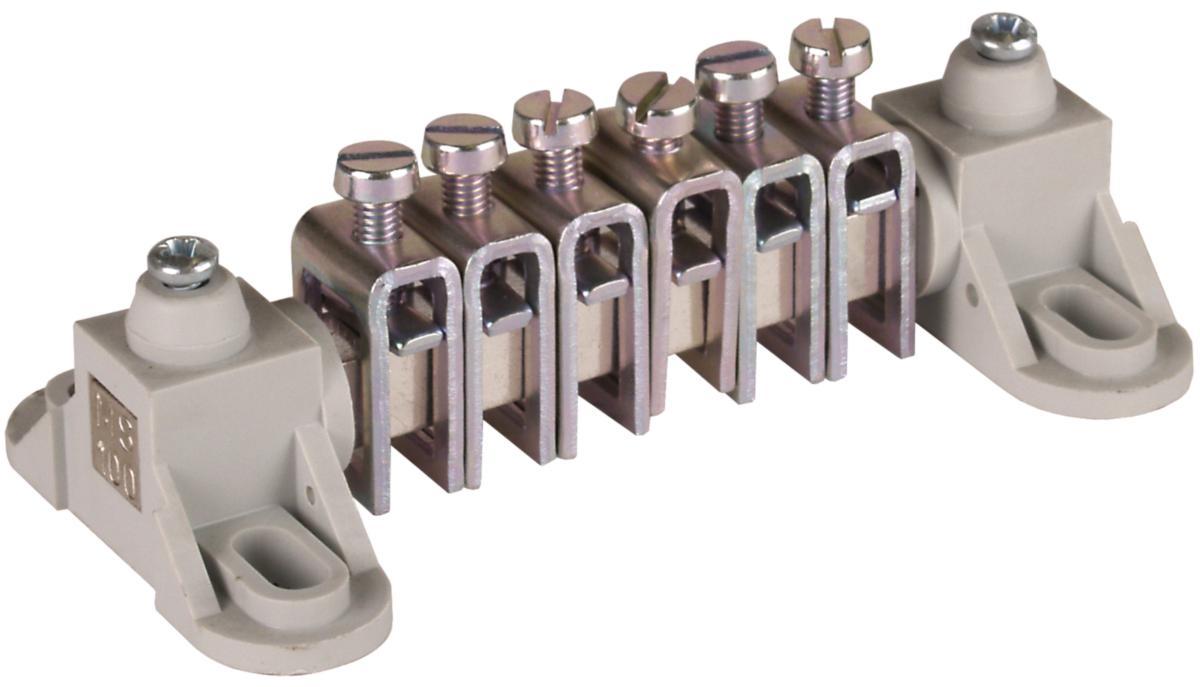

Potential equalization rail Mini
Mini Equipotential bonding bar
Article number: Suppl. article no:
0681871
563105
to see price and stock
Potential equalization rail for indoor use with the option of connecting 6x2.5-25mm².
- Article number: 0681871
- Suppl. article no: 563105
- Material class QQ7080
Technical data
- Packagin Size: 1 PCS/10 PCS
- Model: Without covering cap
- Insulator: Yes
- Number of connections round conductor total: 6
- Width: 31 mm
- Height: 58 mm
- Length: 113 mm
- Material of contact rail: Copper
- Material of clamp: Brass
- Surface of the clamp: Nickel-plated
- Construction type: Surface mounting fix
- Surface of the contact rail: Nickel-plated
- Number of connections conductor to 16 mm² fixed: 6
- Number of connections conductor to 25 mm² fixed: 6
- Number of connections conductor to 6 mm² fixed: 6
- REACH Date: 2023-01-17
- REACH Information obligation: No
