Dehn

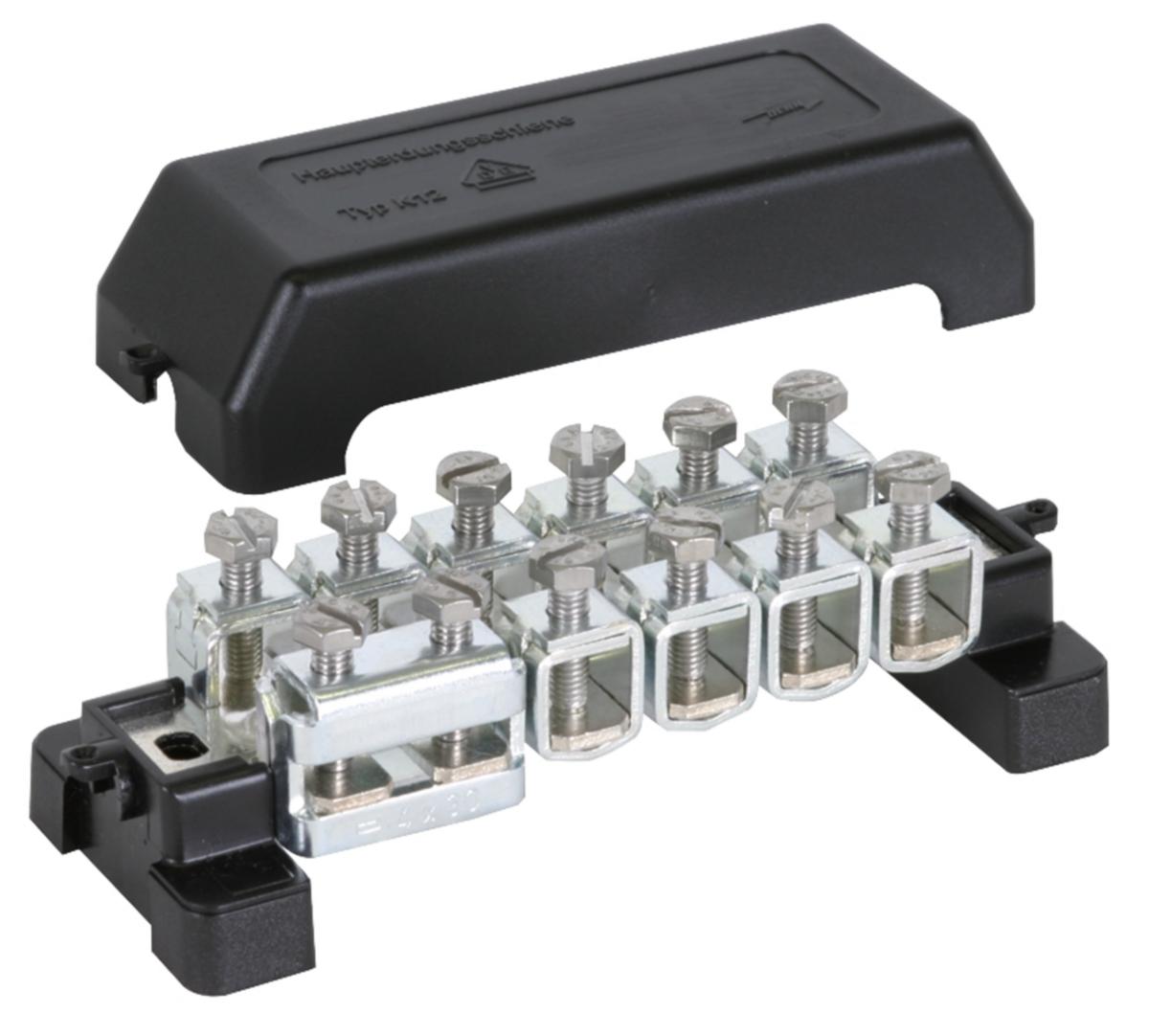

Potential equalization rail K12UV
K12 equipotent.bond bar UV-res
Article number: Suppl. article no:
0681868
563201
to see price and stock
Potential equalization rail with black UV-resistant cover for outdoor use with the possibility of connecting 1 flat conductor 30x4, 10 round conductors RD 10mmØ or 10 pcs 2.5-95mmm².
halogen free
halogen free
- Article number: 0681868
- Suppl. article no: 563201
- Ean no: 4013364101234
- Material class QQ7080
Technical data
- Packagin Size: 1 PCS/1 PCS
- Model: With covering cap
- Insulator: Yes
- Number of connections round conductor total: 10
- Width: 57 mm
- Height: 57 mm
- Length: 149 mm
- Material of contact rail: Copper
- Number of connections flat conductor 30 mm: 1
- Number of connections round conductor 10 mm: 10
- Number of connections round conductor 8 mm: 10
- Number of connections round conductor 8-10 mm: 10
- Material of clamp: Other
- Surface of the clamp: Galvanic tinned
- Construction type: Surface mounting modular
- Surface of the contact rail: Galvanic tinned
- Number of connections conductor to 16 mm² fixed: 10
- Number of connections conductor to 25 mm² fixed: 10
- Number of connections conductor to 6 mm² fixed: 10
- Number of connections conductor to 95 mm² fixed: 10
- REACH Date: 2023-01-17
- REACH Information obligation: No
