OBO Bettermann
Potential equalising rails, OBO

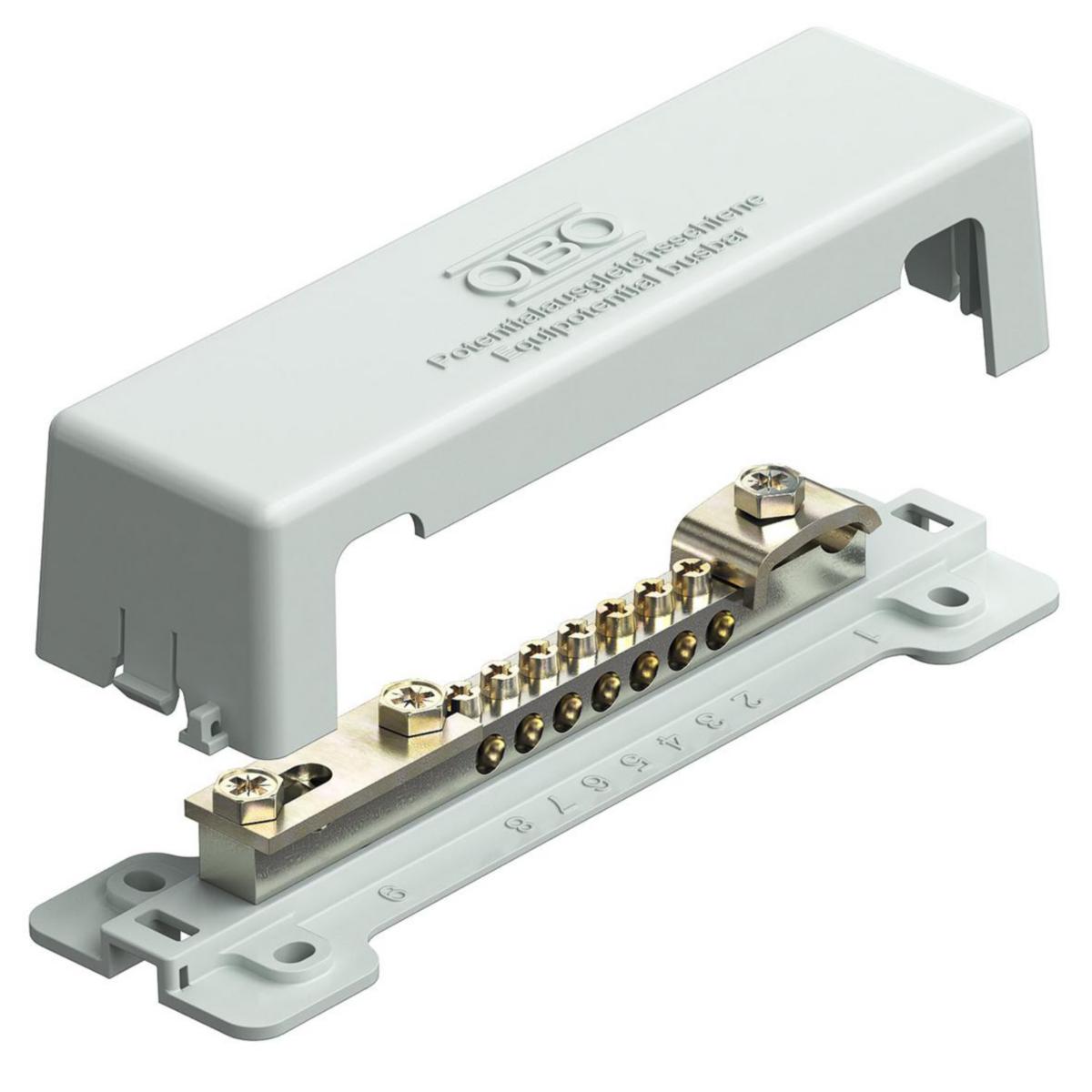

EQUIPOTENTIAL BONDING RAIL 5015073
Article number: Suppl. article no:
0681446
5015073
to see price and stock
Potential equalising busbar with metal base for potential levelling in accordance with SS EN 4364000 Chapter 410 as well as lighting protection potential levelling in accordance with SS EN 62305-3 Bbl5
Connection options:
• 7 single- or multi-stranded wires up to 25 mm² or fine-stranded wires up to 16 mm²
• 1 Round wire Rd 8-10
1 flat band up to FL 30 or round wire Rd 8-10
• Protective cover of polystyrene, grey
• Base plate of steel, band galvanised
• Contact strip of brass, nickel-plated
• Screws and overlays of steel, galvanised
• Lightning current threshold failure value 100 kA (10/350)
Connection options:
• 7 single- or multi-stranded wires up to 25 mm² or fine-stranded wires up to 16 mm²
• 1 Round wire Rd 8-10
1 flat band up to FL 30 or round wire Rd 8-10
• Protective cover of polystyrene, grey
• Base plate of steel, band galvanised
• Contact strip of brass, nickel-plated
• Screws and overlays of steel, galvanised
• Lightning current threshold failure value 100 kA (10/350)
- Article number: 0681446
- Suppl. article no: 5015073
- Ean no: 4012195378259
- Material class QQ6500
Technical data
- Packagin Size: 1 ST/30 ST
- Type: plastic footplate
- Design: 1x8-10 mm², 7xmax 25 mm², 1xband 4x30 mm or wire 8-10 mm². Bottom part polystyrene
- Model: With covering cap
- Insulator: Yes
- Number of connections round conductor total: 1
- Width: 52 mm
- Height: 44.5 mm
- Length: 188 m
- Material of contact rail: Brass
- Number of connections flat conductor 30 mm: 1
- Number of connections flat conductor 40 mm: 0
- Number of connections round conductor 10 mm: 0
- Number of connections round conductor 8 mm: 0
- Number of connections round conductor 8-10 mm: 1
- Material of clamp: Steel
- Surface of the clamp: Galvanic/electrolytic zinc plated
- Construction type: Surface mounting fix
- Surface of the contact rail: Nickel-plated
- Number of connections conductor to 16 mm² fixed: 0
- Number of connections conductor to 25 mm² fixed: 7
- Number of connections conductor to 6 mm² fixed: 0
- Number of connections conductor to 95 mm² fixed: 0
