OBO Bettermann

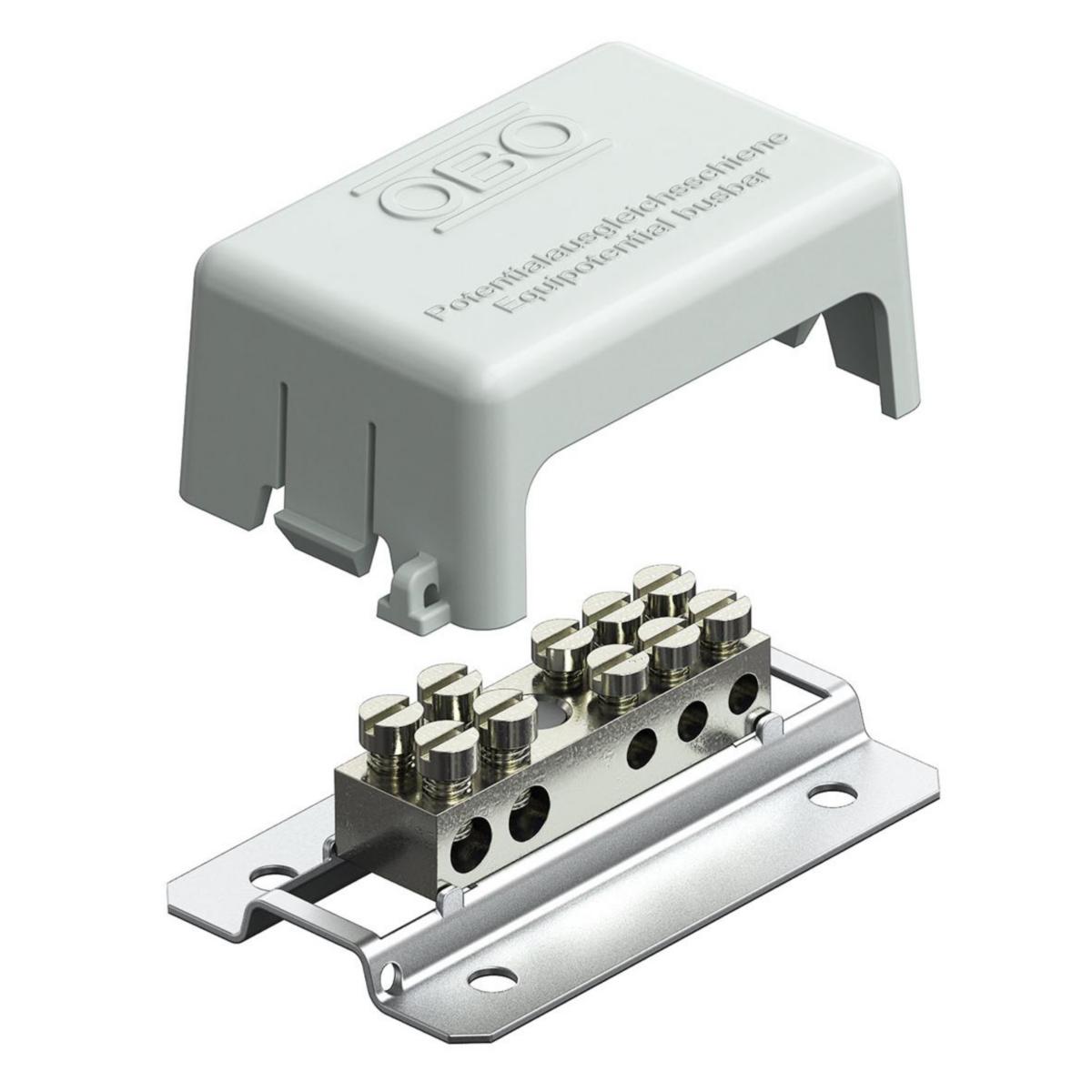

Potential equalising busbar
EQUIPOTENTIAL BONDING RAIL 1809 BG
Article number: Suppl. article no:
0681444
5015502
to see price and stock
Item 0681600: Potential equalising busbar and protective equalising busbar in accordance with standard SS 436400 and SS EN 62305. Tested for 10kA. Connection options 7 x EK/FK 25mm² or RK16mm², 1 round wire, diameter 8-10mm and 1 x flat band 30x3 or round wire diameter 8-10mm.
Item: 0681444: Potential equalising busbar in brass
Item: 0681444: Potential equalising busbar in brass
- Article number: 0681444
- Suppl. article no: 5015502
- Ean no: 4012195378372
- Material class QQ6500
Technical data
- Packagin Size: 1 ST/25 ST
- Type: 5015502
- Design: Made of nickel-plated brass with screws and clamps made of galvanised steel. 3x6, 2x16
- Model: With covering cap
- Insulator: No
- Number of connections round conductor total: 0
- Width: 43.5 mm
- Height: 29 mm
- Length: 72 m
- Material of contact rail: Brass
- Number of connections flat conductor 30 mm: 0
- Number of connections flat conductor 40 mm: 0
- Number of connections round conductor 10 mm: 0
- Number of connections round conductor 8 mm: 0
- Number of connections round conductor 8-10 mm: 0
- Material of clamp: Brass
- Surface of the clamp: Nickel-plated
- Construction type: Surface mounting fix
- Surface of the contact rail: Nickel-plated
- Number of connections conductor to 16 mm² fixed: 2
- Number of connections conductor to 25 mm² fixed: 0
- Number of connections conductor to 6 mm² fixed: 3
- Number of connections conductor to 95 mm² fixed: 0
- REACH Date: 2021-08-16
- REACH Information obligation: No
