EBR 4651
EBR-KIT 4651
Article number:
0604651
to see price and stock
Included in design EVA 54/B, EVB 54/B.
- Article number: 0604651
- Material class QB991A
Technical data

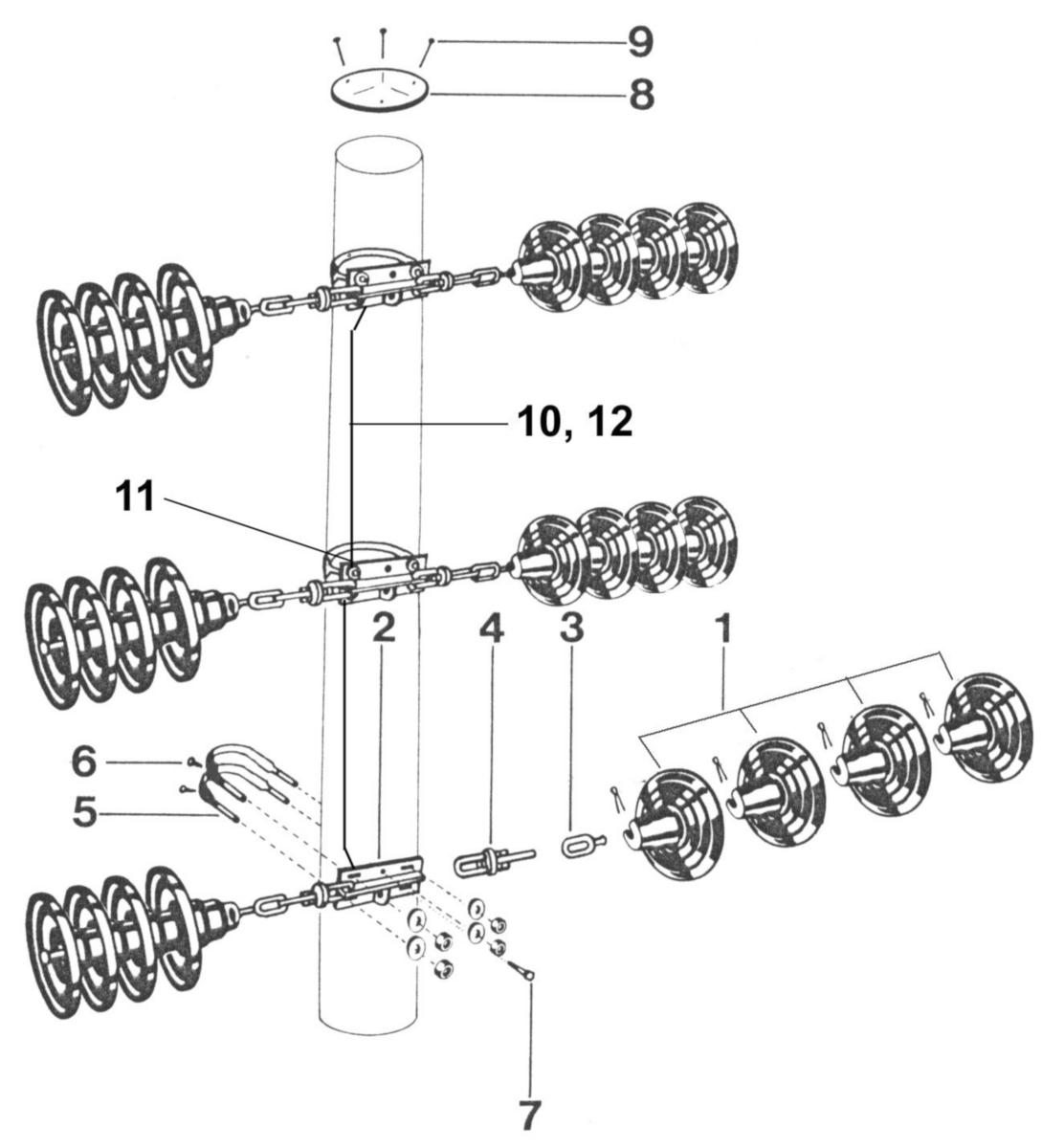

- Input article number: 0624851: Chain insulator U70 BL, pos 1, qty 24
0628055: Mounting bracket, pos 2, qty 3
0624651: Ball and socket eyebolts 241264, pos 3. qty 6
0624671: Adjusting screw 4241164/16, pos 4, qty 6
0628661: Post clamp SPH 20 20x300, pos 5, qty 6
106326: Wood screw T6S 20x100 fzv, pos 7, qty 3
118791: Wood screw T6S 8x75 fzv, pos 6, qty 6
0623927: Post cover 270 incl rod, pos 8, 9, qty 1
0622250: Copper wire 50 sq mm, pos 10, qty 3
0632005: Earthing bracket KG 42, pos 11, qty 3
0629250: Staple 35 mm, pos 12, qty 8 - Weight: 142 kg
