AhlsellProductsElectricMains power supply equipment 06-0906 Cable protection equipmentCable protection/OPTOCable protection pipes
Pipelife
Reclosable duct SRN KRAFT, DIVIO
DIVIO 160 SRN YELLOW
Article number: Suppl. article no:
0661048
70006945
to see price and stock

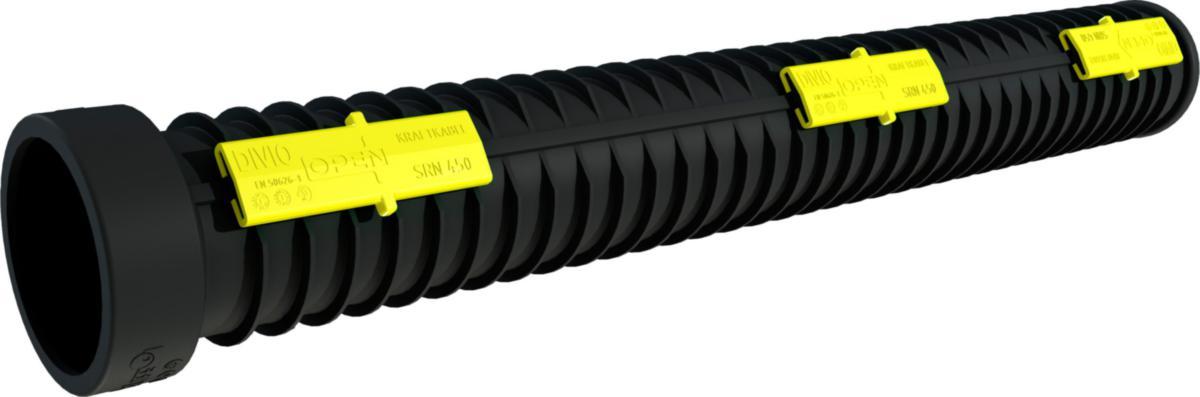

Split cable protection pipe for cable laying and for temporary installation. Also suitable for repair work on existing cable protection pipes as the inner diameter corresponds to standardized outer dimensions of double-walled cable protection pipes. Can be connected via a fixed socket. Possible angle is 15 degrees.
Marked POWER CABLE. With locking plate, SRN rated.
Marked POWER CABLE. With locking plate, SRN rated.
- Article number: 0661048
- Suppl. article no: 70006945
- Ean no: 9010459205018
- Material class QB1200
Technical data
- Packagin Size: 1 ST/45 ST/45 ST
- Length: 1.1 m
- Outer diameter: 215 mm
- Inner diameter: 160 mm
- Colour: Black
- Separable: Yes
- Material: Plastic
- Material quality: Polypropylene (PP)
- Model: Rigid
- Shape: Outer side ribbed, inner side plain
- Surface protection: Untreated
- Surface polished: No
- Transparent: No
- Compressive strength according to EN 61386-24: Type 450
- Impact strength according to EN 61386-24: Light
- Inner colour tube: Black
- Suitable for outdoor use: Yes
- REACH Date: 2024-08-30
- GWP-tot (A1-A3): 6,5804 kgCO2e/ST
- REACH Information obligation: No
