Hide-a-lite
Drivdonsbox Q-box, Hide-a-Lite
DRIVER BOX Q-BOX
Article number: Suppl. article no:
7910290
7910290
to see price and stock

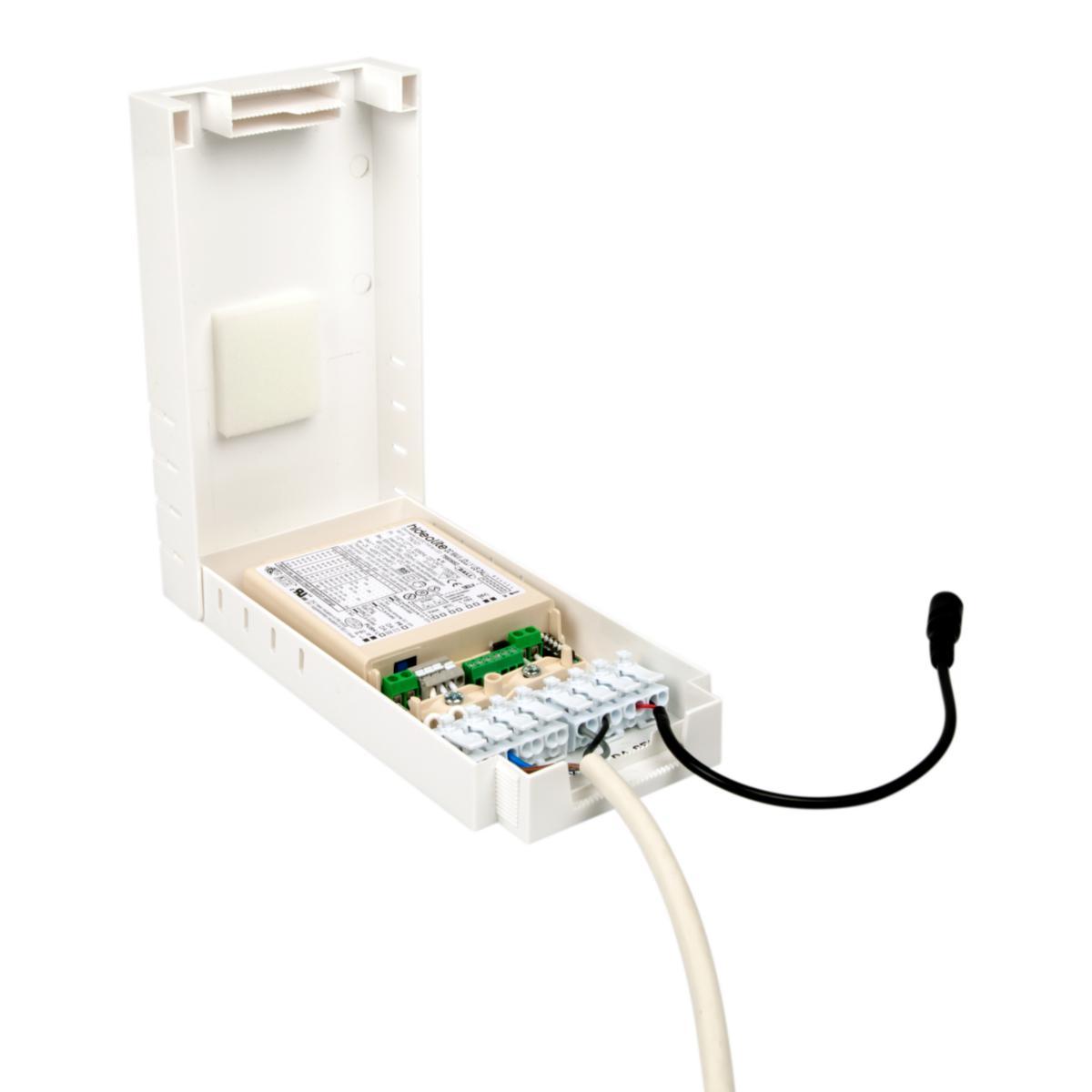

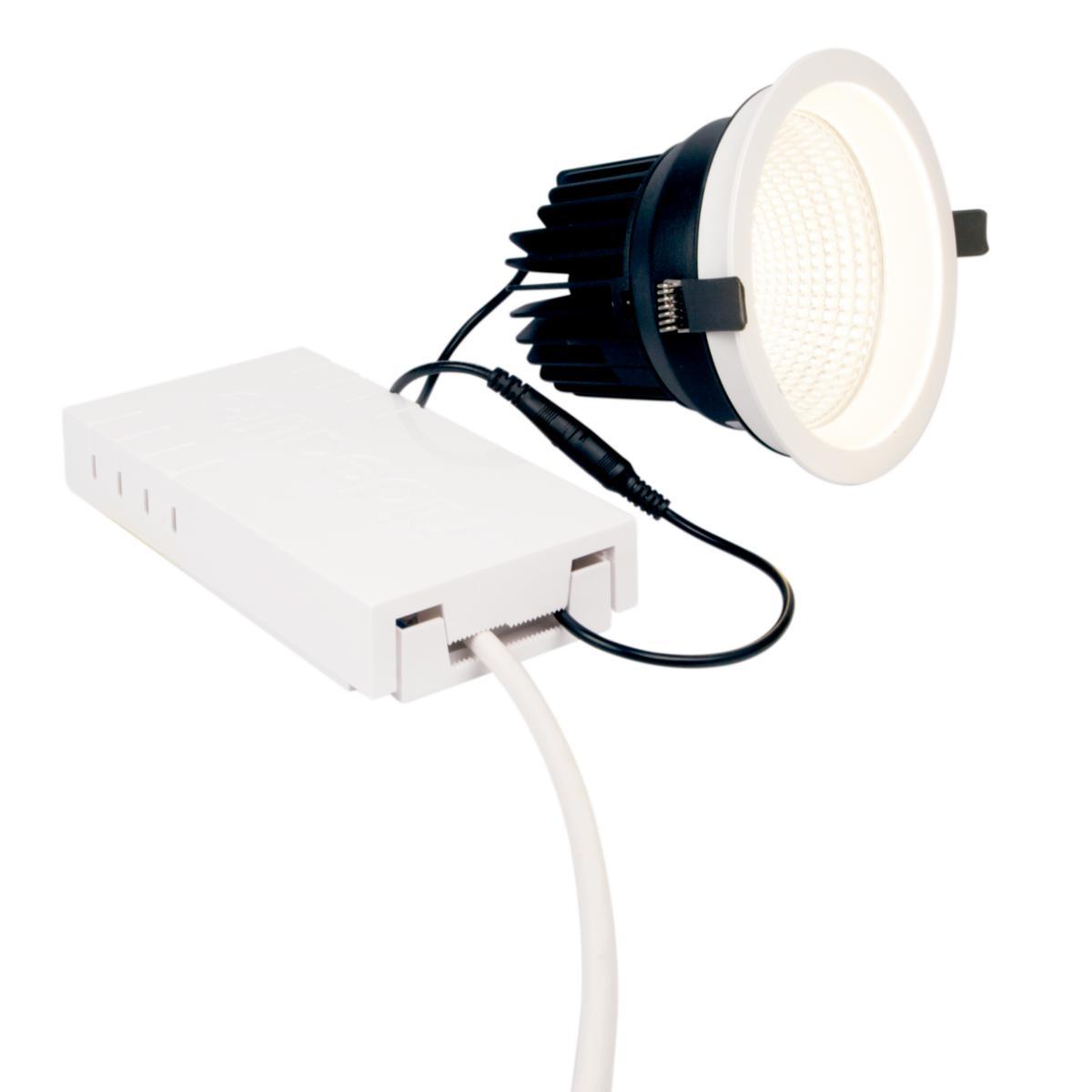

Detached drive box in white halogen-free plastic for indoor use. With quick-connect terminals 8x0.5-2.5mm2 for connecting actuators. Suitable for forwarding between actuators or luminaires, possible forwarding for both incoming supply and lighting control. Works both to hide drives but also as a connection point. Q-box is mainly suitable for our Jolly drives and is used completely without tools. Screw-free strain relief and diverting provide a service-friendly installation.
- Article number: 7910290
- Suppl. article no: 7910290
- Ean no: 7392971128696
- Material class QT4330
Technical data
- Packagin Size: 1 ST/20 ST/20 ST

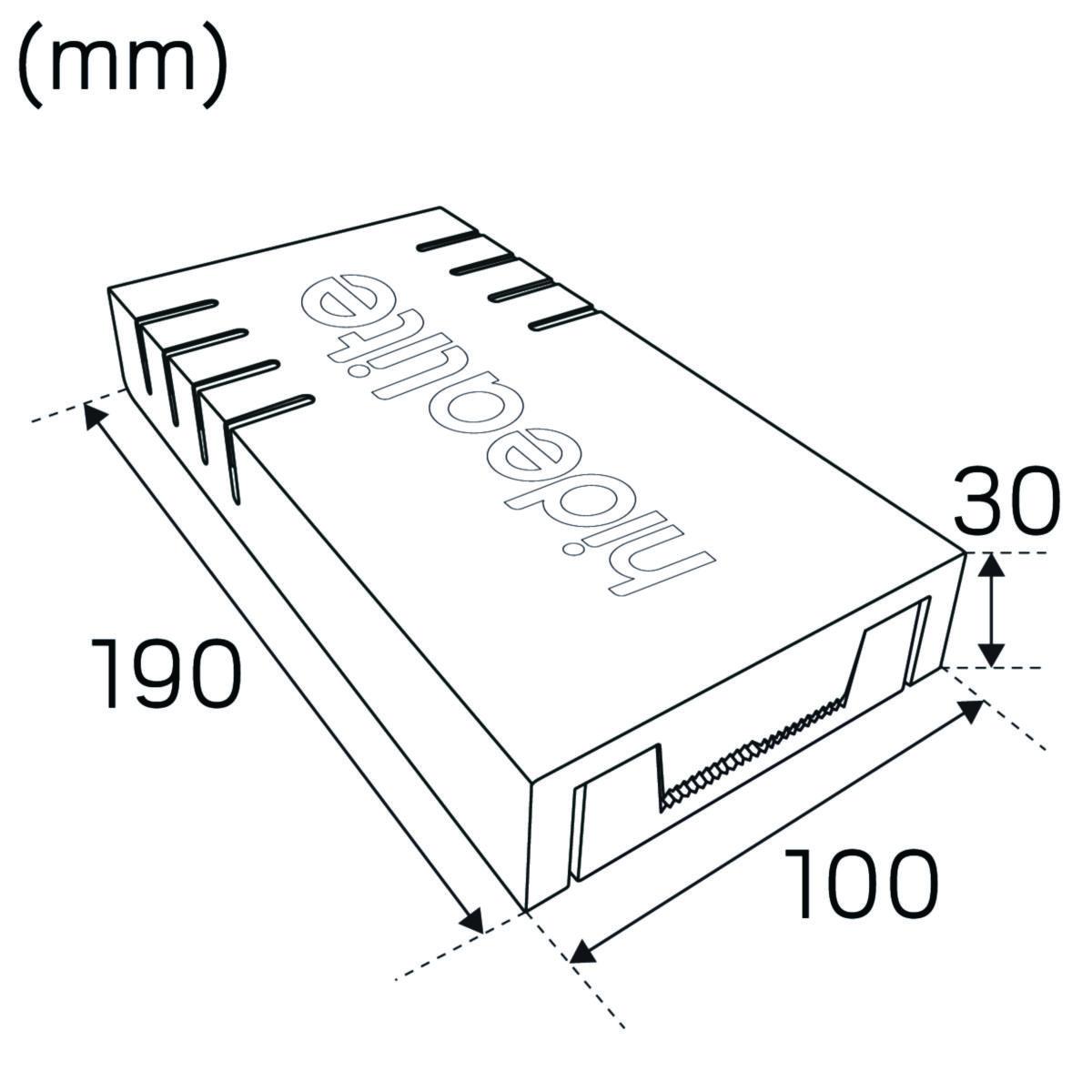

- Width: 100 mm
- Height: 30 mm
- Depth: 190 mm
- Colour: White
- Number of conduit inlets: 2
- Housing material: Plastic
- Suitable for outdoor use: No
- Suitable for lightning protection: No
- With mounting plate: No
- Mounting method: Surface mounted
- Type of door: None
- Transparent cover/door: No
- Number of modules: 0
- Number of rows: 0
- Number of openings for flange plates: 0
- Width in number of modular spacings: 0
- With lock: No
- Degree of protection (IP): Other
- Cover model: None
- Impact strength: Other
- Type of covering: Cover
- Extension possible: No
- REACH Date: 2022-06-01
- Circuit integrity: None
- REACH Information obligation: No
