Norwesco

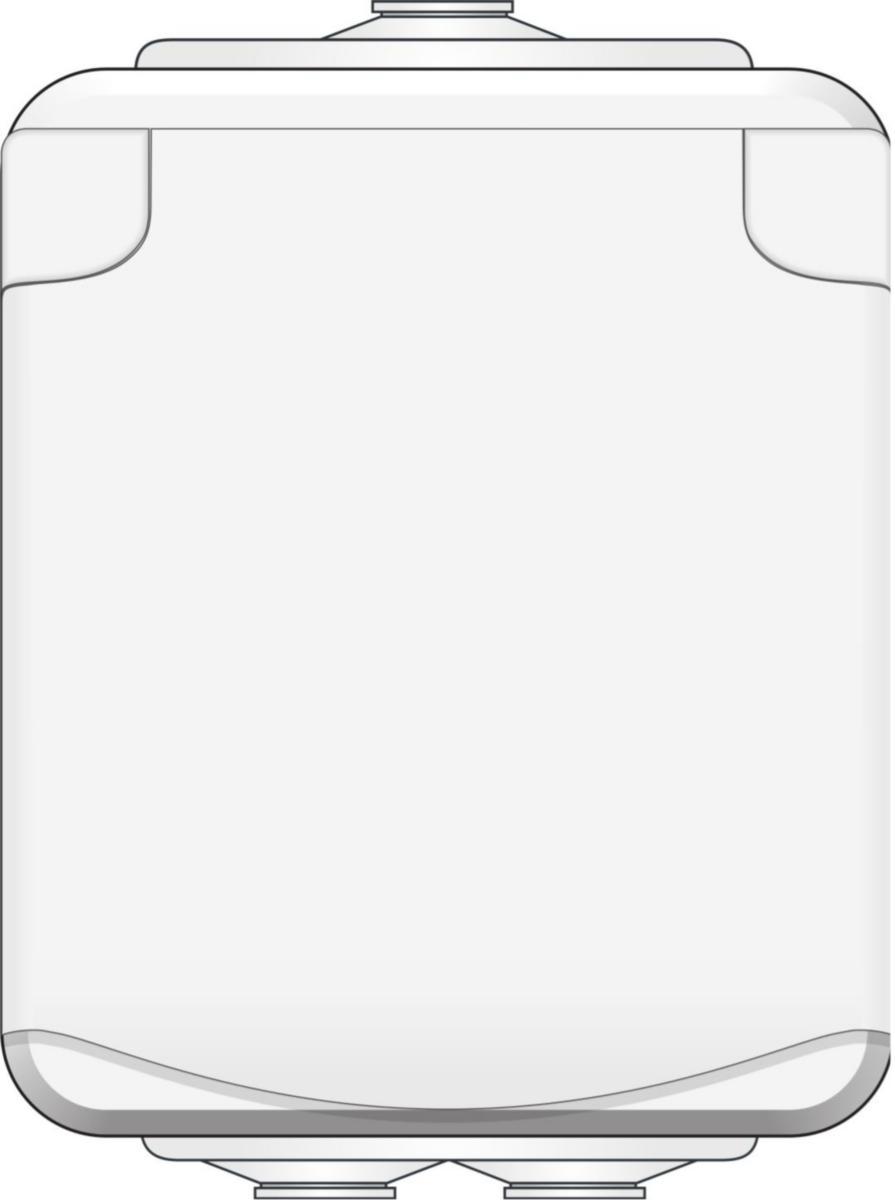

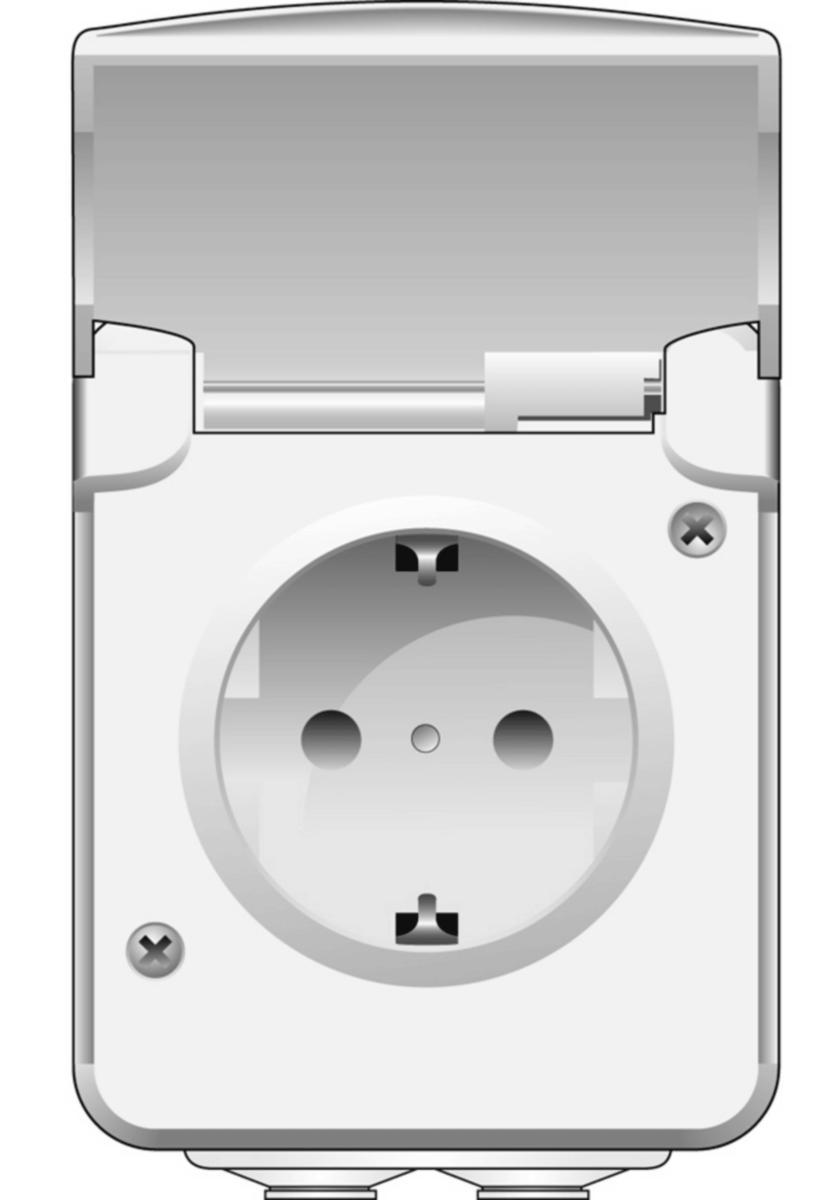

Wall socket AquaBest white fire classed IP44, Norwesco
SOCKET 1-WAY WITH IP44 UTP.
Article number: Suppl. article no:
1861701
460002
to see price and stock
To shop with us, you need a registered company and a customer number.
Encapsulated white wall sockets for surface mounting in impact-resistant halogen-free thermoplastic in a modern dirt-repellent design in protection class IP44 are designed to blend in with facades painted in Fala red. The wall sockets are made of self-extinguishing material and meet the requirements of the standard UL 94-V0 for Agriculture
- Article number: 1861701
- Suppl. article no: 460002
- Ean no: 7394438600028
- Material class QH879B
Technical data
- Packagin Size: 1 ST/5 ST
- Type: 1-way
- Product series: AquaBest
- Number of units: 1
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9010
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Number of phases: 1
- Surface finishing: Matt
- Type of fastening: Mounting with screw
- Lockable: No
- Device height: 74 mm
- Device width: 62 mm
- Device depth: 48 mm
- Imprint/indication: Degree of protection (IP)
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- Mounting method: Surface mounted
- Over voltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 230 V
- Suitable for degree of protection (IP): IP44
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Other
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- With built-in USB power supply: No
- Connection type: Screwed terminal
- Number of active contacts (flat): 0
- Number of active contacts (round): 2
- Number of modules (module system): 0
- Metallic colour: No
- Transparent: No
- Protective earth pin round: No
- Protective contact: No
