Elko

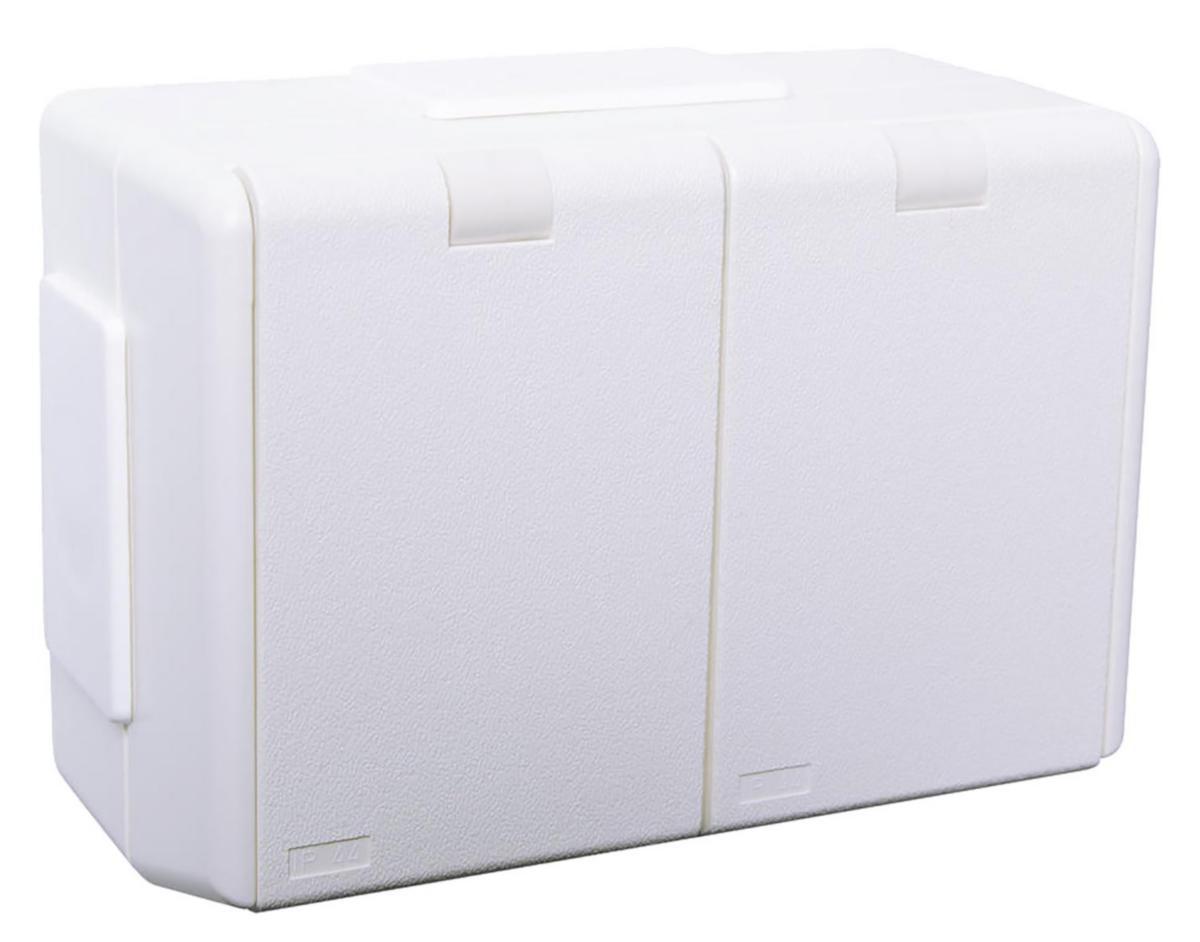

Wall socket 2-way surface-mounted IP44, separate power supply, Elko
DOUBLE SOCKET OUTLET. SEP. PH. EKO07568
Article number: Suppl. article no:
1849274
EKO07568
to see price and stock
Wall outlet, 2-way, surface-mount, halogen-free thermoplastic. With self-closing lid. Screw connection for connectors. Dual connections per phase. In the dual outlet, there is space for 3 extra quick-release terminals for, for example, auxiliary line and diverting phases in 5-wire systems. Equipped with grommets.
- Article number: 1849274
- Suppl. article no: EKO07568
- Ean no: 7020160756800
- Material class QH3600
Technical data
- Packagin Size: 1 PCS/5 PCS/5 PCS/50 PCS
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Number of socket outlets: 2
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Connection type: Screwed terminal
- Type of fastening: Mounting with screw
- Lockable: No
- Device height: 75 mm
- Device width: 100 mm
- Device depth: 50 mm
- Surface finishing: Glossy
- With hinged lid: Yes
- With function lighting: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Transparent: No
- With built-in USB power supply: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
