Elko

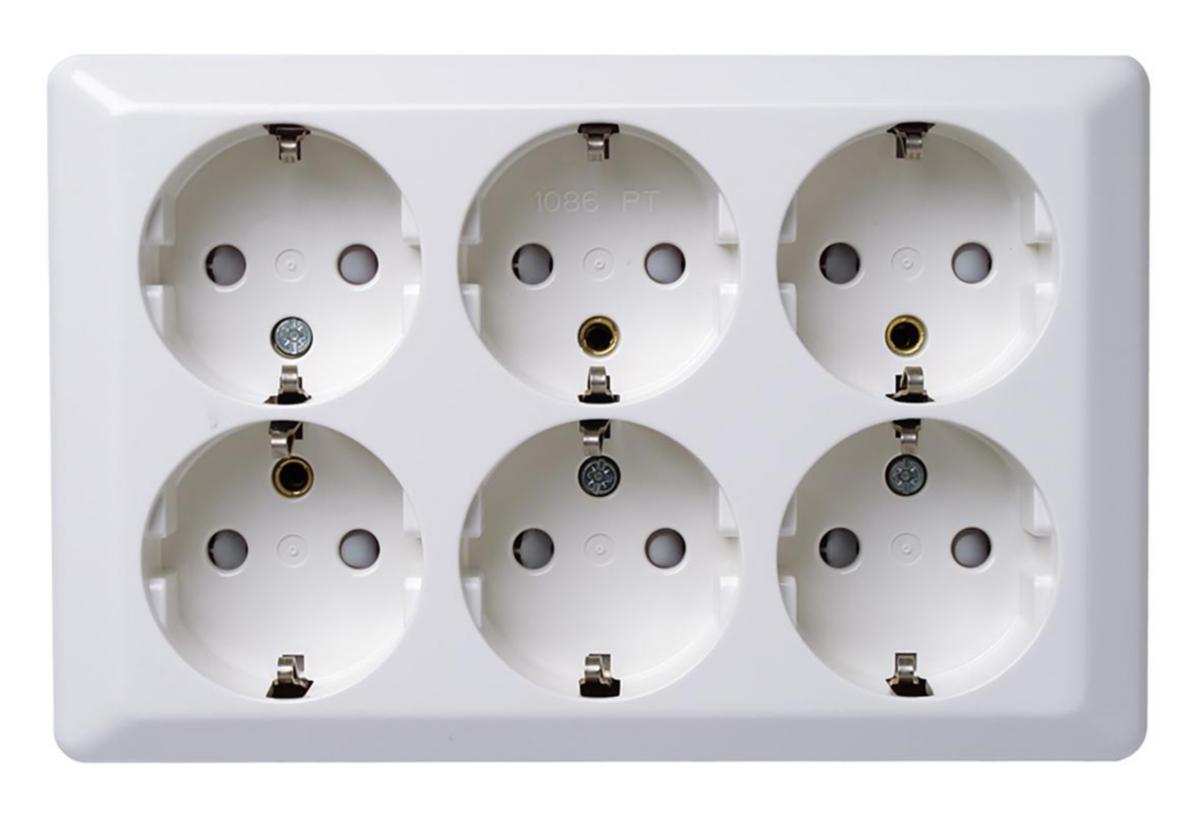

Wall socket 6-way socket with ground FV 16A
RS1086 PT 6WSO SURFACE PH EKO07484
Article number: Suppl. article no:
1841490
EKO07484
to see price and stock
Base and centre plate of halogen free thermoplastic. The bottom plate has a key hole with “knock-outs" for mounting on device box. Screw connection for connectors. Dual connections per phase. For installation on box or directly on wall. The outlet wells can be divided up and controlled in pairs via the electric switch. There is space for 3 pcs extra cutover clamps on the bottom plate. Supplied complete with 3 pcs extra cutover clamps. Tension reliever available as accessory, E18 414 99. Only one tension reliever per outlet.
- Article number: 1841490
- Suppl. article no: EKO07484
- Ean no: 7020160748409
- Material class QH3400
Technical data
- Packagin Size: 1 ST/5 ST
- Number of socket outlets: 6
- Number of socket outlets switchable: 2
- Colour: White
- RAL-number (similar): 9003
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Connection type: Screwed terminal
- Surface finishing: Glossy
- Lockable: No
- Device height: 104 mm
- Device width: 159 mm
- Device depth: 43 mm
- Type of fastening: Mounting with screw
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Surface mounted
- Over voltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP21
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- With built-in USB power supply: No
- Number of modules (module system): 0
- Transparent: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
