Schneider Electric

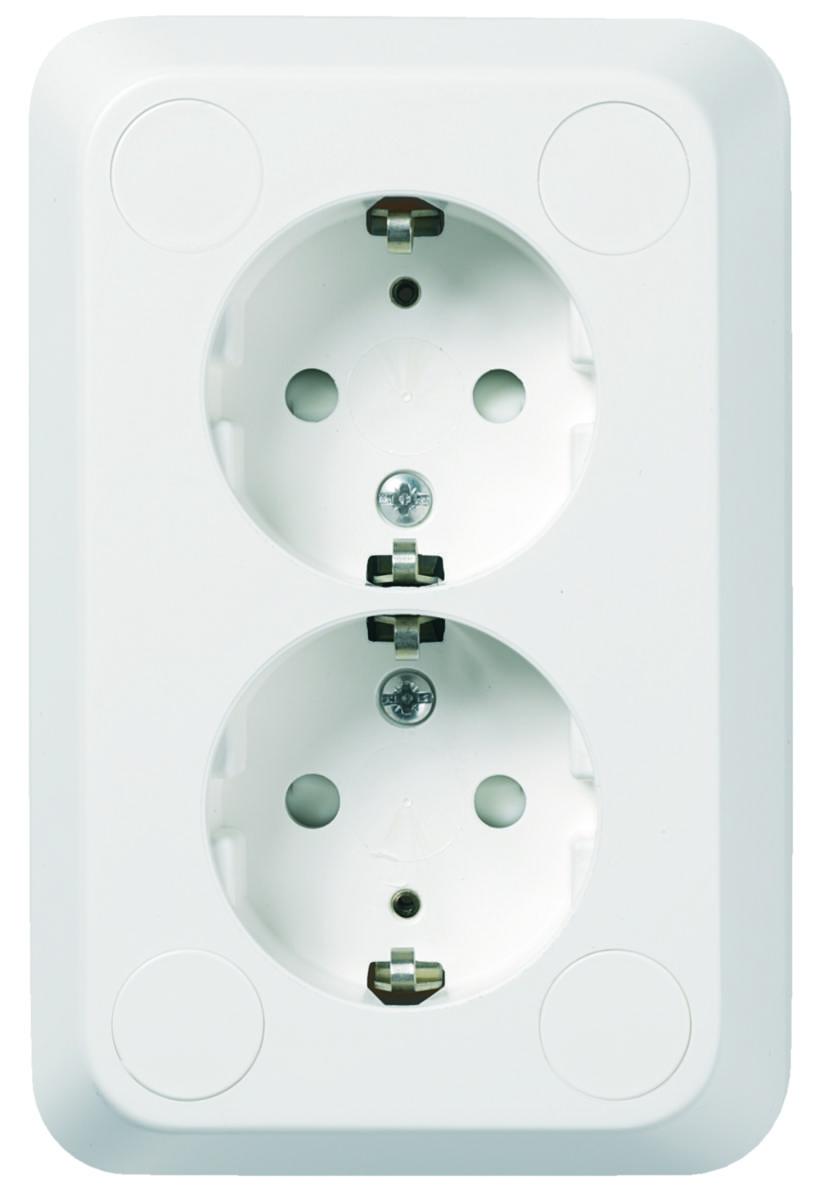

Wall socket 2-way surface-mounted 16A
ROBUST DOUBLE SO SURFACE MOUNT 183263300
Article number: Suppl. article no:
1832633
WDE000924
to see price and stock
To shop with us, you need a registered company and a customer number.
Robust wall socket 2-way earthed surface-mounted quick connection. Impact resistance IK09 according to standard IEC 62262. Polar white
- Article number: 1832633
- Suppl. article no: WDE000924
- Ean no: 6438054019237
- Material class QH190B
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: Robust
- Number of units: 2
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9010
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Surface finishing: Matt
- Type of fastening: Mounting with screw
- Lockable: No
- Device height: 151 mm
- Device width: 151 mm
- Device depth: 38 mm
- With hinged lid: No
- Rotated central insert: Yes
- With function lighting: No
- Rated fault current: 0 mA
- Mounting method: Surface mounted
- Over voltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: No
- Insulated mounting: Yes
- With built-in USB power supply: No
- Connection type: Other
- Number of modules (module system): 0
- Transparent: No
