Schneider Electric

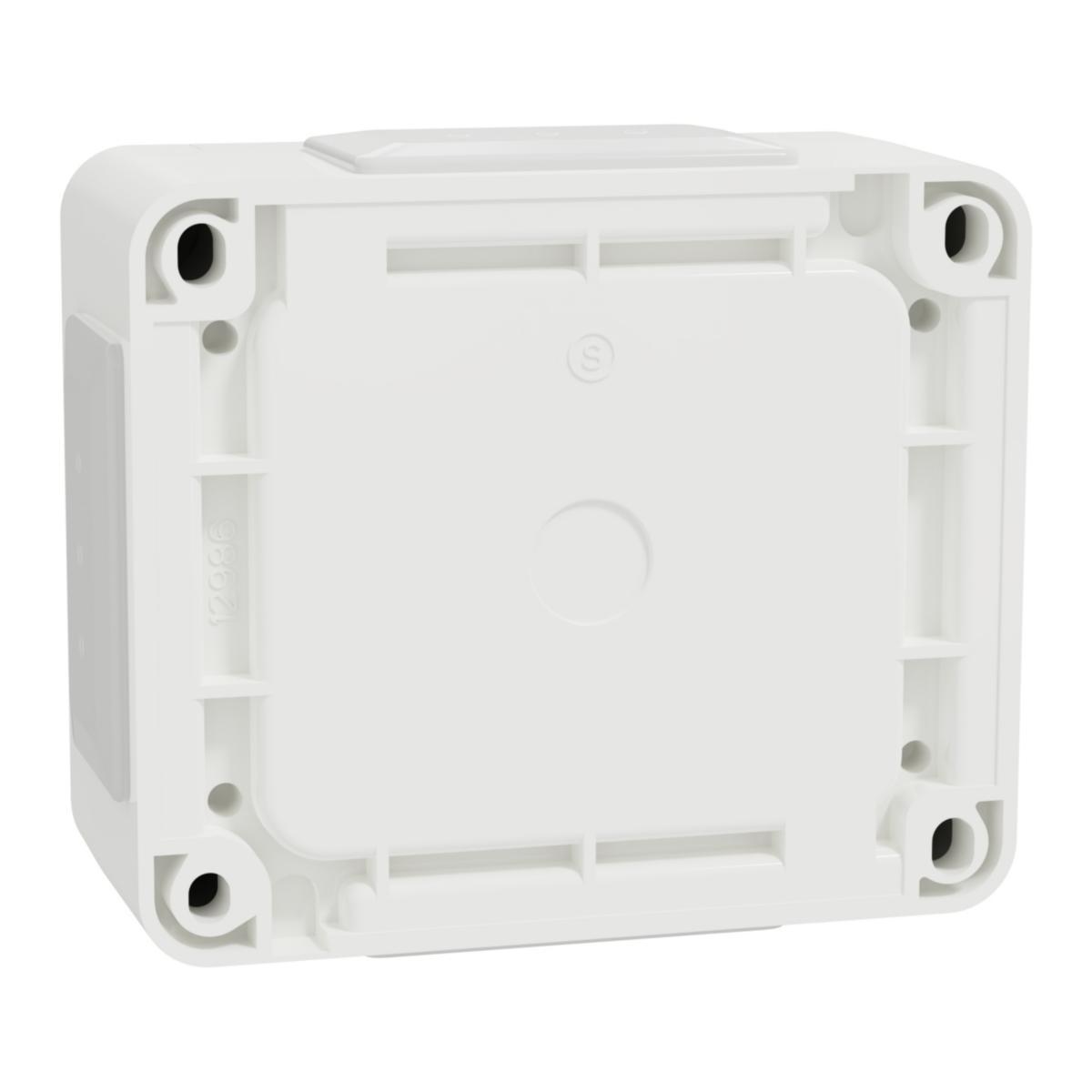

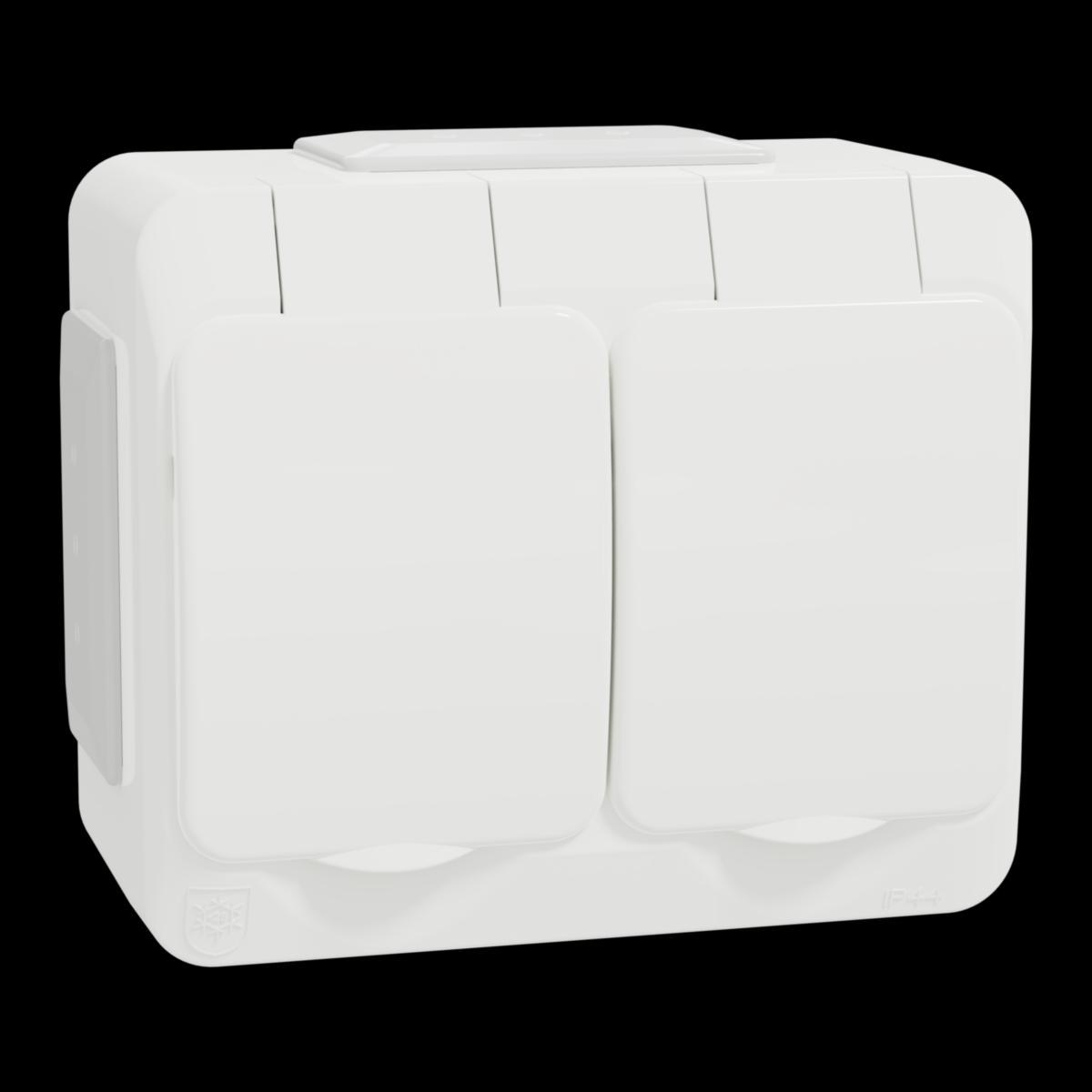

Surface-mounted wall socket IP44 Aqua-Stark
Double so screwl 16A Pw
Article number: Suppl. article no:
1820473
WDE0400081
to see price and stock
Aqua-Stark is a series of surface mounted junction boxes, electrical switches, wall sockets and enclosures in IP44. Meet Länsförsäkringsbolagen’s fire requirements for agriculture and resistance against vegetable oils and ammonia. The devices are impact resistant, which makes them suitable for installations in agriculture, kitchens, basements, waste rooms, laundry rooms, attics, garages, industrial and storage buildings.
Earthed, tamper-resistant wall socket for surface IP44 mounting with membrane nipples. Screw connection. The outlets have two neutral bridging clamps integrated in the enclosure.
Earthed, tamper-resistant wall socket for surface IP44 mounting with membrane nipples. Screw connection. The outlets have two neutral bridging clamps integrated in the enclosure.
- Article number: 1820473
- Suppl. article no: WDE0400081
- Ean no: 3606486888391
- Material class QH0702
Technical data
- Packagin Size: 1 PCS/5 PCS/60 PCS/1440 PCS
- Product series: Aqua Stark
- Colour: White
- RAL-number (similar): 9010
- Mounting method: Surface mounted
- Connection type: Push-in clamp
- Type of fastening: Mounting with screw
- Lockable: No
- Device height: 75 mm
- Device width: 88 mm
- Imprint/indication: None
- Surface finishing: Glossy
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Number of phases: 1
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- Impact strength: IK08
- With loop through function: Yes
- Insulated mounting: No
- Anti-bacterial treatment: No
- With signal lamp: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Number of active contacts (round): 2
- Metallic colour: No
- Transparent: No
- REACH Date: 2024-07-31
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
