Wall socket Renova surface-mounted screw connection - DOUBLE SO EARTHED SCREW WDE015897
Schneider Electric

Wall socket Renova surface-mounted screw connection

DOUBLE SO EARTHED SCREW WDE015897
Article number:
1820356
Suppl. article no:
WDE015897
‌
‌
‌
‌
‌
 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.

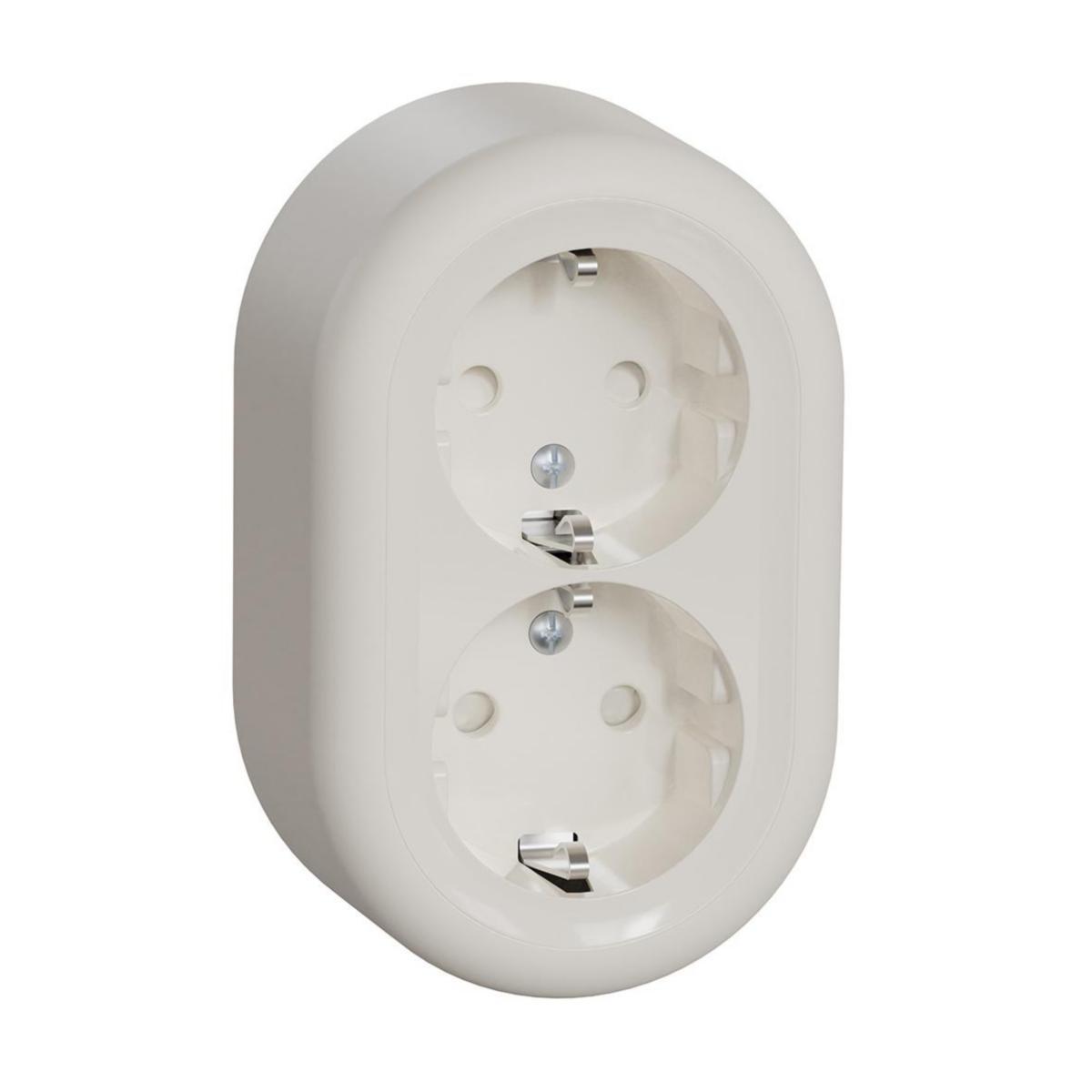

Wall socket with quick connection for surface installation with integrated base plate. 16AX, 250V, grounded, socket protected. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below.
  • Article number:
    1820356
  • Suppl. article no:
    WDE015897
  • Ean no:
    3606489504779
  • Material class
    QH1101
Technical data
  • Packagin Size: 1 ST/10 ST/10 ST/100 ST
  • Product series: Renova
  • Number of socket outlets: 2
  • Number of socket outlets switchable: 0
  • Colour: White
  • RAL-number (similar): 9010
  • Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of phases: 1
  • Connection type: Screwed terminal
  • Surface finishing: Matt
  • Lockable: No
  • Device height: 111 mm
  • Device width: 70 mm
  • Device depth: 43 mm
  • Type of fastening: Mounting with screw
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: No special power supply
  • Fault current protection: No
  • Frequency: 50 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: No
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 0 mm
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • With built-in USB power supply: No
  • Number of active contacts (flat): 0
  • Number of active contacts (round): 4
  • Metallic colour: No
  • Transparent: No
  • REACH Date: 2022-07-20
  • GWP-tot (A1-A3): 0,6662 kgCO2e/ST
  • Protective earth pin round: No
  • Protective contact: Yes
  • REACH Information obligation: No
