Schneider Electric

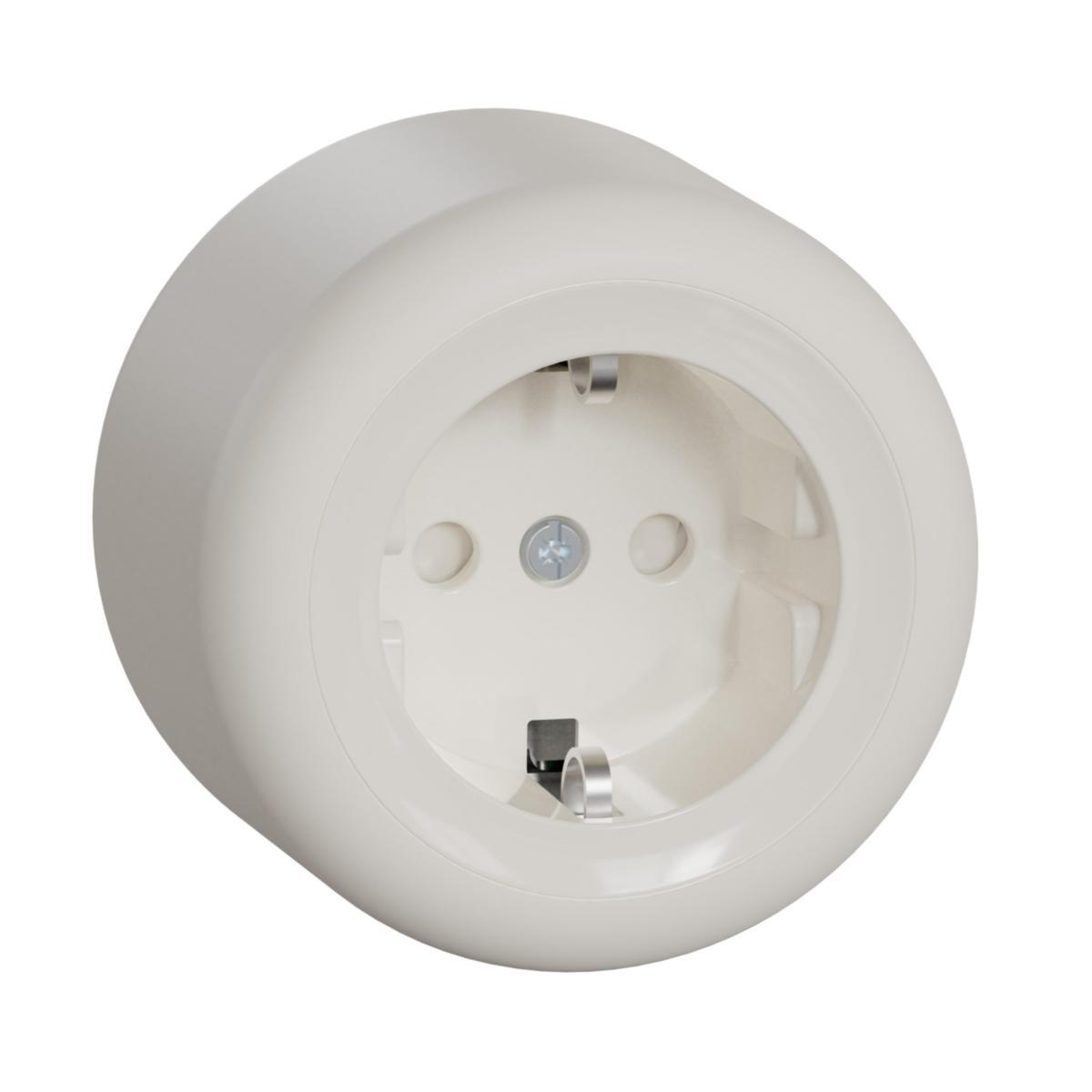

Wall socket Renova surface-mounted quick connection

SINGLE SO EARTHED SCREWLESS WDE015876
Article number:
1820350
Suppl. article no:
WDE015876
‌
‌
‌
‌
‌
 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Wall socket with quick connection for surface installation with integrated base plate. 16AX, 250V, grounded, socket protected. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below.
  • Article number:
    1820350
  • Suppl. article no:
    WDE015876
  • Ean no:
    3606489504724
  • Material class
    QH110A
Technical data
  • Packagin Size: 1 ST/10 ST/10 ST/120 ST
  • Product series: Renova
  • Number of socket outlets: 1
  • Colour: White
  • RAL-number (similar): 9010
  • Model: Socket outlet with protective contact CEE 7/3 (type F)
  • Protective contact: Earthing clips
  • Number of phases: 1
  • Connection type: Push-in clamp
  • Surface finishing: Matt
  • Lockable: No
  • Device height: 70 mm
  • Device width: 70 mm
  • Device depth: 43 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: No special power supply
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • With enhanced contact protection: Yes
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: Yes
  • Insulated mounting: Yes
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 0 mm
  • With built-in USB power supply: No
  • Number of loop throughs: 1
  • Metallic colour: No
  • Transparent: No
  • REACH Date: 2022-07-20
  • Protective earth pin round: No
  • Protective contact: Yes
  • REACH Information obligation: No
