Schneider Electric

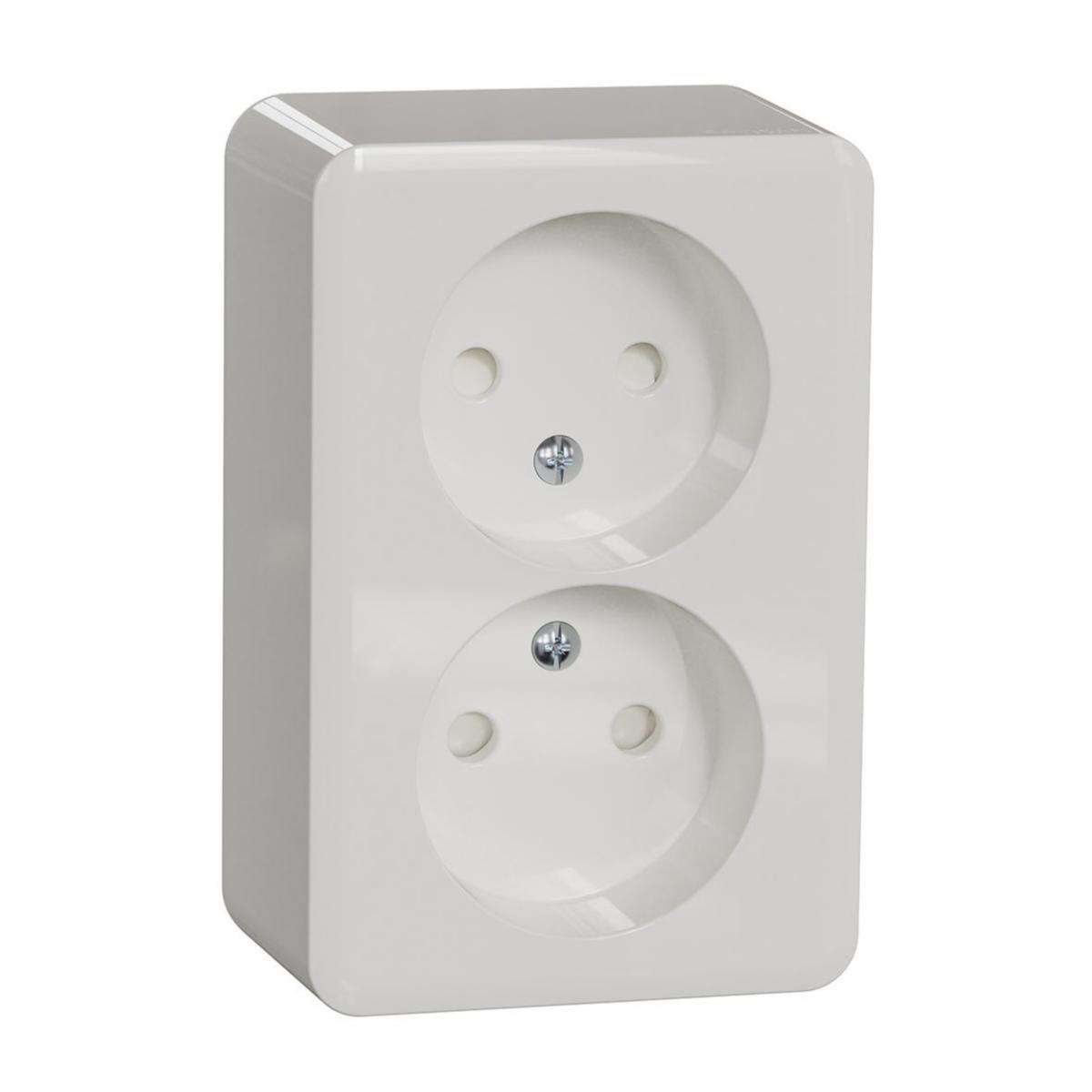

Wall outlet Exxact surface-mounted ungrounded screw connection
DSO W/O EARTH BRANCHING SCREW WDE015691
Article number: Suppl. article no:
1820301
WDE015691
to see price and stock


Wall socket for surface installation with integrated base plate. 16AX, 250V, ungrounded, socket protected. Screw connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below.
- Article number: 1820301
- Suppl. article no: WDE015691
- Ean no: 3606489504359
- Material class QH1600
Technical data
- Packagin Size: 1 ST/10 ST/10 ST/100 ST
- Type: WDE015691
- Product series: Exxact
- Number of socket outlets: 2
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Model: CEE 7/1 unearthed
- Connection type: Screwed terminal
- Surface finishing: Glossy
- Lockable: No
- Device height: 98 mm
- Device width: 65 mm
- Type of fastening: Mounting with screw
- Imprint/indication: None
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 0 mm
- With built-in USB power supply: No
- Number of active contacts (flat): 0
- Number of active contacts (round): 0
- Transparent: No
- REACH Date: 2022-07-20
- GWP-tot (A1-A3): 0,5799 kgCO2e/ST
- REACH Information obligation: No
