Schneider Electric

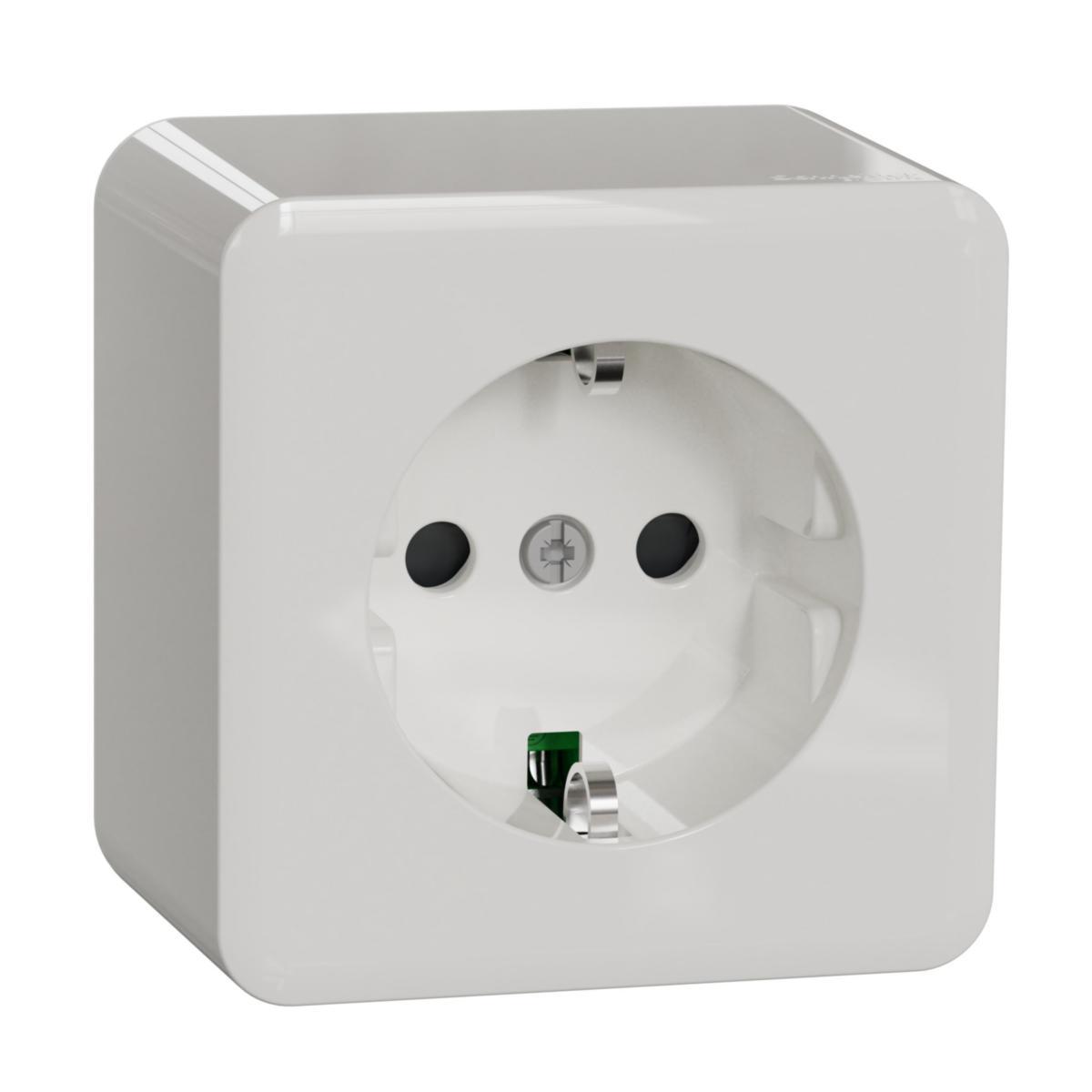

Wall socket Exxact surface-mounted screw connection

SINGLE SO EARTHED SCREW WDE015676
Article number:
1820295
Suppl. article no:
WDE015676
‌
‌
‌
‌
‌
 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Wall socket for surface installation with integrated base plate. 16AX, 250V, grounded, socket protected. Screw connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below.
  • Article number:
    1820295
  • Suppl. article no:
    WDE015676
  • Ean no:
    3606489504335
  • Material class
    QH1601
Technical data
  • Packagin Size: 1 ST/5 ST/5 ST/120 ST
  • Product series: Exxact
  • Number of socket outlets: 1
  • Number of socket outlets switchable: 0
  • Colour: White
  • RAL-number (similar): 9003
  • Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Connection type: Screwed terminal
  • Surface finishing: Glossy
  • Lockable: No
  • Device height: 65 mm
  • Device width: 65 mm
  • Type of fastening: Mounting with screw
  • Imprint/indication: None
  • With hinged lid: No
  • Rotated central insert: No
  • With function lighting: No
  • Mounting method: Surface mounted
  • Overvoltage protection: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • With on/off switch: No
  • With orientation lighting: No
  • Halogen free: Yes
  • Nominal current: 16 A
  • Nominal voltage: 250 V
  • Suitable for degree of protection (IP): IP20
  • Special power supply: No special power supply
  • Fault current protection: No
  • Frequency: 50 Hz
  • For heavy conditions according to VDE: No
  • With miniature fuse: No
  • Eject-mechanism: No
  • Surface protection: Untreated
  • Label space/information surface: No
  • With loop through function: No
  • Anti-bacterial treatment: No
  • With signal lamp: No
  • Min. depth of built-in installation box: 0 mm
  • With built-in USB power supply: No
  • Number of active contacts (flat): 0
  • Number of active contacts (round): 0
  • Transparent: No
  • REACH Date: 2022-07-20
  • Protective earth pin round: No
  • Protective contact: Yes
  • REACH Information obligation: No
