Schneider Electric

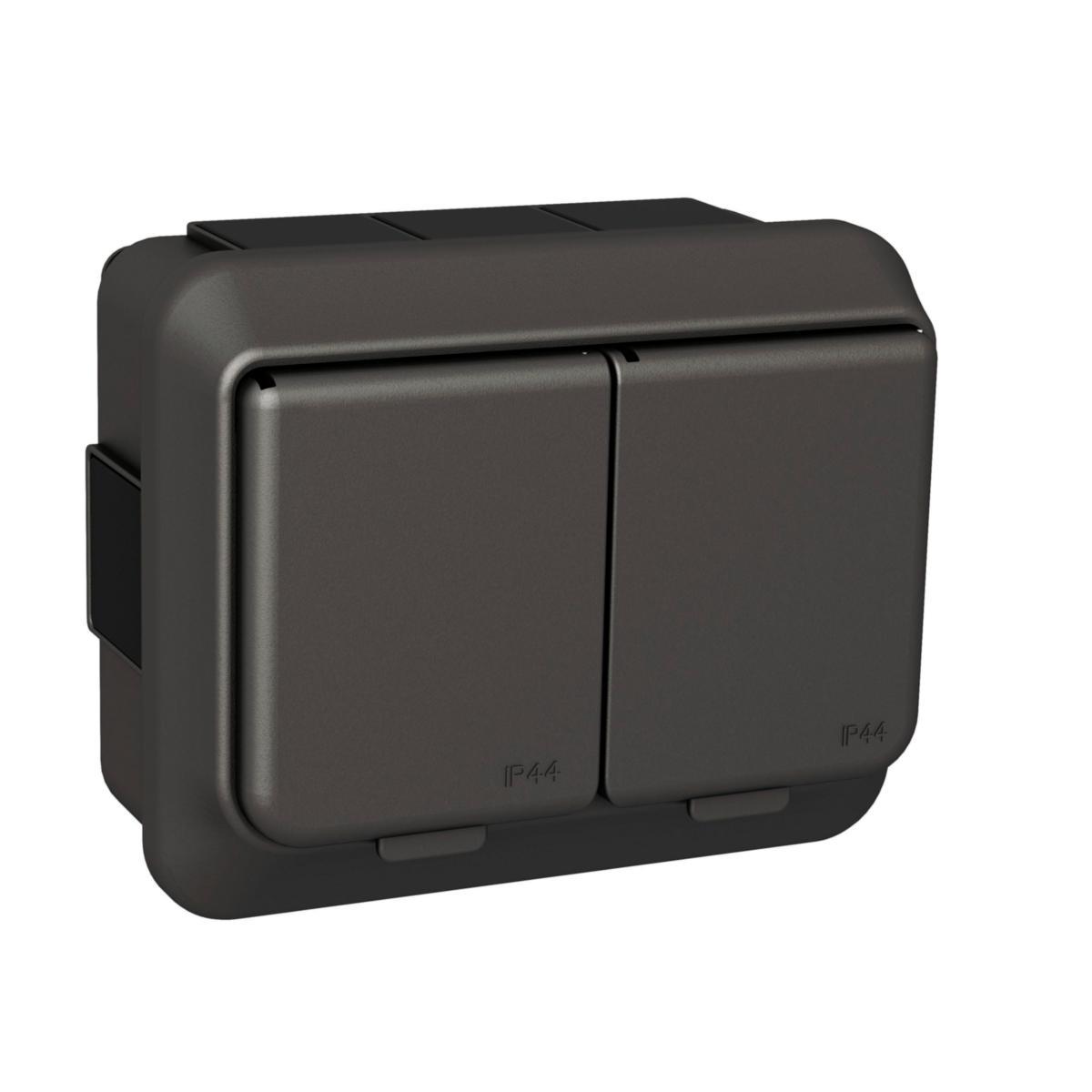

Wall socket 2-way socket surface-mounted with flip lid IP44
DSO WITH LID SURFACE IP44 A WDE003292
Article number: Suppl. article no:
1820009
WDE003292
to see price and stock
2-way outlet surface-mounted with tilting cover, earthed, the outlet has two neutral transfer clamps. Comes complete with surface-mounted box.
- Article number: 1820009
- Suppl. article no: WDE003292
- Ean no: 3606480554230
- Material class QH1661
Technical data
- Packagin Size: 1 ST/5 ST
- Type: WDE003292
- Product series: Exxact
- Number of socket outlets: 2
- Number of socket outlets switchable: 0
- Colour: Anthracite
- RAL-number (similar): 0
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Connection type: Push-in clamp
- Surface finishing: Matt
- Type of fastening: Mounting with screw
- Lockable: No
- Device height: 82 mm
- Device width: 100 mm
- Device depth: 53 mm
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- Rated fault current: 0 mA
- Mounting method: Surface mounted
- Over voltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Lacquered
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: Yes
- With built-in USB power supply: No
- Number of modules (module system): 0
- Transparent: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
