ABB

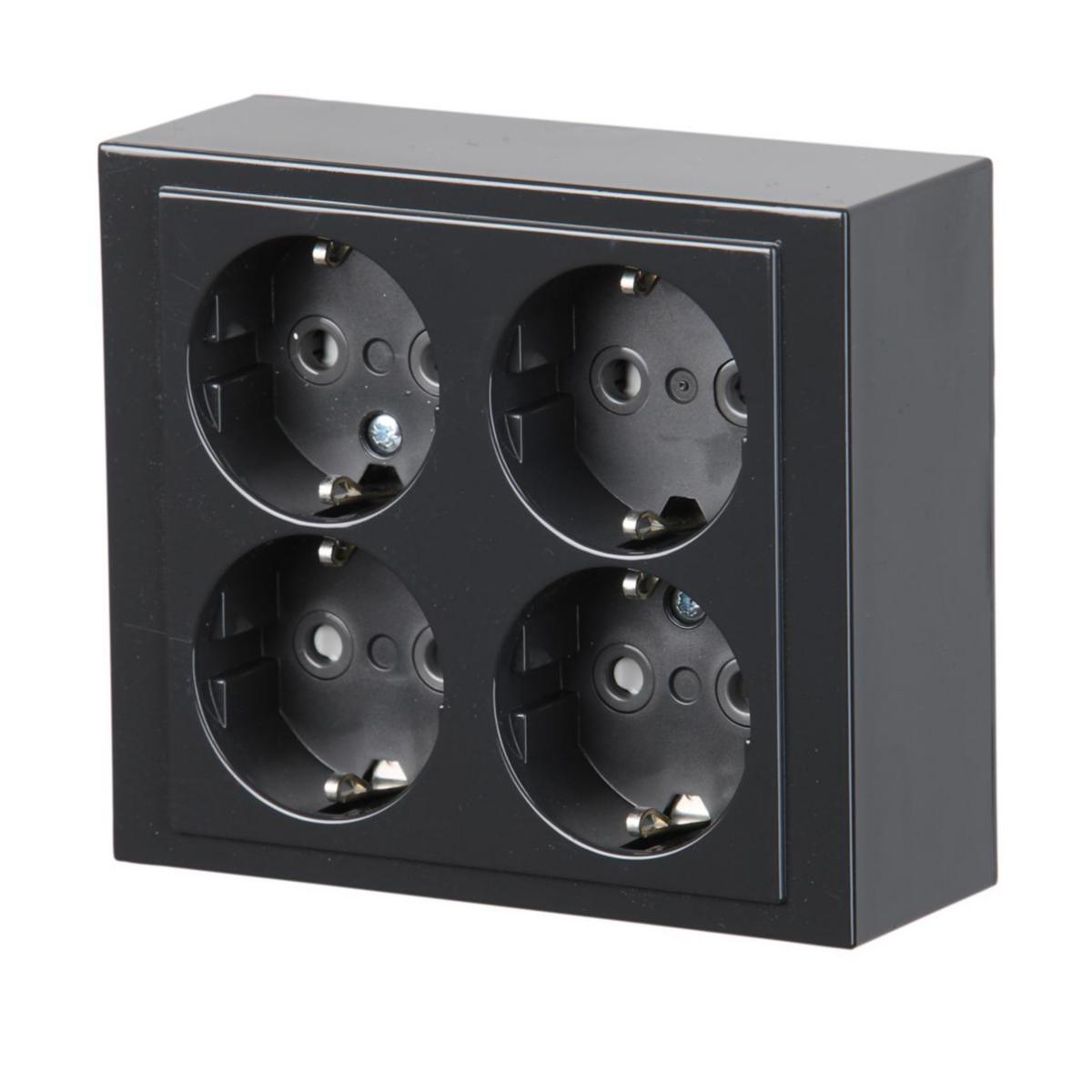

4-way wall socket, ground Impressivo. ABB
SCHUKO OUTLET 4-WAY ANTH IMPRESSIVO SURFACE MOUNTED
Article number: Suppl. article no:
1816123
2TKA00001614
to see price and stock
To shop with us, you need a registered company and a customer number.
Complete Impressivo 4-way socket with quick connector. The socket consists of two 2-way sockets that are connected internally. The wall socket has no X terminal blocks.
- Article number: 1816123
- Suppl. article no: 2TKA00001614
- Ean no: 6438199003351
- Material class QH6000
Technical data
- Type: 404EA-81
- Product series: Impressivo
- Number of units: 4
- Colour: Anthracite
- Surface finishing: Glossy
- RAL-number (similar): 7021
- Model: Socket outlet CEE 7/3 (type F)
- Protective contact: Earthing clips
- Connection type: Push-in clamp
- Number of phases: 1
- Type of fastening: Mounting with screw
- Device height: 100 mm
- Device width: 115 mm
- Device depth: 42 mm
- Lockable: No
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Surface mounted
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP21
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- With miniature fuse: No
- With enhanced contact protection: Yes
- Transparent: No
- Surface protection: Untreated
- Label space/information surface: No
- Impact strength: IK05
- With loop through function: No
- Anti-bacterial treatment: No
- With signal lamp: No
- Cover: Complete housing
- REACH Date: 2021-04-30
- REACH Information obligation: No
