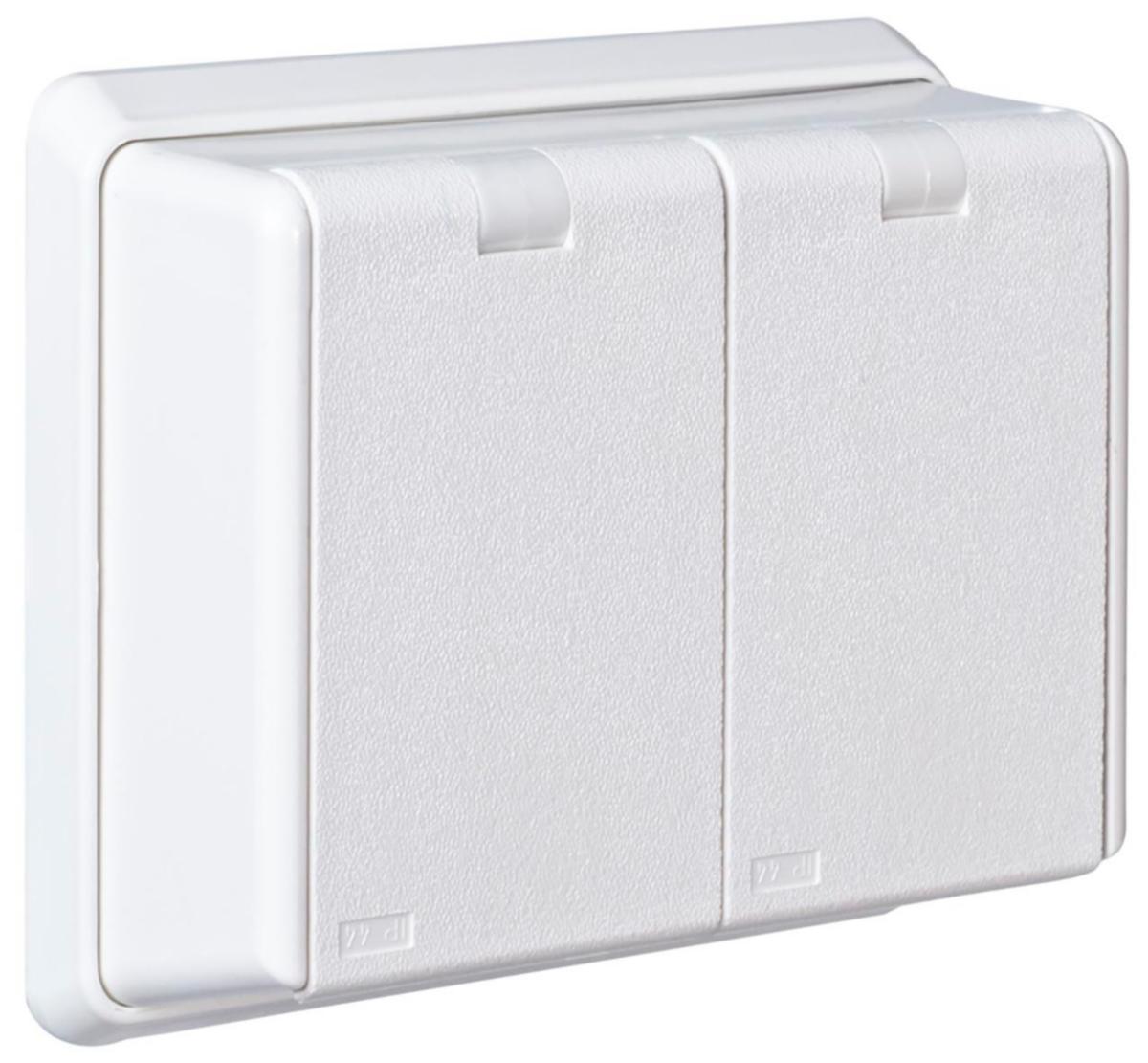

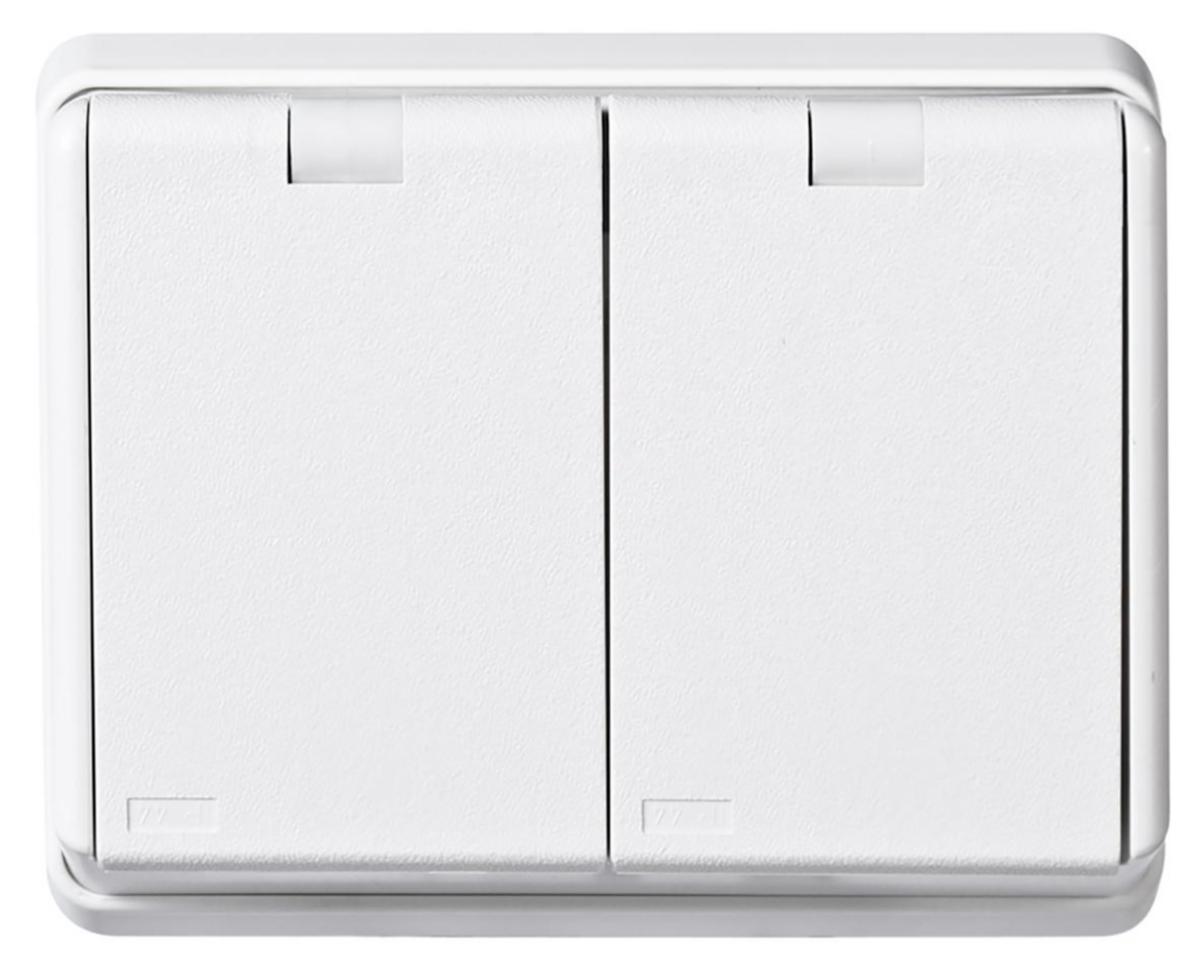

Wall socket 2-way flush IP44 with ground, Elko
1090UPT IF SOCKET OUTLET WT PW EKO07478
Article number: Suppl. article no:
1885705
EKO07478
to see price and stock
2-way outlet with cover, IP44, 16A 250V with screw connection, separate feed, recessed, and grounded. Disconnect with separate supply of sockets to control one or both sockets separately via power breakers, timer, or similar. 16A 250V, for partially recessed mounting. Made of halogen-free thermoplastic. With self-closing lid.
Screw connection for connectors. Dual connections per phase. Supplied with locking collar.
Screw connection for connectors. Dual connections per phase. Supplied with locking collar.
- Article number: 1885705
- Suppl. article no: EKO07478
- Ean no: 7020160747808
- Material class QH3600
Technical data
- Packagin Size: 1 PCS/5 PCS/5 PCS/25 PCS
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Number of socket outlets: 2
- Colour: White
- RAL-number (similar): 9003
- Connection type: Screwed terminal
- Type of fastening: Mounting with screw
- Lockable: No
- Device height: 84 mm
- Device width: 100 mm
- Device depth: 42 mm
- Surface finishing: Glossy
- With hinged lid: Yes
- With function lighting: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Transparent: No
- With built-in USB power supply: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
