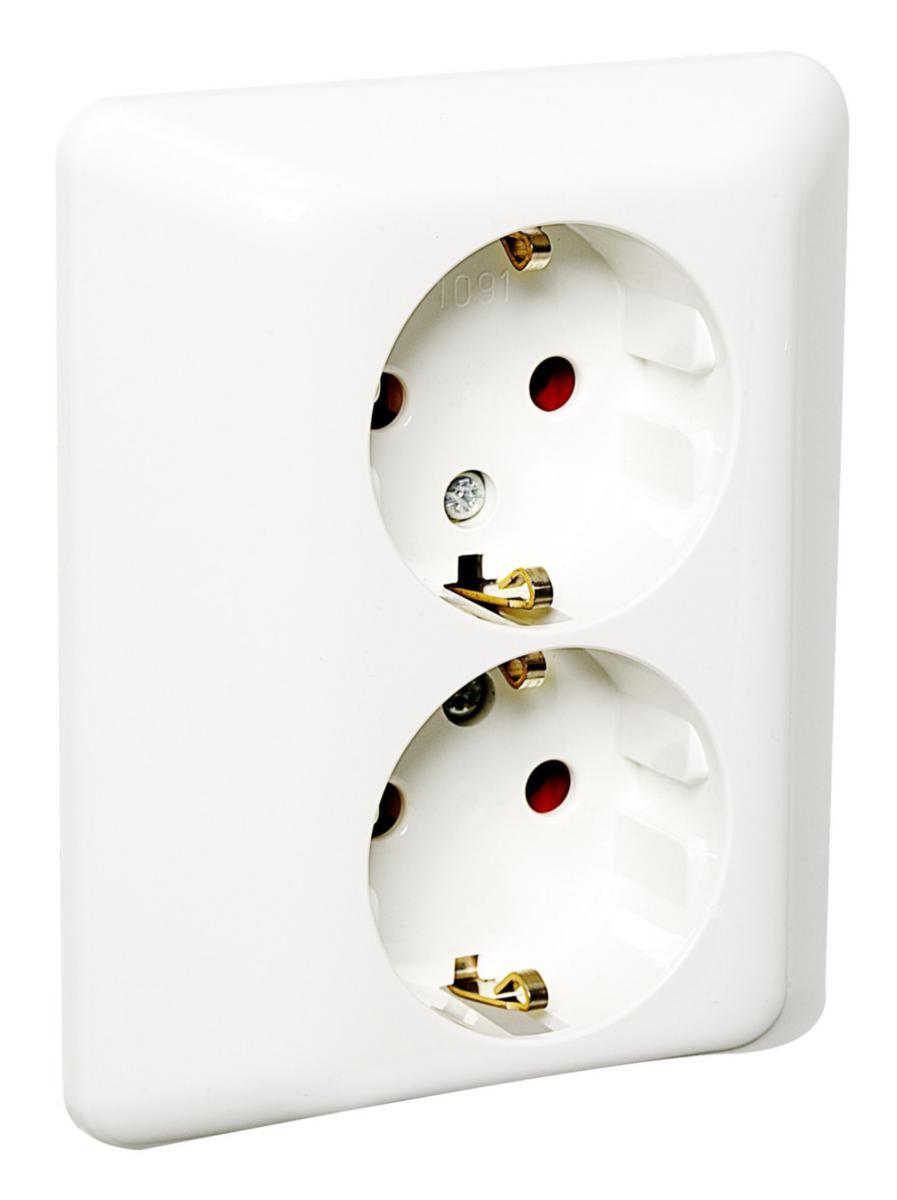

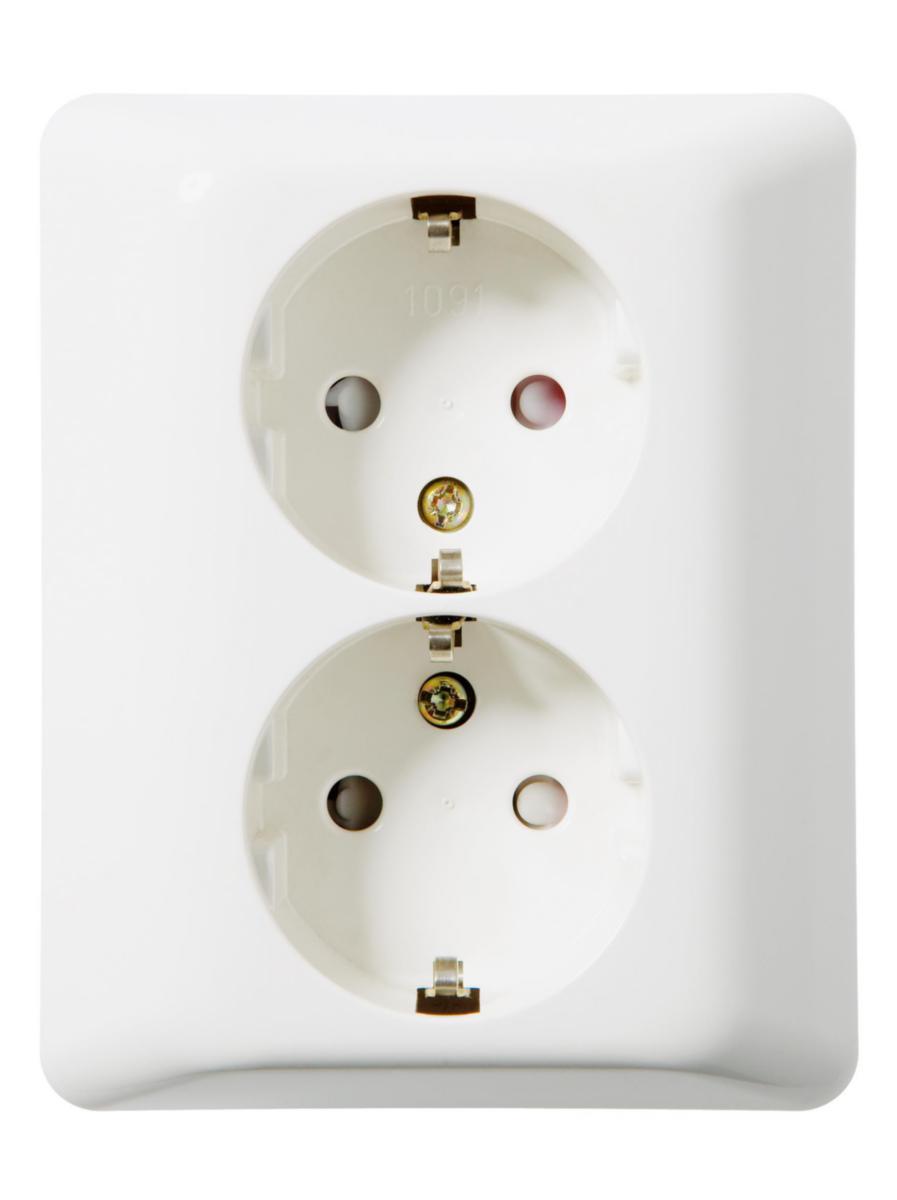

Wall socket 2-way grounded flush-mounted 16A, ELKO
RS1091PT"S"SOCKET OUTLET PW EKO30122
Article number: Suppl. article no:
1848686
EKO30122
to see price and stock
Wall socket “RS-SNABB" for recessed mounting, Socket and cover plate made of halogen-free thermoplastic.
- Article number: 1848686
- Suppl. article no: EKO30122
- Ean no: 7020161301221
- Material class QH3301
Technical data
- Packagin Size: 1 ST/5 ST/5 ST/50 ST
- Product series: RS
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Number of socket outlets: 2
- Number of socket outlets switchable: 2
- Colour: White
- RAL-number (similar): 9003
- Connection type: Screwed terminal
- Type of fastening: Mounting with claw and screw
- Device height: 104 mm
- Device width: 84 mm
- Device depth: 43 mm
- Lockable: No
- Surface finishing: Glossy
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- With built-in USB power supply: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Number of phases: 1
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 20 mm
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Number of active contacts (round): 2
- Number of modules (module system): 0
- Metallic colour: No
- Transparent: No
- REACH Date: 2022-08-09
- Protective earth pin round: No
- Protective contact: Yes
- REACH Information obligation: No
