Wall socket 1-way, Elko Plus

PLUS SINGLE OUTLET PW

Article number:

1848076

Suppl. article no:

EKO03775

‌
‌
‌

‌
‌

to see price and stock

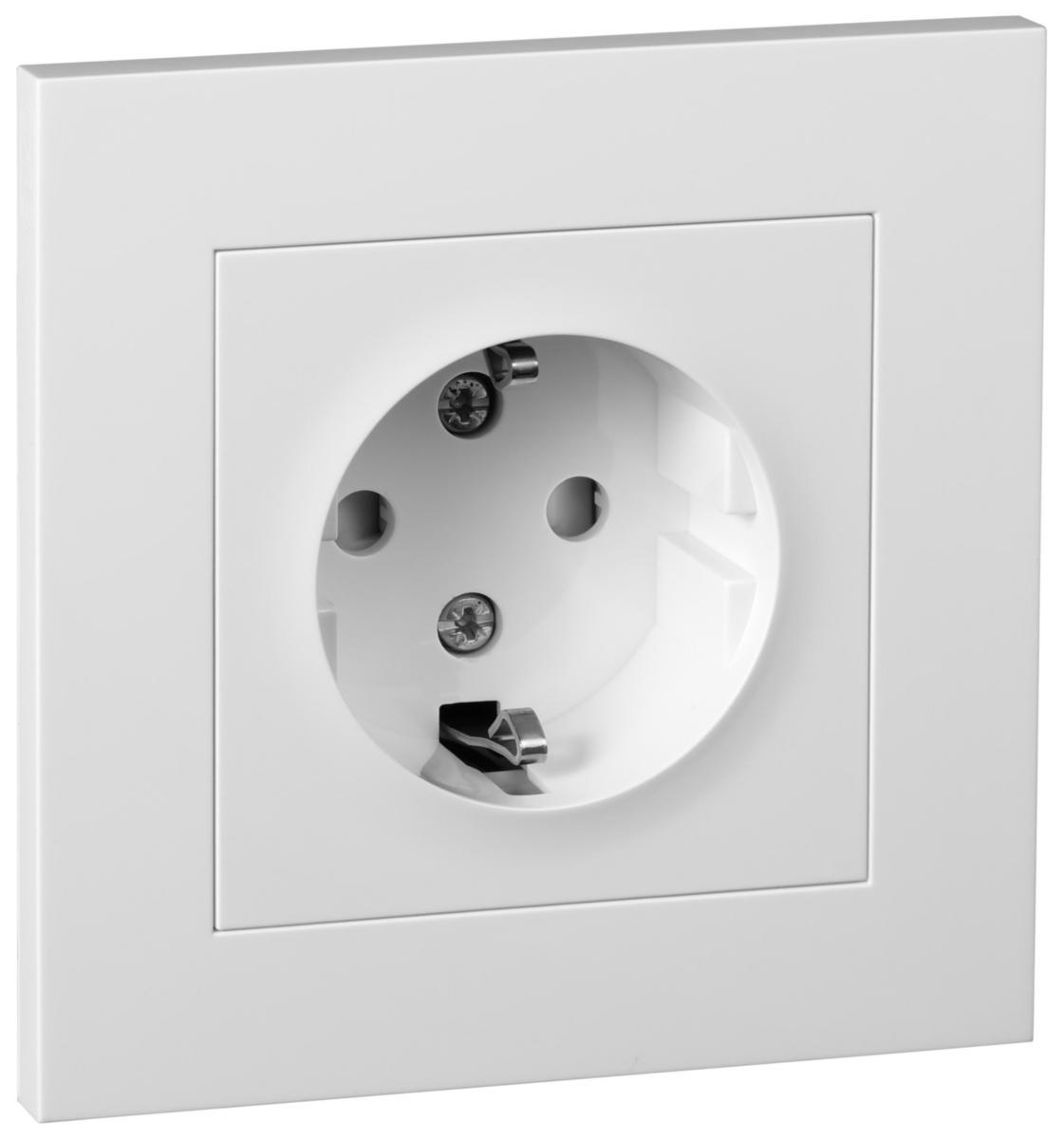

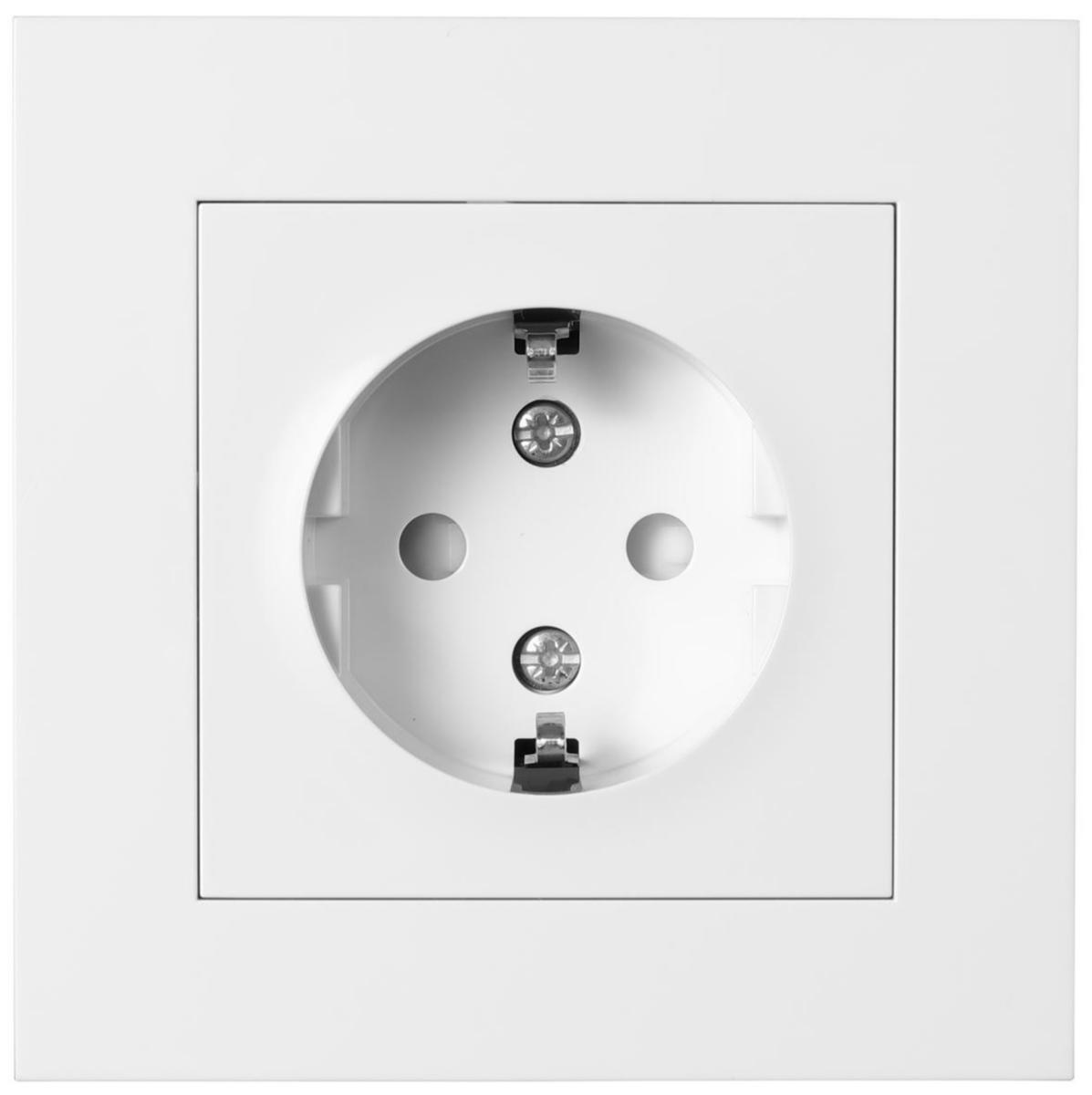

Wall socket “ELKO-Plus" for recessed mounting.
Socket, cover plate and frame made of halogen-free thermoplastic. Dual connections per phase. Safety output. Fixed screw distance, 60 mm. Supplied without fastening claws; supplement with 18 405 94 if needed. Assembly depth 31 mm.

Article number:
1848076
Copy to clipboard
Suppl. article no:
EKO03775
Copy to clipboard
Ean no:
7020160377500
Copy to clipboard
Material class
QH3800
Copy to clipboard

Technical data

Packagin Size: 1 PCS/5 PCS/50 PCS/1400 PCS
Product series: Elko Plus
Number of units: 1
Number of socket outlets switchable: 0
Colour: White
Surface finishing: Glossy
RAL-number (similar): 9010
Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
Connection type: Screwed terminal
Type of fastening: Mounting with screw
Device height: 86 mm
Device width: 86 mm
Device depth: 42.5 mm
Lockable: No
With hinged lid: No
Rotated central insert: Yes
With function lighting: No
Mounting method: Flush-mounted
Overvoltage protection: No
Material: Plastic
Material quality: Thermoplastic
With on/off switch: No
With orientation lighting: No
Halogen free: Yes
Nominal current: 16 A
Nominal voltage: 250 V
Suitable for degree of protection (IP): IP20
Special power supply: No special power supply
Fault current protection: No
Frequency: 50 Hz
For heavy conditions according to VDE: No
With miniature fuse: No
With enhanced contact protection: No
Transparent: No
Eject-mechanism: No
Surface protection: Untreated
Label space/information surface: No
With loop through function: Yes
Insulated mounting: No
Number of modules (module system): 0
With built-in USB power supply: No
Cover: Full cover plate
REACH Date: 2022-08-09
REACH Information obligation: No
