Elko
ÖÖ - Vägguttag 1-vägs infällda 16A, ELko
H1014 1-WAY OUTLET W COVER PW
Article number: Suppl. article no:
1841421
EKO06619
to see price and stock

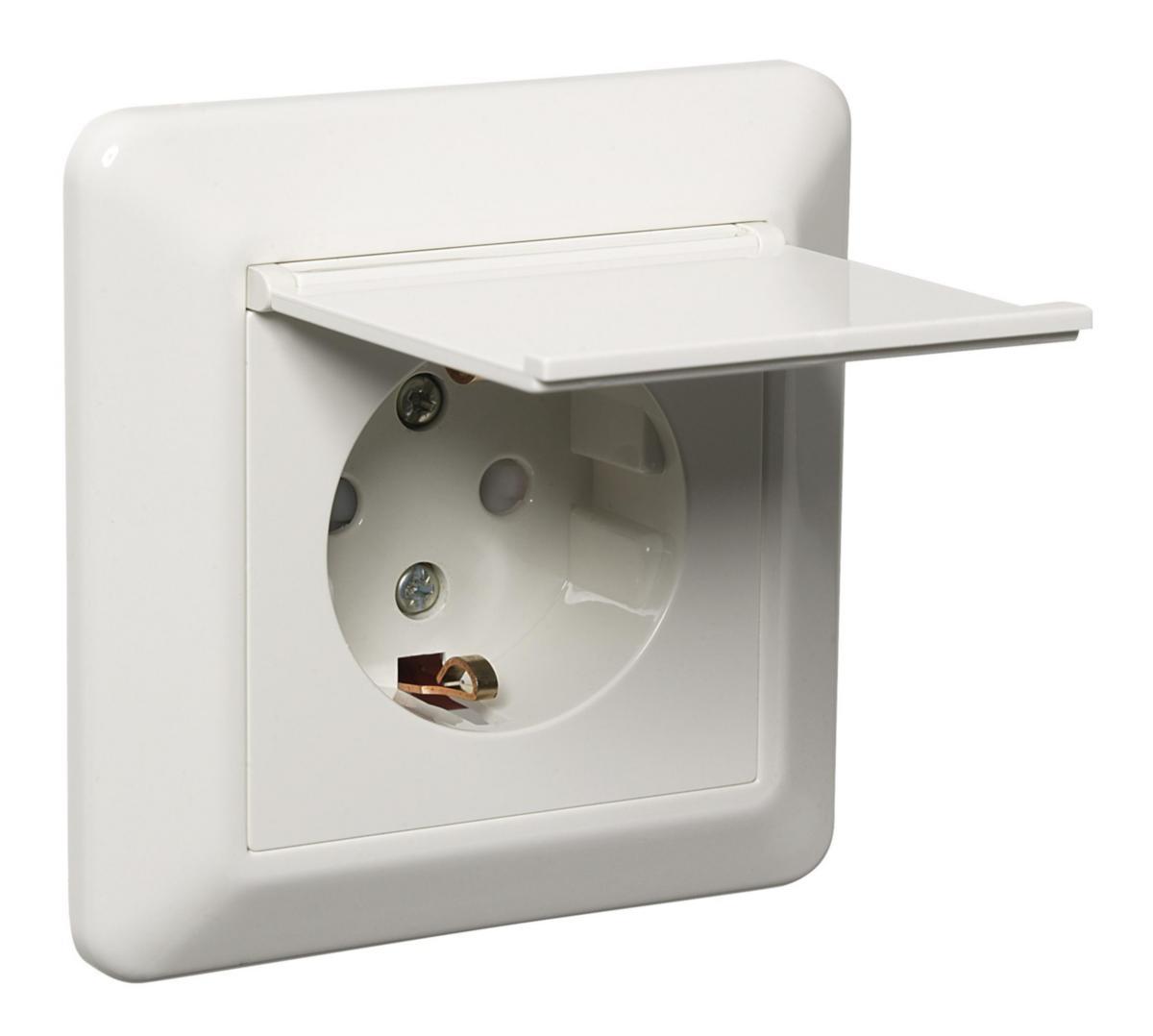

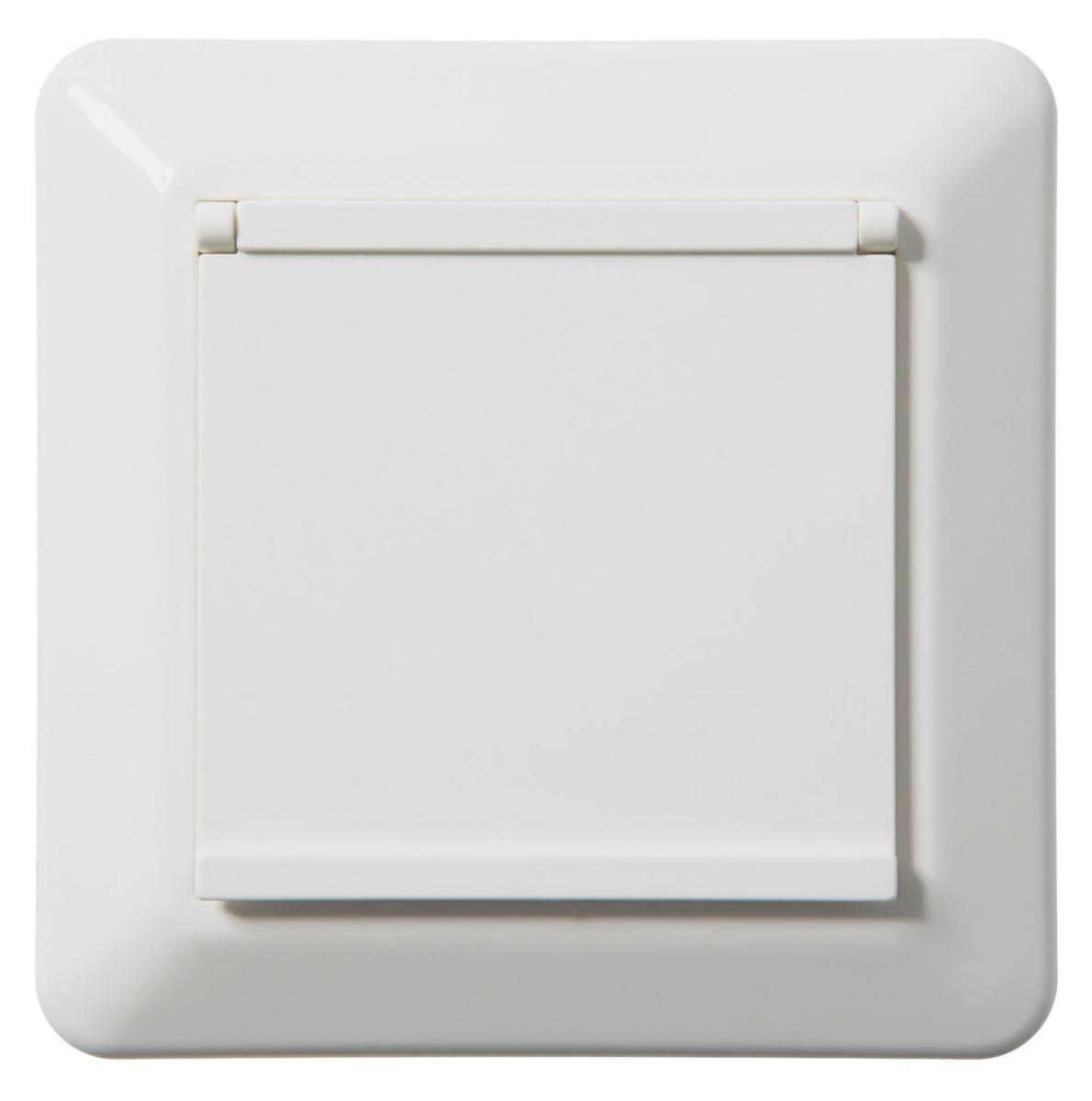

1-way wall socket “RS" for recessed mounting. Socket, cover plate and frame made of halogen-free thermoplastic. Dual connections per phase.
- Article number: 1841421
- Suppl. article no: EKO06619
- Ean no: 7020160661906
- Material class QH3200
Technical data
- Packagin Size: 1 ST/5 ST/5 ST/50 ST
- Type: EKO06619
- Product series: RS
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Number of socket outlets: 1
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9010
- Connection type: Push-in clamp
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 84 mm
- Device width: 84 mm
- Device depth: 42 mm
- Lockable: No
- Surface finishing: Glossy
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- With built-in USB power supply: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Transparent: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
