Wall socket flush-mounting IP44 Impressivo. ABB
SOCKET OUTL W/E IP44 WHT IMPR 20EUJW-84
Article number: Suppl. article no:
1815912
2TKA000698G1
to see price and stock

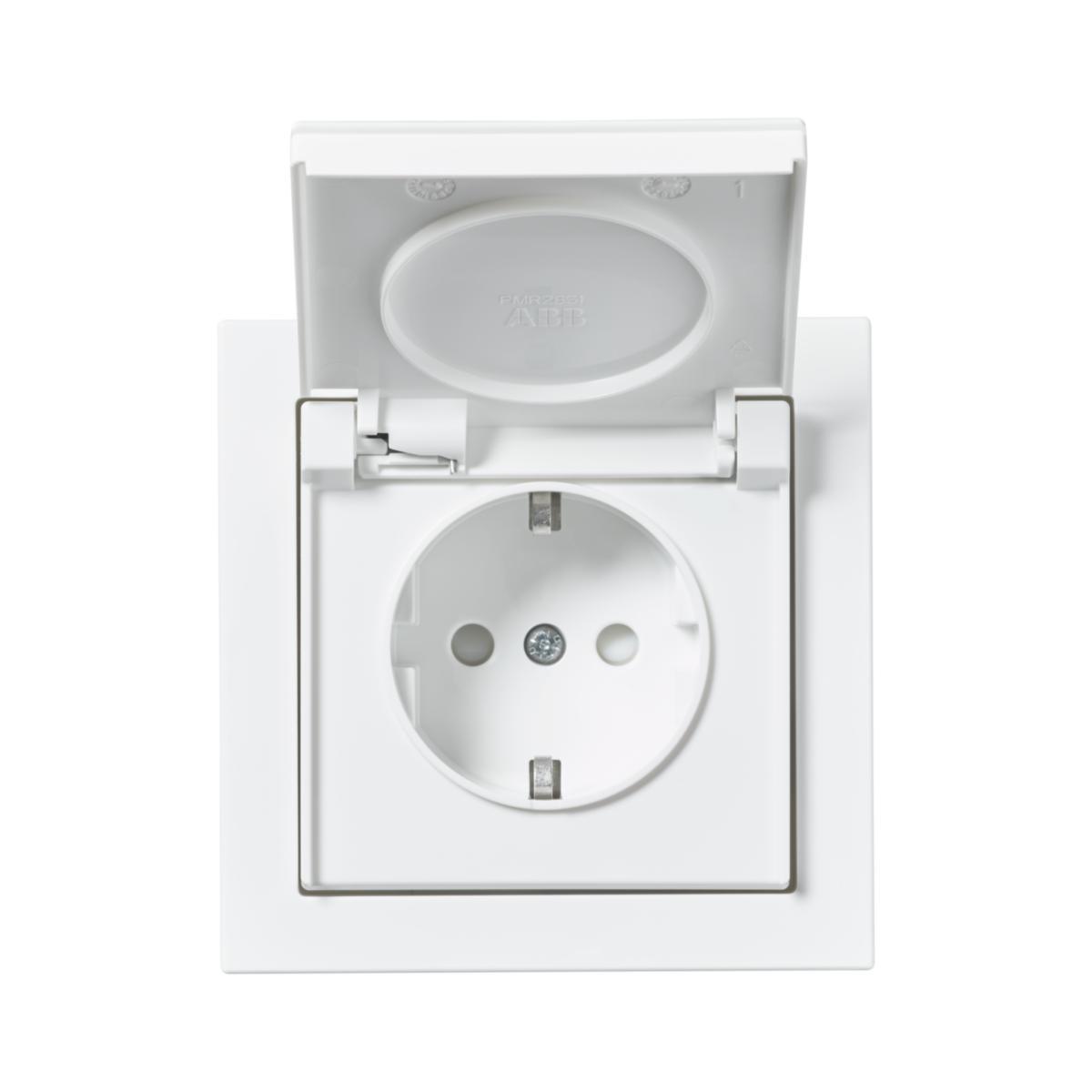

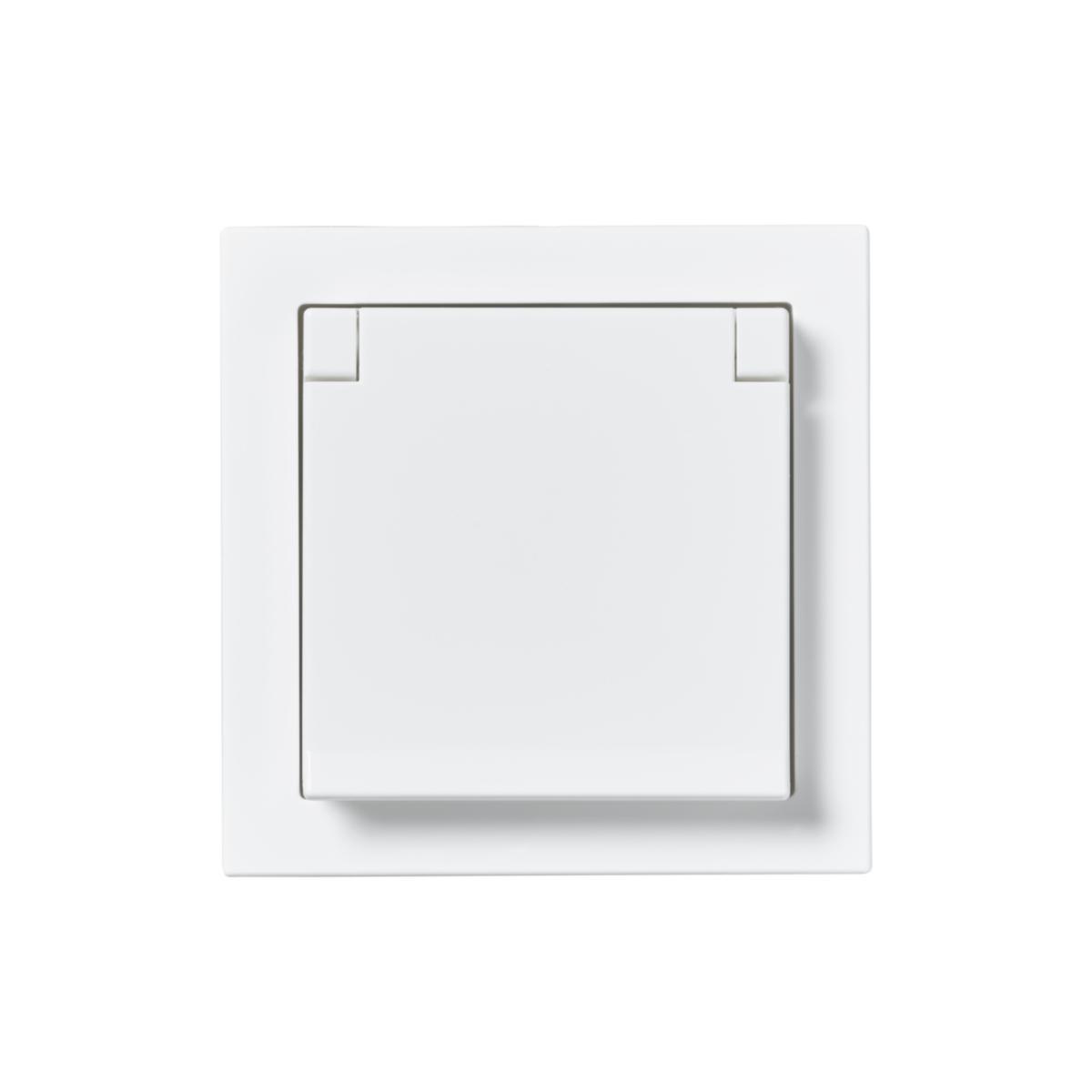

Wall socket recessed IP44 in Impressivo series with quick-release connector.
- Article number: 1815912
- Suppl. article no: 2TKA000698G1
- Ean no: 6438199000015
- Material class QH6000
Technical data
- Packagin Size: 1 PCS/10 PCS/10 PCS
- Type: 20EUJW-84
- Product series: Impressivo
- Number of units: 1
- Number of socket outlets switchable: 0
- Colour: White
- Surface finishing: Glossy
- RAL-number (similar): 9016
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Protective contact: Earthing clips
- Connection type: Push-in clamp
- Number of phases: 1
- Type of fastening: Mounting with screw
- Device height: 45 mm
- Device width: 85 mm
- Device depth: 85 mm
- Lockable: No
- With hinged lid: Yes
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP44
- Imprint/indication: None
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Transparent: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- Impact strength: IK05
- With loop through function: No
- Insulated mounting: No
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 28 mm
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Metallic colour: No
- Number of active contacts (round): 2
- REACH Date: 2021-04-30
- REACH Information obligation: No
